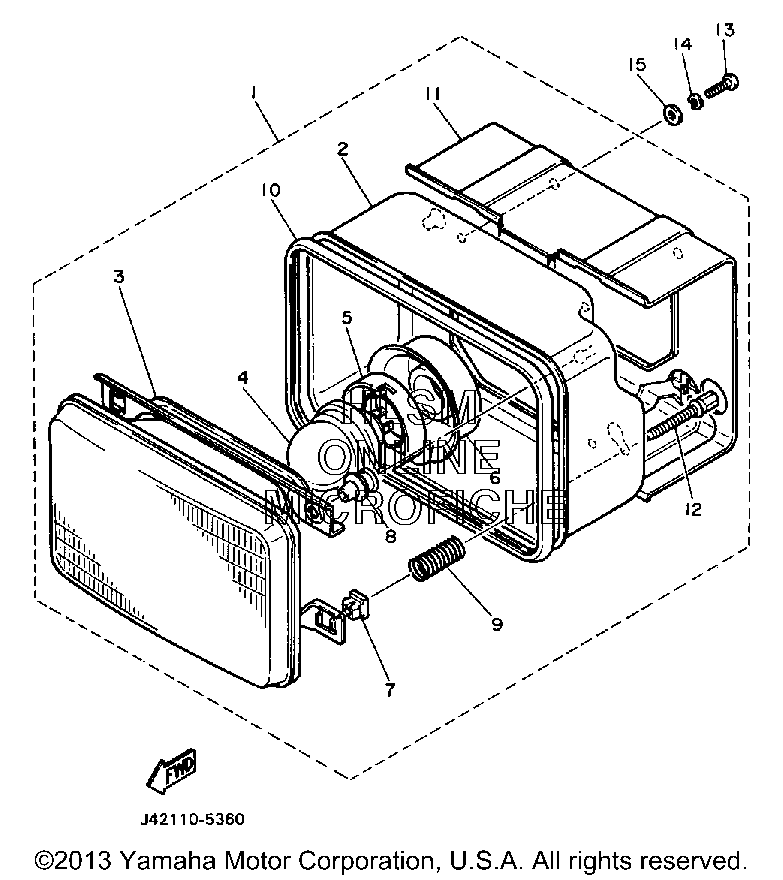

HEADLIGHT для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J42-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
2J42-84330-00-00 ...BODY ASSY...BODY ASSY
-
3J42-84320-00-00 ...LENS ASSY...LENS ASSY
-
41U4-84314-40-XX ...BULB, HEAD LIGHT (12V-45/40W)...BULB, HEAD LIGHT (12V-45/40W)
-
5341-84393-40-00 ...HOLDER, BULB...HOLDER, BULB
-
646X-84396-00-00 ...COVER...COVER
-
751L-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
851L-8431U-00-00 ...HOLDER...HOLDER
-
951L-84332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
10J42-84343-00-00 MOLE, HEADLIGHTMOLE, HEADLIGHT
-
11J42-84318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
12J42-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
1398580-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492990-05100-00 WASHER, SPRINGWASHER, SPRING
-
1590201-05029-00 WASHER, PLATEWASHER, PLATE
