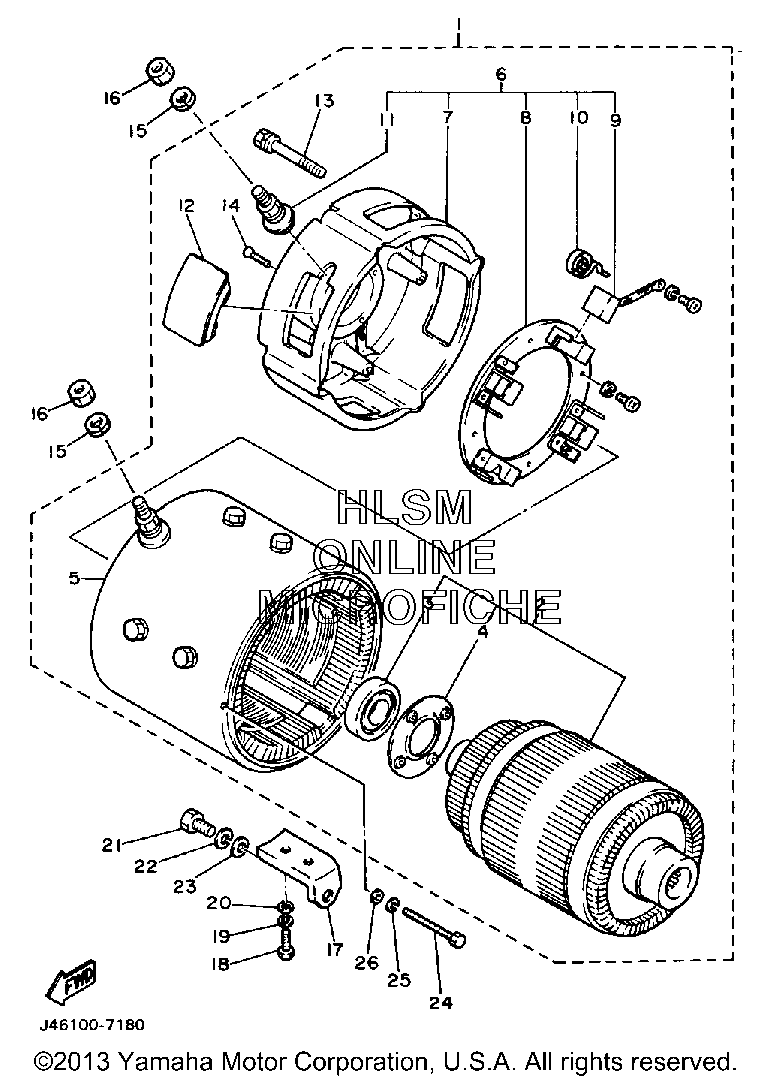

STARTING MOTOR для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J46-81890-10-00 TRACTION MOTORTRACTION MOTOR
-
2J46-81850-10-00 ...ARMATURE ASSEMBLY...ARMATURE ASSEMBLY
-
3J14-81857-10-00 ......BEARING......BEARING
-
4J14-81856-10-00 ......RETAINER......RETAINER
-
5J46-81810-10-00 STATOR ASSEMBLYSTATOR ASSEMBLY
-
6J46-81820-10-00 ...REAR BRACKET ASSEMBLY...REAR BRACKET ASSEMBLY
-
7J46-81822-10-00 ......BRACKET, STARTING MOTOR......BRACKET, STARTING MOTOR
-
8J46-81840-10-00 ......BRUSH HOLDER ASSEMBLY......BRUSH HOLDER ASSEMBLY
-
9J14-81811-10-00 ......BRUSH 1......BRUSH 1
-
10J46-81813-10-00 ......SPRING, BRUSH......SPRING, BRUSH
-
11J46-81826-10-00 ......BOLT......BOLT
-
12J14-81842-10-00 ...COVER...COVER
-
13J14-81828-10-00 ...BOLT 2...BOLT 2
-
1498701-05025-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
1592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1695333-08600-00 NUTNUT
-
17J14-81823-01-00 STAY, STARTING MOTOR (J14-81823-00-00)STAY, STARTING MOTOR (J14-81823-00-00)
-
1897011-06016-00 BOLTBOLT
-
1992995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2092990-06600-00 WASHER, PLATEWASHER, PLATE
-
2197011-08016-00 BOLTBOLT
-
2292990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2392990-08600-00 WASHER, PLATEWASHER, PLATE
-
2497313-06055-00 BOLT, HEXAGON (97322-06055-00)BOLT, HEXAGON (97322-06055-00)
-
2592995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2690201-06643-00 WASHER, PLATEWASHER, PLATE
