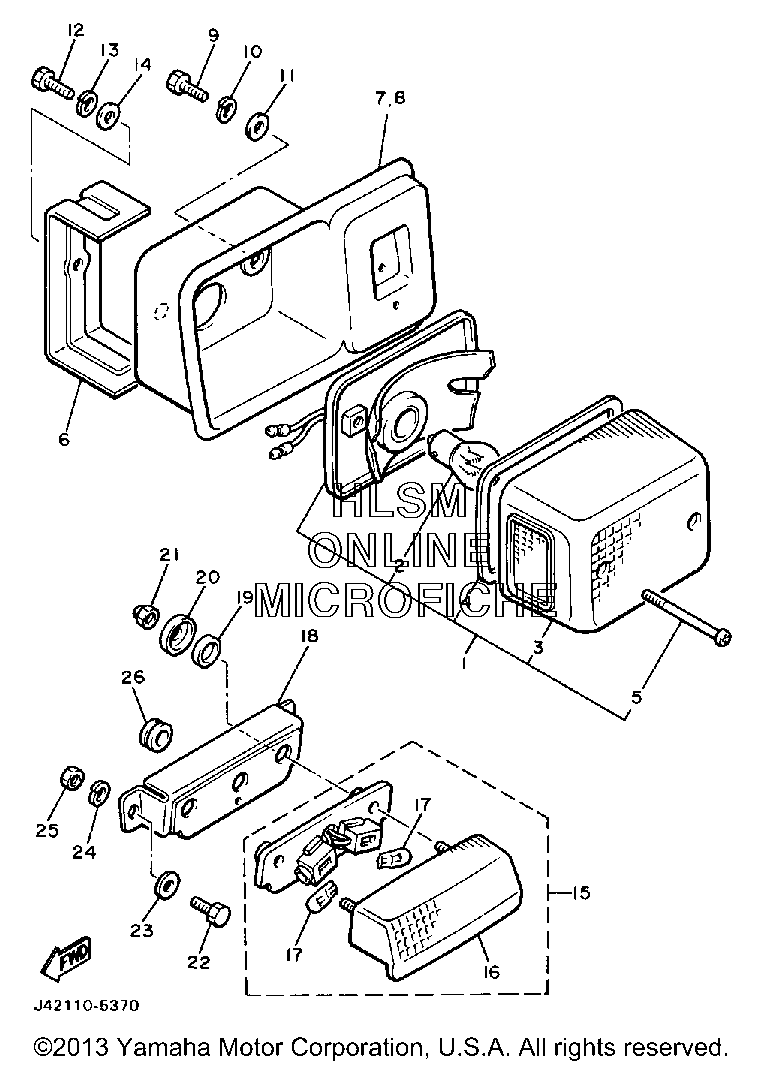

TAILLIGHT для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
113W-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
31M8-84521-40-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
41M1-84523-60-00 ...GASKET, LENS...GASKET, LENS
-
51M1-84524-60-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
6J42-84702-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
7J42-84716-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
8J42-84716-50-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
997313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1192990-06600-00 WASHER, PLATEWASHER, PLATE
-
1297011-06025-00 BOLT (97001-06025-00)BOLT (97001-06025-00)
-
1392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1492990-06600-00 WASHER, PLATEWASHER, PLATE
-
152AX-84745-00-00 LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)
-
164H3-84749-00-00 ...BODY, LICENSE LIGHT...BODY, LICENSE LIGHT
-
173F9-84744-00-XX ...BULB, METER 12V3.8W...BULB, METER 12V3.8W
-
18J42-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
193G1-84553-00-00 DAMPERDAMPER
-
203F9-84754-00-00 WASHER, SPECIALWASHER, SPECIAL
-
2195701-05300-00 NUT, NYLONNUT, NYLON
-
2297016-06016-00 BOLTBOLT
-
2392990-06200-00 WASHER, PLAINWASHER, PLAIN
-
2492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2595380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
2690480-16422-00 GROMMETGROMMET
