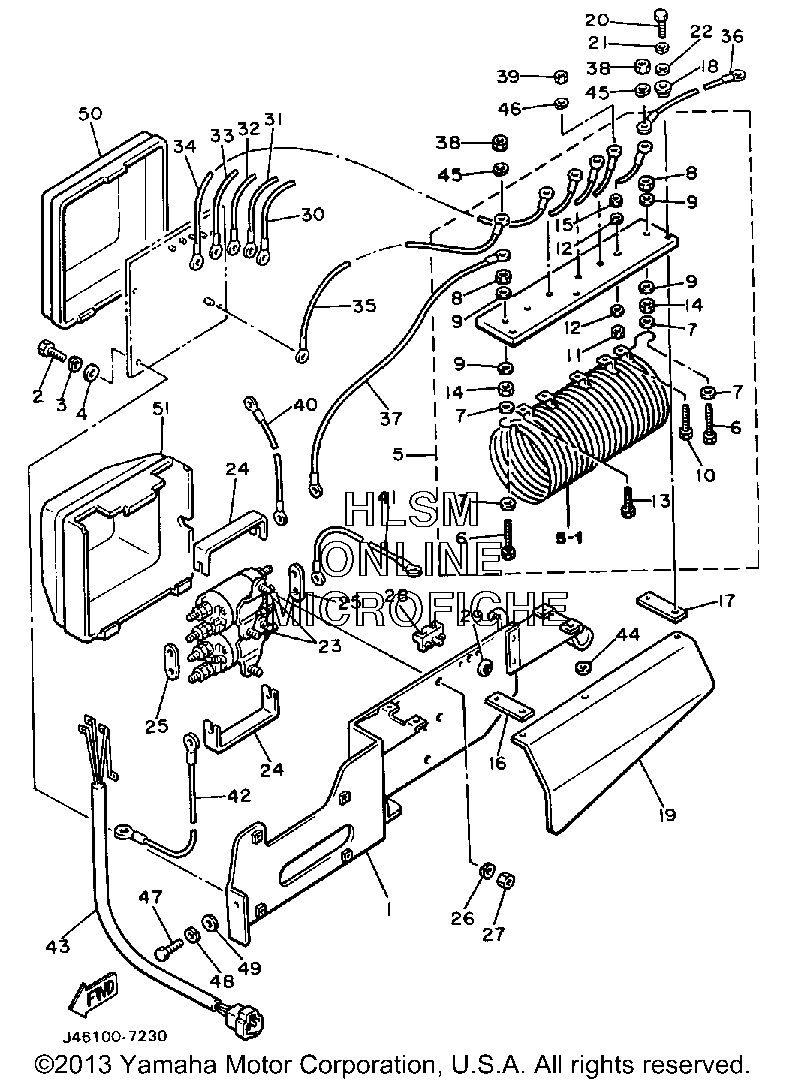

CONTROLLER 2 для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J46-86141-00-00 PLATE, CONTROLLERPLATE, CONTROLLER
-
297011-06025-00 BOLT (97001-06025-00)BOLT (97001-06025-00)
-
392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
492990-06600-00 WASHER, PLATEWASHER, PLATE
-
5J51-85370-00-00 RESISTORRESISTOR
-
690101-08470-00 ...BOLT...BOLT
-
790201-083F1-00 ...WASHER, PLATE...WASHER, PLATE
-
895303-08700-00 ...NUT...NUT
-
992990-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
1090101-06469-00 ...BOLT...BOLT
-
1195380-06700-00 ...NUT...NUT
-
1292990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1397011-06025-00 ...BOLT (97001-06025-00)...BOLT (97001-06025-00)
-
1495320-08700-00 ...NUT...NUT
-
1595320-06600-00 ...NUT...NUT
-
16J46-8257L-00-00 PLATE, INSULATORPLATE, INSULATOR
-
17J46-8250X-00-00 PLATE, INSULATORPLATE, INSULATOR
-
18J46-8253E-00-00 INSULATOR 1INSULATOR 1
-
19J14-85379-00-00 COVER, RESISTORCOVER, RESISTOR
-
2097011-06025-00 BOLT (97001-06025-00)BOLT (97001-06025-00)
-
2192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2292990-06600-00 WASHER, PLATEWASHER, PLATE
-
23J46-81950-00-00 RELAY ASSEMBLYRELAY ASSEMBLY
-
24J46-86126-00-00 PLATE, CONNECTING 1PLATE, CONNECTING 1
-
25J46-86127-00-00 PLATE, CONNECTING 2PLATE, CONNECTING 2
-
2692990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2795303-08700-00 NUTNUT
-
28J22-86159-00-00 HOLDER, WIREHOLDER, WIRE
-
29J22-86143-00-00 NUT, SPECIALNUT, SPECIAL
-
30J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
31J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
32J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
33J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
34J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
35J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
36J56-H2117-00-00 WIRE, LEADWIRE, LEAD
-
37J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
3895303-08700-00 NUTNUT
-
3995303-08700-00 NUTNUT
-
40J22-82531-00-00 WIRE, LEADWIRE, LEAD
-
41J14-82531-00-00 WIRE, LEADWIRE, LEAD
-
42J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
43J46-86177-00-00 WIRE, LEAD 7WIRE, LEAD 7
-
44J46-8253F-00-00 INSULATOR 2INSULATOR 2
-
4592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4797011-08016-00 BOLTBOLT
-
4892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4992990-08600-00 WASHER, PLATEWASHER, PLATE
-
50J56-H6163-00-00 COVER, CONTROLLERCOVER, CONTROLLER
-
51J46-81942-00-00 COVERCOVER
