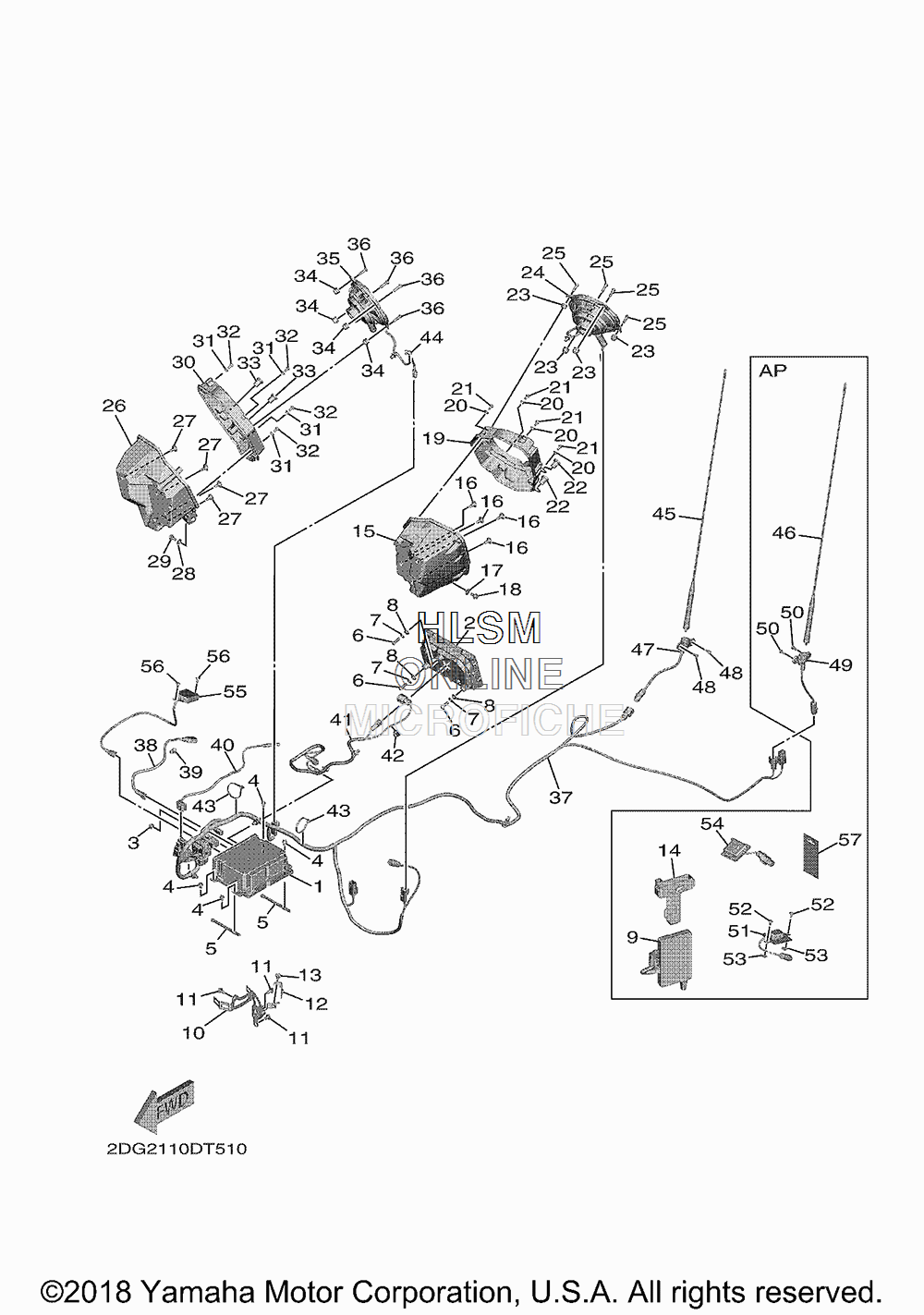

AUDIO EQUIPMENT для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-88132-00-00 AMP. POWERAMP. POWER
-
22DF-88101-00-00 CONT, LCDCONT, LCD
-
32DG-859C4-00-00 CAP, CONNECTORCAP, CONNECTOR
-
490110-05066-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52DF-28337-00-00 HOLDERHOLDER
-
692012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790201-06045-00 WASHER, PLATEWASHER, PLATE
-
890387-06184-00 COLLARCOLLAR
-
92DF-88182-00-00 BLACK BOX, CB (OPT)BLACK BOX, CB (OPT)
-
102DF-2138T-00-00 BRACKET, INNER 1BRACKET, INNER 1
-
1190105-06064-00 BOLT, FLANGEBOLT, FLANGE
-
122DF-2256L-00-00 BRACKETBRACKET
-
1390110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
142DF-21646-00-00 BAND (OPT)BAND (OPT)
-
152DF-88162-00-00 BOX, SPEAKER 1BOX, SPEAKER 1
-
1690109-06320-00 BOLTBOLT
-
1790387-06184-00 COLLARCOLLAR
-
1895D32-06014-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
192DF-8818B-00-00 COVER 1COVER 1
-
2090387-06255-00 COLLARCOLLAR
-
2190111-05048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290179-06524-00 NUTNUT
-
2390179-06520-00 NUTNUT
-
242DF-88161-00-00 SPEAKER 1SPEAKER 1
-
2592012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
262DF-88172-00-00 BOX, SPEAKER 2BOX, SPEAKER 2
-
2790109-06320-00 BOLTBOLT
-
2890387-06184-00 COLLARCOLLAR
-
2995D32-06014-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
302DF-8818C-00-00 COVER 2COVER 2
-
3190387-06255-00 COLLARCOLLAR
-
3290111-05048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390179-06524-00 NUTNUT
-
3490179-06520-00 NUTNUT
-
352DF-88161-00-00 SPEAKER 1SPEAKER 1
-
3692012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
372DG-88136-00-00 CORD, AMPCORD, AMP
-
382DF-821F1-00-00 LEAD, USB 1LEAD, USB 1
-
3990464-30011-00 CLAMPCLAMP
-
402DF-821G1-00-00 LEAD, AUXLEAD, AUX
-
412DF-82174-00-00 CORD ASSYCORD ASSY
-
4290464-54086-00 CLAMPCLAMP
-
4390464-15195-00 CLAMPCLAMP
-
4490464-16061-00 CLAMPCLAMP
-
452DF-88141-00-00 POLE, ANTENNAPOLE, ANTENNA
-
462DF-88143-00-00 POLE, ANTENNA (OPT)POLE, ANTENNA (OPT)
-
472DG-88144-00-00 BRACKET, ANTENNABRACKET, ANTENNA
-
4890110-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
492DG-88144-10-00 BRACKET, ANTENNA (OPT)BRACKET, ANTENNA (OPT)
-
5091312-05010-00 BOLT, HEXAGON SOCKET HEAD (OPT)BOLT, HEXAGON SOCKET HEAD (OPT)
-
512DF-881A1-00-00 ANTENNA, GPS (OPT)ANTENNA, GPS (OPT)
-
5297702-50012-00 SCREW, TAPPING (OPT)SCREW, TAPPING (OPT)
-
5390183-05042-00 NUT, SPRING (OPT)NUT, SPRING (OPT)
-
542DF-86269-00-00 ANTENNA COMP (OPT)ANTENNA COMP (OPT)
-
552DF-881A2-00-00 ANTENNA, BLUETOOTHANTENNA, BLUETOOTH
-
5697702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
572DF-881C1-00-00 NAVIGATION TICKET (OPT)NAVIGATION TICKET (OPT)
