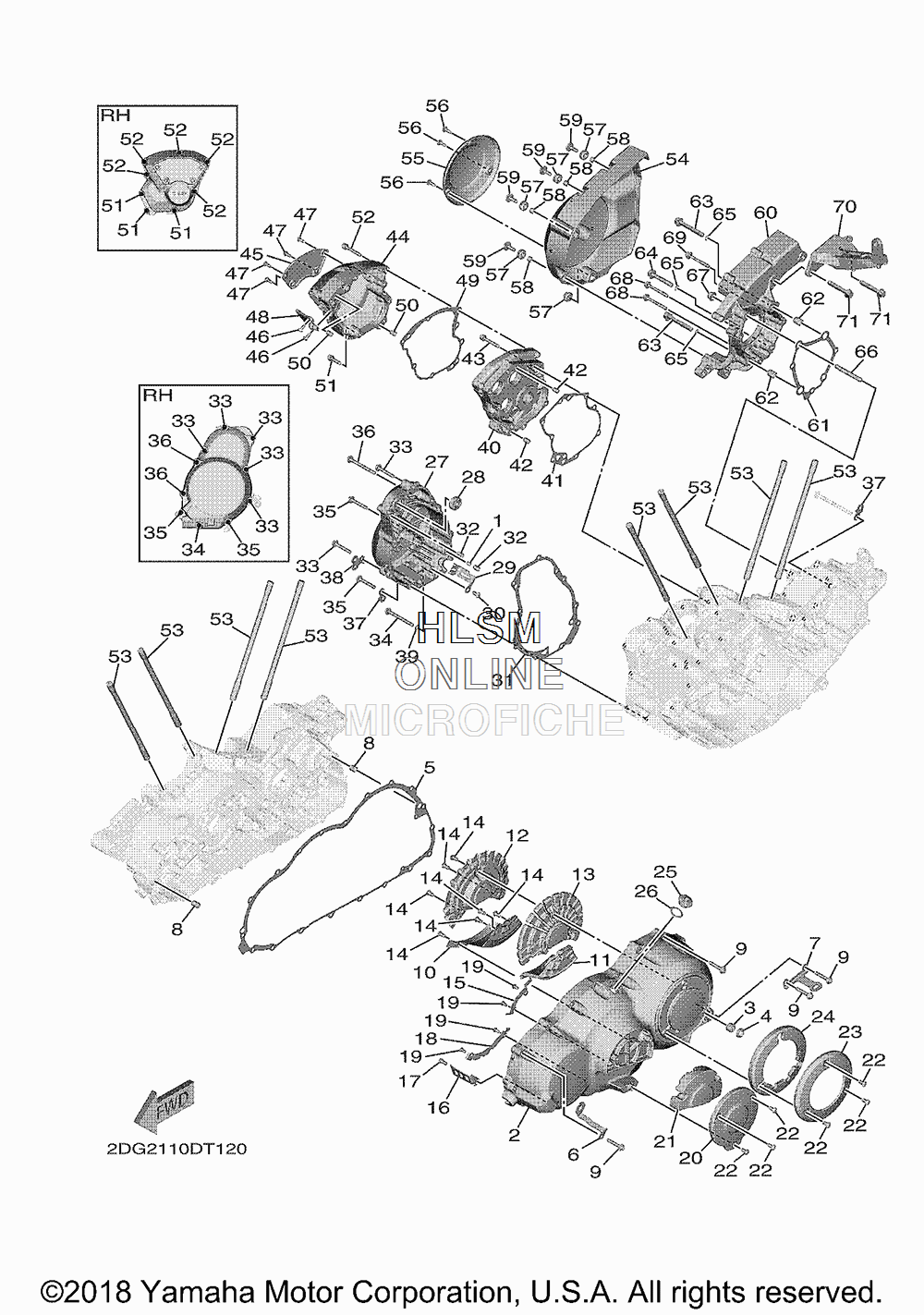

CRANKCASE COVER для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-15148-00-00 NOZZLE 2NOZZLE 2
-
22DG-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
393317-11295-00 BEARINGBEARING
-
493102-12224-00 OIL SEALOIL SEAL
-
52DF-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
62DF-1546D-00-00 HOLDER, 2HOLDER, 2
-
72DF-15759-00-00 CLIP, GUIDECLIP, GUIDE
-
899530-10114-00 PIN, DOWELPIN, DOWEL
-
990110-06403-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
102DF-15113-00-00 PLATEPLATE
-
112DF-1542B-00-00 DAMPER 2DAMPER 2
-
122DF-15589-00-00 PLATEPLATE
-
132DF-1542A-00-00 DAMPER 1DAMPER 1
-
1490149-06158-00 SCREWSCREW
-
152DF-15142-00-00 GUIDE 1GUIDE 1
-
162DF-15484-00-00 CLAMP 2CLAMP 2
-
1790149-06069-00 SCREWSCREW
-
182DF-15143-00-00 GUIDEGUIDE
-
1990149-05029-00 SCREWSCREW
-
202DF-15425-10-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
212DF-15316-00-00 DAMPER 1DAMPER 1
-
2290149-06191-00 SCREWSCREW
-
232DF-15415-10-00 COVER, 1COVER, 1
-
242DF-1542C-00-00 DAMPER 3DAMPER 3
-
255PX-15189-00-00 PLUGPLUG
-
2693210-20003-00 O-RINGO-RING
-
272DF-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
2893306-00006-00 BEARINGBEARING
-
292DF-15377-00-00 GUIDE, INLETGUIDE, INLET
-
3090149-06158-00 SCREWSCREW
-
312DF-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3299530-08012-00 PIN, DOWELPIN, DOWEL
-
3390110-06418-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490110-06420-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590110-06417-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3690110-06419-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
372DF-15144-00-00 PLATE, LOCKPLATE, LOCK
-
382DF-1546C-00-00 HOLDERHOLDER
-
3990430-06014-00 GASKETGASKET
-
402DF-15430-00-00 CRANKCASE COVER ASSY 3CRANKCASE COVER ASSY 3
-
412DF-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4299530-08012-00 PIN, DOWELPIN, DOWEL
-
4390110-06423-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
442DF-15429-00-00 COVER, SHIFTERCOVER, SHIFTER
-
452DF-15427-10-00 COVER, CAP 2COVER, CAP 2
-
4690111-05053-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790111-05052-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
482DF-15499-00-00 PROTECTOR, COVERPROTECTOR, COVER
-
492DF-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
5099530-08012-00 PIN, DOWELPIN, DOWEL
-
5190110-06413-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5290110-06423-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5390116-12020-00 BOLT, STUDBOLT, STUD
-
542DF-15426-01-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
552DF-15779-10-00 COVERCOVER
-
5690169-05003-00 TAPPING SCREWTAPPING SCREW
-
5790480-13018-00 GROMMETGROMMET
-
5890387-0611W-00 COLLARCOLLAR
-
5990111-06130-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
602DG-1541A-00-00 STAY, CRANKCASE COVER 1STAY, CRANKCASE COVER 1
-
612DF-17929-00-00 GASKET 1GASKET 1
-
6299530-12016-00 PIN, DOWELPIN, DOWEL
-
6395812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
6495812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
6593210-07540-00 O-RINGO-RING
-
6690116-08089-00 BOLT, STUDBOLT, STUD
-
6790179-08045-00 NUTNUT
-
6895812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
6990105-06220-00 BOLT, FLANGEBOLT, FLANGE
-
702DG-15199-00-00 BRACKETBRACKET
-
7195812-08020-00 BOLT, FLANGEBOLT, FLANGE
