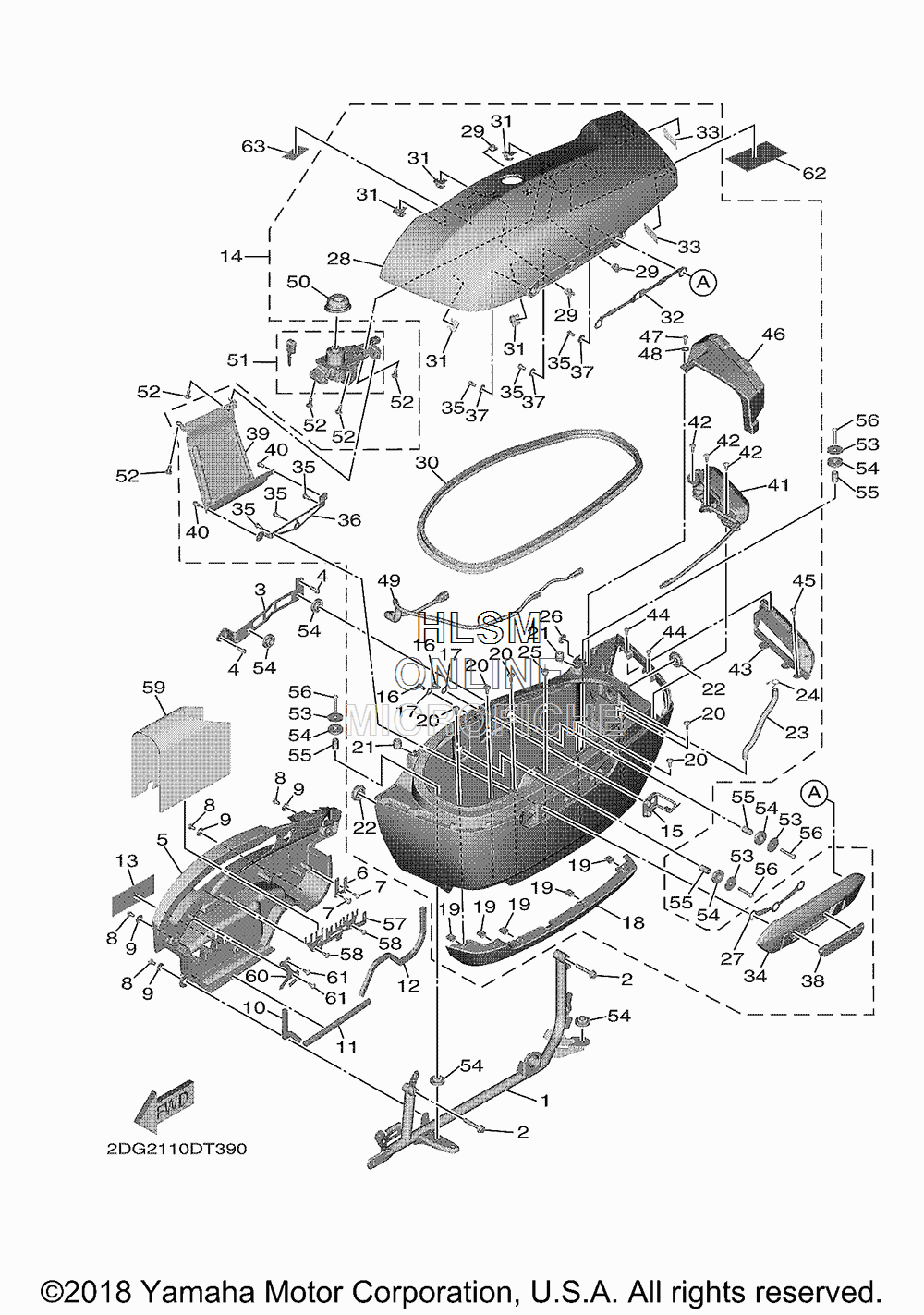

SADDLEBAGS - LEFT для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
295D32-08045-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
32DF-28413-00-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
495027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
52DF-2846T-00-00 COVER, SIDE BOX 1COVER, SIDE BOX 1
-
62DG-28426-00-00 BRACKET 1BRACKET 1
-
797702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
990387-06071-00 COLLARCOLLAR
-
102DF-28425-00-00 DAMPER 3DAMPER 3
-
1190520-08005-00 DAMPER, PLATEDAMPER, PLATE
-
122DF-28455-00-00 DAMPER, 4DAMPER, 4
-
134GY-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
142DF-28410-10-P0 SADDLEBAG ASSY., 1 (SMX - BLACK METALLIC)SADDLEBAG ASSY., 1 (SMX - BLACK METALLIC)
-
142DF-28410-00-P2 SADDLEBAG ASSY., 1 (VPBC5 - VIVID PURPLISH BLU)SADDLEBAG ASSY., 1 (VPBC5 - VIVID PURPLISH BLU)
-
152DF-28494-00-00 ...HOOK 3...HOOK 3
-
1692017-06014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1790201-06055-00 ...WASHER, PLATE...WASHER, PLATE
-
182DF-2843J-00-00 ...COVER 3...COVER 3
-
1990183-05073-00 ...NUT, SPRING...NUT, SPRING
-
2090111-05021-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
212DF-28415-00-00 ...DAMPER 1...DAMPER 1
-
222DF-2847F-00-00 ...SEAL 5...SEAL 5
-
2390445-123G4-00 ...HOSE (L170)...HOSE (L170)
-
2490467-12M11-00 ...CLIP...CLIP
-
2590338-10132-00 ...PLUG...PLUG
-
262DF-2846F-00-00 ...SEAL 4...SEAL 4
-
272DF-284BE-00-00 ...STAY, 7...STAY, 7
-
282DF-28448-00-P2 ...SADDLEBAG 3 (SMX - BLACK METALLIC)...SADDLEBAG 3 (SMX - BLACK METALLIC)
-
282DF-28448-00-P3 ...SADDLEBAG 3 (VPBC5 - VIVID PURPLISH BLU)...SADDLEBAG 3 (VPBC5 - VIVID PURPLISH BLU)
-
2990183-062A0-00 ...NUT, SPRING...NUT, SPRING
-
302DF-28429-00-00 ...SEAL 2...SEAL 2
-
312DF-81128-00-00 ...CLAMP...CLAMP
-
322DF-284BG-00-00 ...STAY, 9...STAY, 9
-
332DF-284BP-00-00 ...SEAL, 16...SEAL, 16
-
342DF-2843S-00-00 ...HINGE SUB-ASSY., 1 (VPBC5 - VIVID PURPLISH BLU)...HINGE SUB-ASSY., 1 (VPBC5 - VIVID PURPLISH BLU)
-
342DF-2843S-10-00 ...HINGE SUB-ASSY., 1 (SMX - BLACK METALLIC)...HINGE SUB-ASSY., 1 (SMX - BLACK METALLIC)
-
3590111-06102-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
362DF-2846M-00-00 ...BRACKET, HINGE...BRACKET, HINGE
-
3790201-06557-00 ...WASHER, PLATE...WASHER, PLATE
-
382DF-85130-00-00 ...REAR REFLECTOR ASSY...REAR REFLECTOR ASSY
-
392DF-2846K-00-00 ...COVER, HINGE 1...COVER, HINGE 1
-
4092017-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
412DF-83330-00-00 ...REAR FLASHER LIGHT ASSY 1...REAR FLASHER LIGHT ASSY 1
-
4297707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
432DF-833A1-00-00 ...GARNISH, FLASHER 1 (VPBC5 - VIVID PURPLISH BLU)...GARNISH, FLASHER 1 (VPBC5 - VIVID PURPLISH BLU)
-
432DF-833A1-10-00 ...GARNISH, FLASHER 1 (SMX - BLACK METALLIC)...GARNISH, FLASHER 1 (SMX - BLACK METALLIC)
-
4498907-05012-00 ...SCREW, BIND...SCREW, BIND
-
4597707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
462DF-2844B-00-00 ...LID 1...LID 1
-
4797707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
4890202-07015-00 ...WASHER, PLATE...WASHER, PLATE
-
492DF-86176-00-00 ...WIRE, LEAD...WIRE, LEAD
-
502DF-2845W-00-00 ...CAP,1...CAP,1
-
512DF-W2849-10-00 LOCK ASSYLOCK ASSY
-
5290111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5390201-065G8-00 WASHER, PLATEWASHER, PLATE
-
5490480-20447-00 GROMMETGROMMET
-
5590387-08111-00 COLLARCOLLAR
-
5692017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
572DF-2849V-00-00 PLATE, 11PLATE, 11
-
5897702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
592DF-82176-00-00 DAMPERDAMPER
-
602DF-2849W-00-00 PLATE, 12PLATE, 12
-
6197702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
624XY-28446-02-00 LABEL, CAUTIONLABEL, CAUTION
-
63BL3-21668-A0-00 LABEL, TIRELABEL, TIRE
