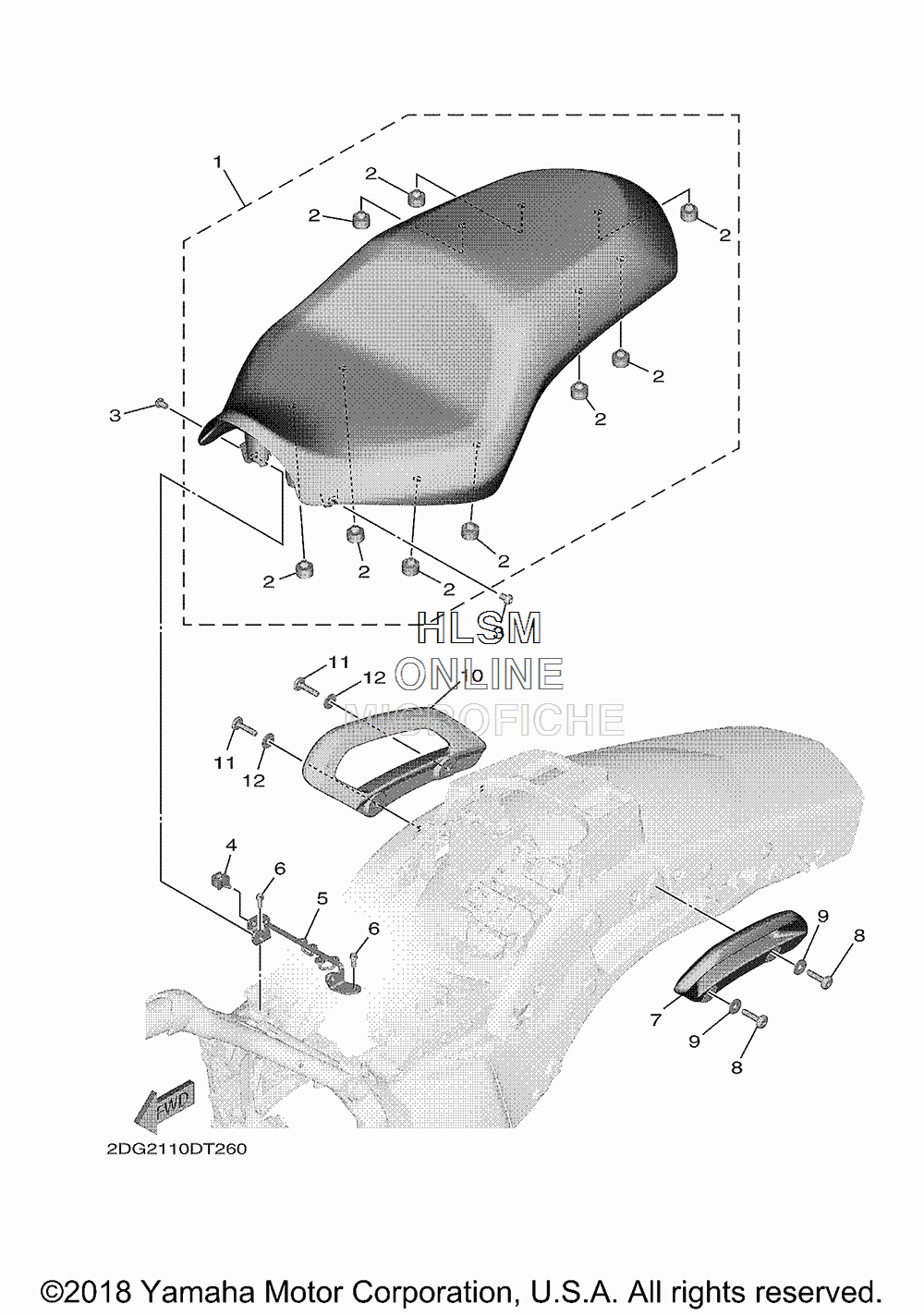

SEAT для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DG-F4730-10-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
22DF-F4723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
392017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490464-12M58-00 CLAMPCLAMP
-
52DF-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
690105-06100-00 BOLT, FLANGEBOLT, FLANGE
-
72DG-2474A-00-00 ASSIST, GRIPASSIST, GRIP
-
890109-08244-00 BOLTBOLT
-
990201-086A3-00 WASHER, PLATEWASHER, PLATE
-
102DG-2474W-00-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
1190109-08244-00 BOLTBOLT
-
1290201-086A3-00 WASHER, PLATEWASHER, PLATE
