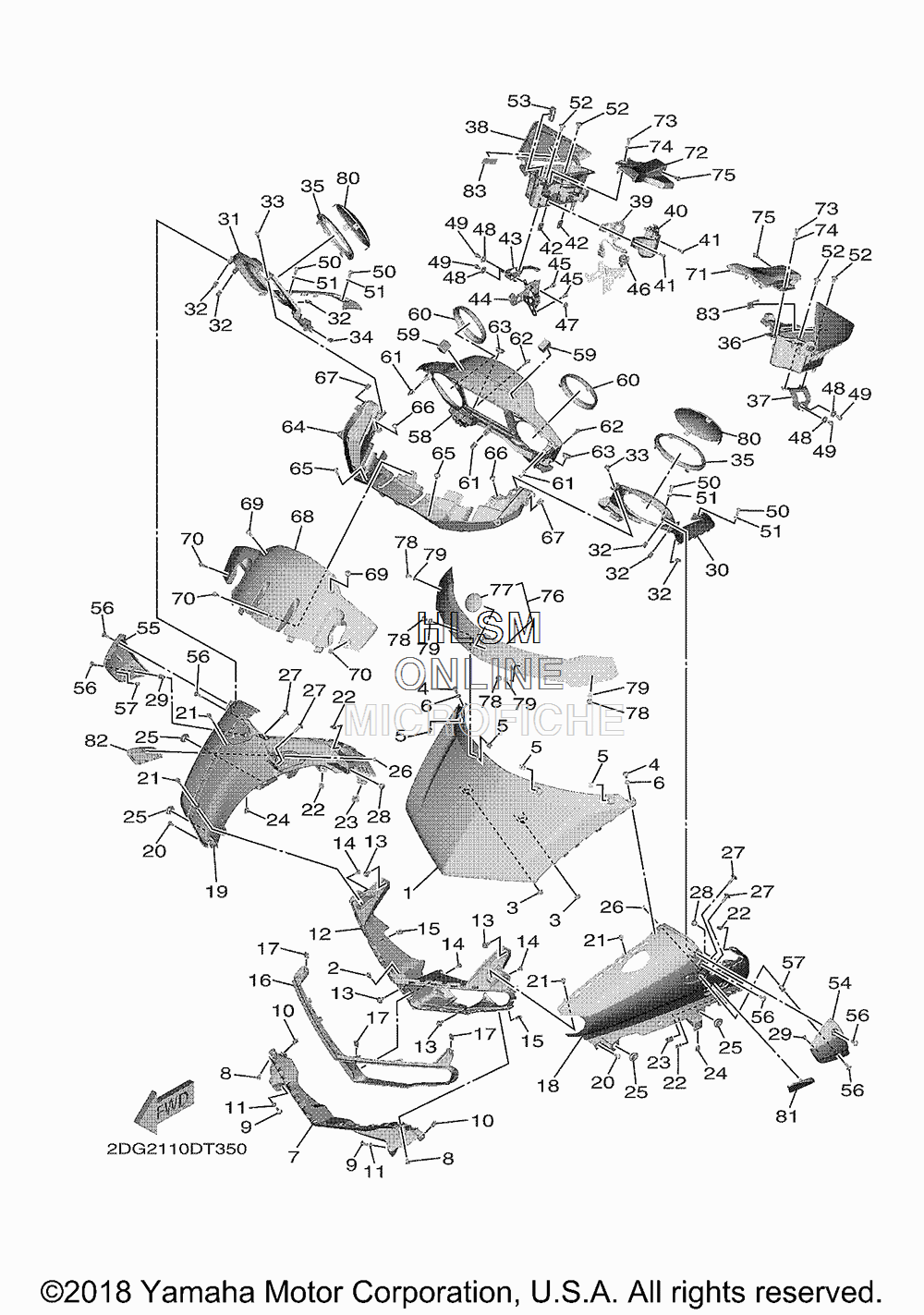

COWLING для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-28351-00-P2 BODY, COWLING (SMX - BLACK METALLIC)BODY, COWLING (SMX - BLACK METALLIC)
-
12DF-28351-00-P3 BODY, COWLING (VPBC5 - VIVID PURPLISH BLU)BODY, COWLING (VPBC5 - VIVID PURPLISH BLU)
-
290464-07018-00 CLAMPCLAMP
-
390338-10132-00 PLUGPLUG
-
490111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590183-05076-00 NUT, SPRINGNUT, SPRING
-
690202-05180-00 WASHER, PLATEWASHER, PLATE
-
72DF-28377-00-P2 BODY, COWLING 2 (SMX - BLACK METALLIC)BODY, COWLING 2 (SMX - BLACK METALLIC)
-
72DF-28377-00-P3 BODY, COWLING 2 (VPBC5 - VIVID PURPLISH BLU)BODY, COWLING 2 (VPBC5 - VIVID PURPLISH BLU)
-
897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
990111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090183-05042-00 NUT, SPRINGNUT, SPRING
-
1190202-05180-00 WASHER, PLATEWASHER, PLATE
-
122DF-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
1390119-06215-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1497702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1590183-05042-00 NUT, SPRINGNUT, SPRING
-
162DF-28347-00-00 MOLE 3 (VPBC5 - VIVID PURPLISH BLU)MOLE 3 (VPBC5 - VIVID PURPLISH BLU)
-
162DF-28347-10-00 MOLE 3 (SMX - BLACK METALLIC)MOLE 3 (SMX - BLACK METALLIC)
-
1790183-05042-00 NUT, SPRINGNUT, SPRING
-
182DF-28219-00-P2 COVER 1 (SMX - BLACK METALLIC)COVER 1 (SMX - BLACK METALLIC)
-
182DF-28219-00-P3 COVER 1 (VPBC5 - VIVID PURPLISH BLU)COVER 1 (VPBC5 - VIVID PURPLISH BLU)
-
192DF-28229-00-P2 COVER 2 (SMX - BLACK METALLIC)COVER 2 (SMX - BLACK METALLIC)
-
192DF-28229-00-P3 COVER 2 (VPBC5 - VIVID PURPLISH BLU)COVER 2 (VPBC5 - VIVID PURPLISH BLU)
-
2090167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
2190269-06008-00 RIVETRIVET
-
2290183-05076-00 NUT, SPRINGNUT, SPRING
-
2390183-05008-00 NUT, SPRINGNUT, SPRING
-
2490183-05042-00 NUT, SPRINGNUT, SPRING
-
2590480-01559-00 GROMMETGROMMET
-
2690183-05M02-00 NUT, SPRINGNUT, SPRING
-
2790110-06087-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890338-10132-00 PLUGPLUG
-
2990179-05523-00 NUTNUT
-
302DF-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
312DF-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
3290183-05076-00 NUT, SPRINGNUT, SPRING
-
3390269-06008-00 RIVETRIVET
-
3490183-05042-00 NUT, SPRINGNUT, SPRING
-
352DF-2834G-00-00 MOLE 5MOLE 5
-
362DF-2830R-00-00 BOX SUB ASSYBOX SUB ASSY
-
372DF-2836G-00-00 BRACKET 4BRACKET 4
-
382DF-2830T-00-00 BOX, SUB-ASSY., 3BOX, SUB-ASSY., 3
-
392DF-2830U-00-00 LOCK SETLOCK SET
-
402DF-2840L-00-00 STOPPER PIN ASSYSTOPPER PIN ASSY
-
4198907-05014-00 SCREW, BINDSCREW, BIND
-
4290183-051A0-00 NUT, SPRINGNUT, SPRING
-
432DF-2836H-00-00 BRACKET 5BRACKET 5
-
442DF-2833G-00-00 BRACKET 10BRACKET 10
-
4590105-06105-00 BOLT, FLANGEBOLT, FLANGE
-
4690464-18246-00 CLAMPCLAMP
-
4790179-06075-00 NUTNUT
-
4890201-06078-00 WASHER, PLATEWASHER, PLATE
-
4990105-06105-00 BOLT, FLANGEBOLT, FLANGE
-
5090111-05041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5190202-05006-00 WASHER, PLATEWASHER, PLATE
-
5290111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
532DF-28187-00-00 GROMMETGROMMET
-
542DG-26143-00-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
552DG-26145-00-00 COVER, HANDLE UPPER 2COVER, HANDLE UPPER 2
-
5690111-05021-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
5790338-06018-00 PLUGPLUG
-
582DF-83559-00-00 COVER, METERCOVER, METER
-
5990520-19001-00 DAMPER, PLATEDAMPER, PLATE
-
602DF-28348-00-00 MOLE 4MOLE 4
-
6190464-07018-00 CLAMPCLAMP
-
6290269-06008-00 RIVETRIVET
-
6390480-01559-00 GROMMETGROMMET
-
642DF-2836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
6590111-05021-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
6690167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
6790183-05076-00 NUT, SPRINGNUT, SPRING
-
682DF-2835E-00-00 HOOD 1HOOD 1
-
6990111-05021-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
7090269-06008-00 RIVETRIVET
-
712DF-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
722DF-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
7390111-05041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7490202-05006-00 WASHER, PLATEWASHER, PLATE
-
7590269-06008-00 RIVETRIVET
-
762DF-2830A-00-00 BODY, COWLING (VPBC5 - VIVID PURPLISH BLU)BODY, COWLING (VPBC5 - VIVID PURPLISH BLU)
-
762DF-2830A-10-00 BODY, COWLING (SMX - BLACK METALLIC)BODY, COWLING (SMX - BLACK METALLIC)
-
771RC-2413B-00-00 ...EMBLEM...EMBLEM
-
7890111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7990202-05180-00 WASHER, PLATEWASHER, PLATE
-
802DF-88163-00-00 GRILLE, SPEAKER 1GRILLE, SPEAKER 1
-
812DG-28218-00-00 SEAL 1SEAL 1
-
822DG-28228-00-00 SEAL 2SEAL 2
-
832DF-24877-00-00 LABEL, CAUTIONLABEL, CAUTION
