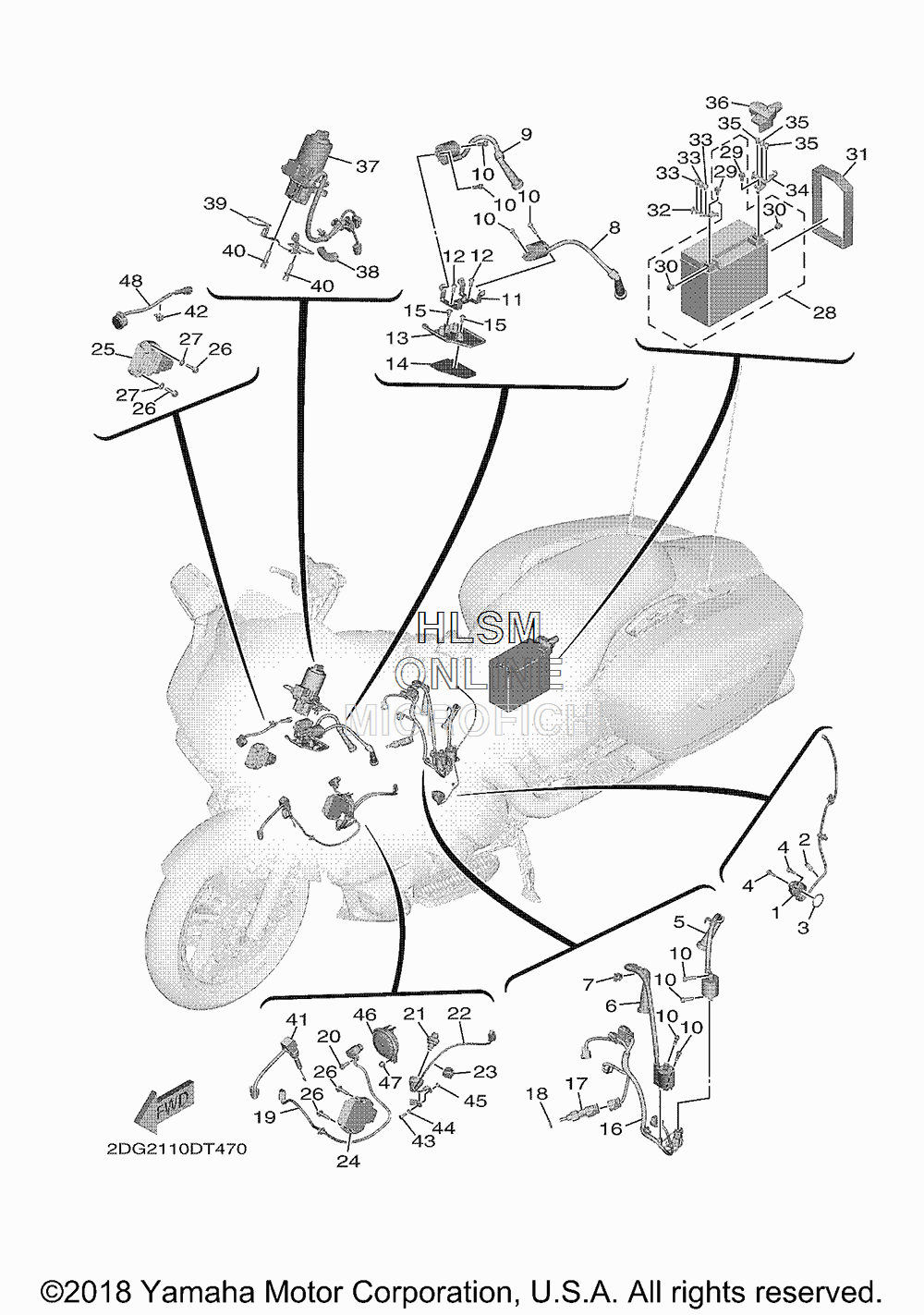

ELECTRICAL для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DG-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
290464-14003-00 CLAMPCLAMP
-
393210-29196-00 O-RINGO-RING
-
490110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52DF-82330-00-00 IGNITION COIL SUB-ASSYIGNITION COIL SUB-ASSY
-
62DF-82330-10-00 IGNITION COIL SUB-ASSYIGNITION COIL SUB-ASSY
-
790464-13133-00 CLAMPCLAMP
-
82DF-82330-00-00 IGNITION COIL SUB-ASSYIGNITION COIL SUB-ASSY
-
92DF-82330-30-00 IGNITION COIL SUB-ASSYIGNITION COIL SUB-ASSY
-
1090110-06213-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
112DF-21359-00-00 BRACKET, COILBRACKET, COIL
-
1292017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
132DF-28397-00-00 PLATE 2PLATE 2
-
142DF-21266-00-00 SHEET 1SHEET 1
-
1597702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
162DF-81441-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
175PX-83591-00-00 THERMO UNITTHERMO UNIT
-
1890201-12172-00 WASHER, PLATEWASHER, PLATE
-
192DF-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2090110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
211WS-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
222DF-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2390464-16003-00 CLAMPCLAMP
-
242CR-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
252CR-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2690105-06092-00 BOLT, FLANGEBOLT, FLANGE
-
2790201-063A5-00 WASHER, PLATEWASHER, PLATE
-
282DF-82100-22-00 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
292DF-81892-00-00 ...BOLT, SPECIAL...BOLT, SPECIAL
-
302DF-82557-00-00 ...NUT...NUT
-
314AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
322DF-82103-00-00 TERMINAL 1TERMINAL 1
-
3398502-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
342DF-8215C-00-00 TERMINALTERMINAL
-
3598502-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
362DF-82532-00-00 CAPCAP
-
372DF-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
382D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
392DF-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
4090109-08195-00 BOLTBOLT
-
412DF-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
4290464-06005-00 CLAMPCLAMP
-
4397027-05012-00 BOLT, HEXAGONBOLT, HEXAGON
-
4492907-05600-00 WASHER, PLATEWASHER, PLATE
-
4595307-05600-00 NUTNUT
-
462DF-83371-00-00 HORNHORN
-
4795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
482DF-83383-00-00 BUZZERBUZZER
