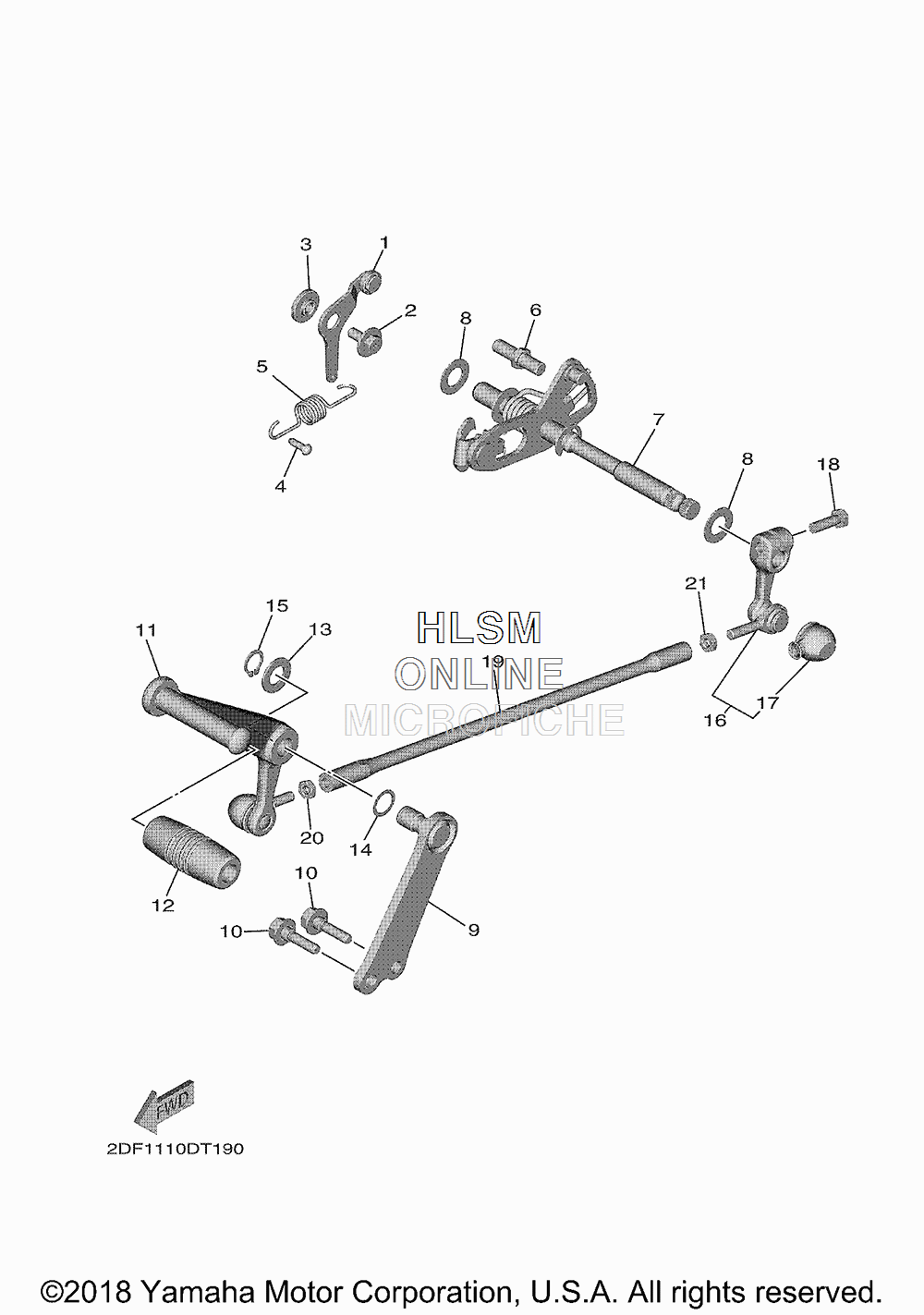

SHIFT SHAFT для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
290159-06027-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
34NX-18175-00-00 SPACERSPACER
-
4132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
52DF-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
61D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
72DF-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890201-127E1-00 WASHER, PLATEWASHER, PLATE
-
92DF-2741L-00-00 BRACKET 4BRACKET 4
-
1090109-06321-00 BOLTBOLT
-
112DF-18111-00-00 PEDAL, SHIFTPEDAL, SHIFT
-
125VN-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
1390201-12688-00 WASHER, PLATEWASHER, PLATE
-
1490206-12074-00 WASHER, WAVEWASHER, WAVE
-
1599009-12400-00 CIRCLIPCIRCLIP
-
162DF-18130-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
174XV-18154-00-00 ...COVER, DUST...COVER, DUST
-
1897027-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
192DF-18115-00-00 ROD, SHIFTROD, SHIFT
-
2090170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2195304-06700-00 NUTNUT
