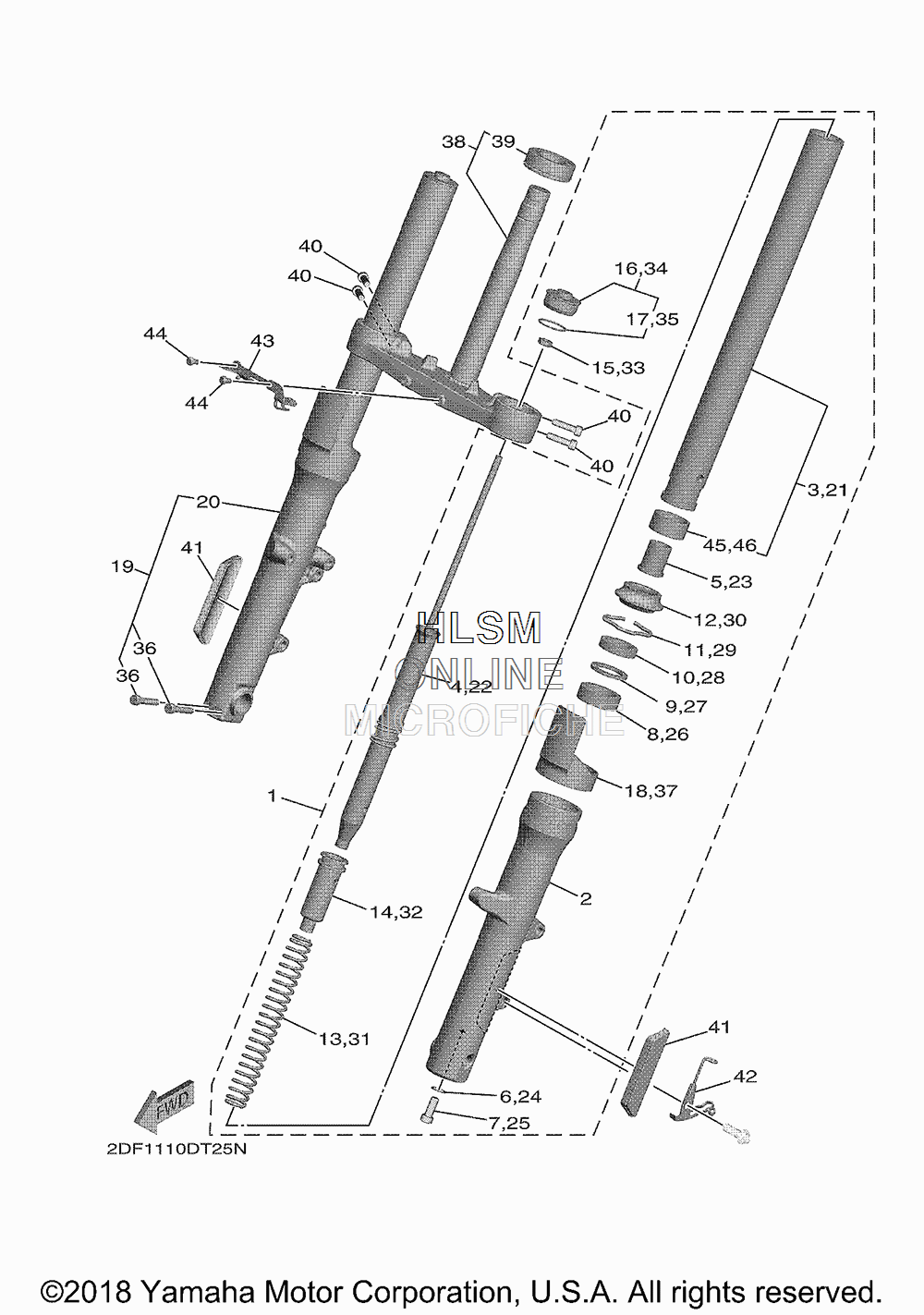

SUSPENSION - FRONT FORK для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22DF-23126-00-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
32DF-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
42DF-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
55UX-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
6509-23158-L0-00 ...GASKET...GASKET
-
7278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
85TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
101D7-23145-00-00 ...OIL SEAL (INCL. IN FORK SEAL KIT)...OIL SEAL (INCL. IN FORK SEAL KIT)
-
114SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
121D7-23144-00-00 ...SEAL, DUST (INCL. IN FORK SEAL KIT)...SEAL, DUST (INCL. IN FORK SEAL KIT)
-
132DF-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
141MD-23118-00-00 ...SPACER...SPACER
-
155UX-23778-00-00 ...NUT...NUT
-
162DF-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
171D7-23188-00-00 ......O-RING......O-RING
-
184SV-2331G-00-00 ...COVER...COVER
-
192DF-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
202DF-23136-00-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
212DF-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
222DF-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
235UX-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
24509-23158-L0-00 ...GASKET...GASKET
-
25278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
265TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
274SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
281D7-23145-00-00 ...OIL SEAL (INCL. IN FORK SEAL KIT)...OIL SEAL (INCL. IN FORK SEAL KIT)
-
294SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
301D7-23144-00-00 ...SEAL, DUST (INCL. IN FORK SEAL KIT)...SEAL, DUST (INCL. IN FORK SEAL KIT)
-
312DF-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
321MD-23118-00-00 ...SPACER...SPACER
-
335UX-23778-00-00 ...NUT...NUT
-
342DF-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
351D7-23188-00-00 ......O-RING......O-RING
-
3691314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
374SV-2331G-00-00 ...COVER...COVER
-
382DF-23400-00-00 STEERING ASSYSTEERING ASSY
-
3993332-000B1-00 ...BEARING...BEARING
-
4091314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
412DF-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
422DF-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
432DF-2334H-00-00 BRACKET 2BRACKET 2
-
4492017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
455ET-23171-L0-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
465ET-23171-L0-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
471D7-W003B-00-00 FORK SEAL KITFORK SEAL KIT
