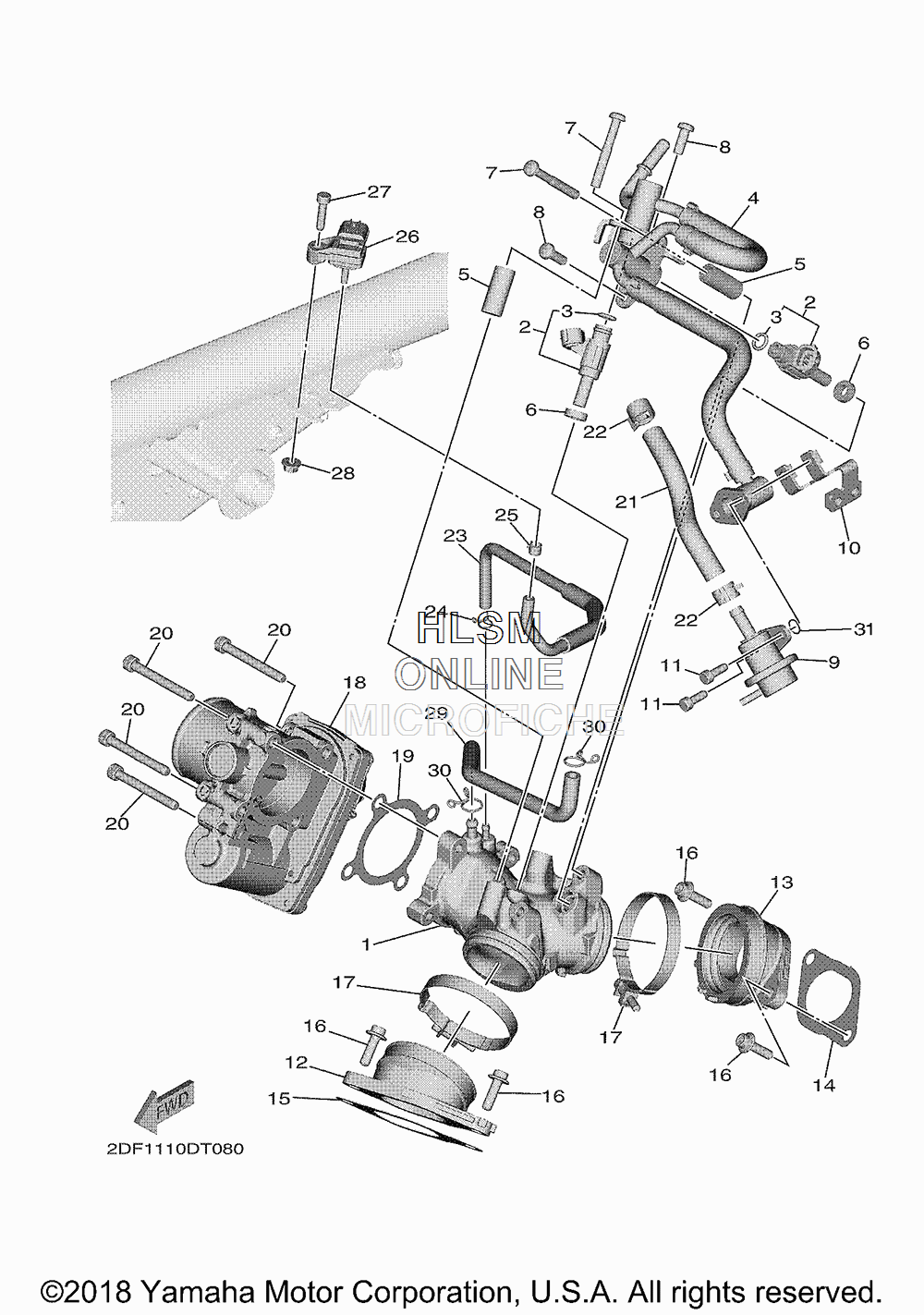

INTAKE для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-13640-00-00 MANIFOLDMANIFOLD
-
22DF-13761-00-00 INJECTORINJECTOR
-
368V-1416A-00-00 ...O-RING...O-RING
-
42DF-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
52DF-13716-00-00 COLLARCOLLAR
-
68FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
798502-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898502-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
95C7-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
102DF-14291-00-00 BRACKET 1BRACKET 1
-
1191312-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
122DF-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
132DF-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
142DF-14457-00-00 SEALSEAL
-
152DF-14467-00-00 SEALSEAL
-
1690110-06348-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790450-62004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
182DF-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
192DF-14452-00-00 SEALSEAL
-
2091312-06050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
212DF-24315-00-00 PIPE 5PIPE 5
-
2290467-12003-00 CLIPCLIP
-
232DF-13542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
2490467-08021-00 CLIPCLIP
-
2590467-07093-00 CLIPCLIP
-
261WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2791312-05020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2895702-05500-00 NUT, FLANGENUT, FLANGE
-
292DF-14465-00-00 PIPEPIPE
-
3090467-09103-00 CLIPCLIP
-
315S7-13769-00-00 ...O-RING...O-RING
