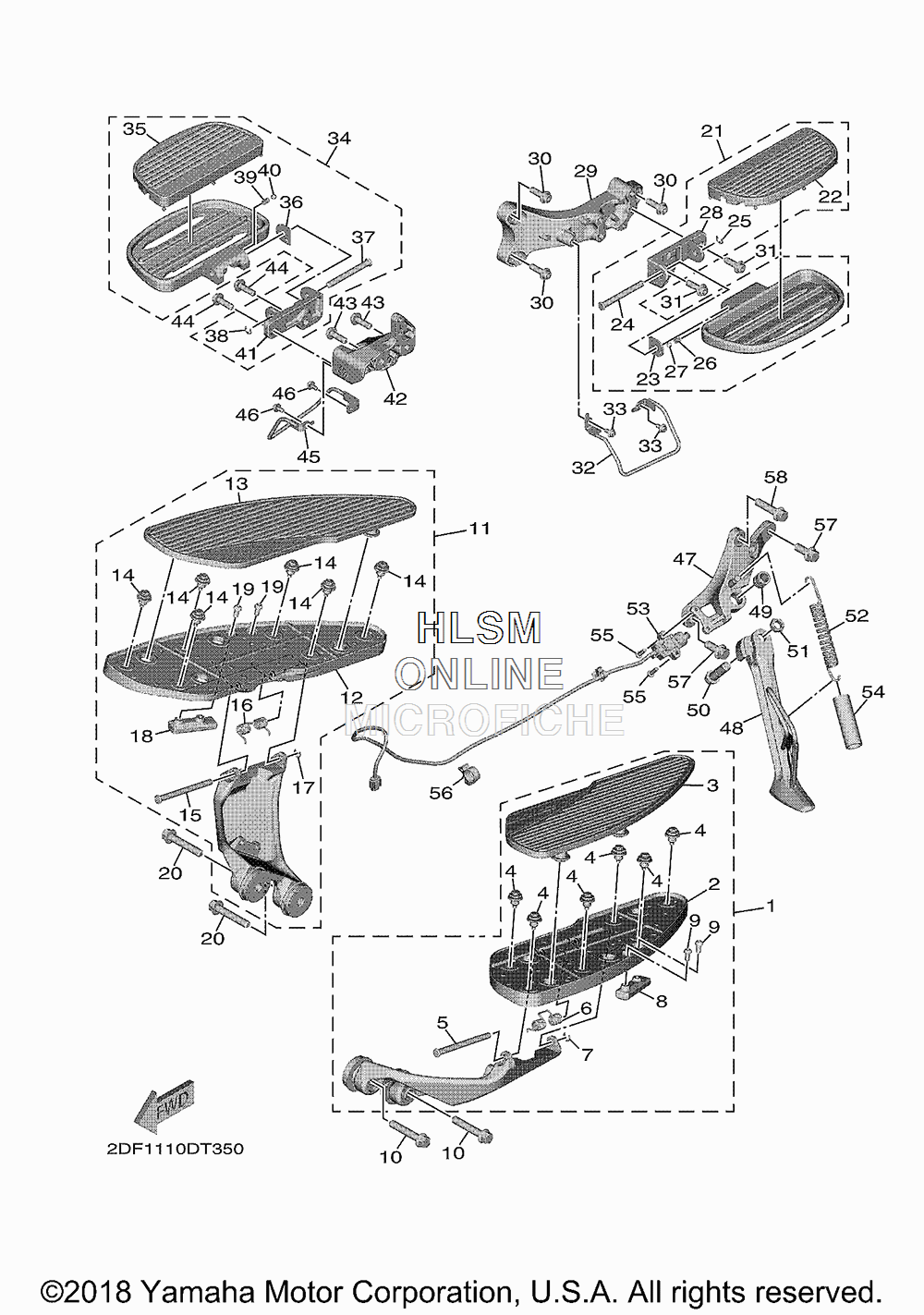

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-27410-00-00 FRONT FOOTREST ASSY (LEFT) (VPBC5 - VIVID PURPLISH BLU)FRONT FOOTREST ASSY (LEFT) (VPBC5 - VIVID PURPLISH BLU)
-
12DF-27410-10-00 FRONT FOOTREST ASSY (LEFT) (SMX - BLACK METALLIC)FRONT FOOTREST ASSY (LEFT) (SMX - BLACK METALLIC)
-
22DF-27451-00-00 ...FOOTREST (VPBC5 - VIVID PURPLISH BLU)...FOOTREST (VPBC5 - VIVID PURPLISH BLU)
-
22DF-27451-10-00 ...FOOTREST (SMX - BLACK METALLIC)...FOOTREST (SMX - BLACK METALLIC)
-
32DF-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
42DF-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
51D7-27427-00-00 ...SHAFT...SHAFT
-
61D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
799002-06600-00 ...CIRCLIP...CIRCLIP
-
82DF-27496-00-00 ...MOLE 1...MOLE 1
-
990111-06102-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
1090105-10458-00 BOLT, FLANGEBOLT, FLANGE
-
112DF-27420-00-00 FRONT FOOTREST ASSY (RIGHT) (VPBC5 - VIVID PURPLISH BLU)FRONT FOOTREST ASSY (RIGHT) (VPBC5 - VIVID PURPLISH BLU)
-
112DF-27420-10-00 FRONT FOOTREST ASSY (RIGHT) (SMX - BLACK METALLIC)FRONT FOOTREST ASSY (RIGHT) (SMX - BLACK METALLIC)
-
122DF-27461-00-00 ...FOOTREST (VPBC5 - VIVID PURPLISH BLU)...FOOTREST (VPBC5 - VIVID PURPLISH BLU)
-
122DF-27461-10-00 ...FOOTREST (SMX - BLACK METALLIC)...FOOTREST (SMX - BLACK METALLIC)
-
132DF-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
142DF-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
151D7-27427-00-00 ...SHAFT...SHAFT
-
161D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
1799002-06600-00 ...CIRCLIP...CIRCLIP
-
182DF-27496-00-00 ...MOLE 1...MOLE 1
-
1990111-06102-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
2090105-10458-00 BOLT, FLANGEBOLT, FLANGE
-
212DF-27430-00-00 REAR FOOTREST ASSY 1 (VPBC5 - VIVID PURPLISH BLU)REAR FOOTREST ASSY 1 (VPBC5 - VIVID PURPLISH BLU)
-
212DF-27430-10-00 REAR FOOTREST ASSY 1 (SMX - BLACK METALLIC)REAR FOOTREST ASSY 1 (SMX - BLACK METALLIC)
-
222DF-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
234YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
244YE-27427-01-00 ...SHAFT (VPBC5 - VIVID PURPLISH BLU)...SHAFT (VPBC5 - VIVID PURPLISH BLU)
-
244YE-27427-10-00 ...SHAFT (SMX - BLACK METALLIC)...SHAFT (SMX - BLACK METALLIC)
-
2599001-06600-00 ...CIRCLIP...CIRCLIP
-
2690501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2793501-04011-00 ...BALL...BALL
-
282DF-27452-00-00 ...BRACKET, FOOTREST 1...BRACKET, FOOTREST 1
-
292DF-27432-00-00 BRACKET 1BRACKET 1
-
3090110-08006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190110-08006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
322DF-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
3390110-05076-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
342DF-27430-00-00 REAR FOOTREST ASSY 1 (VPBC5 - VIVID PURPLISH BLU)REAR FOOTREST ASSY 1 (VPBC5 - VIVID PURPLISH BLU)
-
342DF-27430-10-00 REAR FOOTREST ASSY 1 (SMX - BLACK METALLIC)REAR FOOTREST ASSY 1 (SMX - BLACK METALLIC)
-
352DF-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
364YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
374YE-27427-01-00 ...SHAFT (VPBC5 - VIVID PURPLISH BLU)...SHAFT (VPBC5 - VIVID PURPLISH BLU)
-
374YE-27427-10-00 ...SHAFT (SMX - BLACK METALLIC)...SHAFT (SMX - BLACK METALLIC)
-
3899001-06600-00 ...CIRCLIP...CIRCLIP
-
3990501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4093501-04011-00 ...BALL...BALL
-
412DF-27452-00-00 ...BRACKET, FOOTREST 1...BRACKET, FOOTREST 1
-
422DF-27442-00-00 BRACKET 2BRACKET 2
-
4390110-08006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4490110-08006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
452DF-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
4690110-05076-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
472DF-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
482DF-27311-00-00 STAND, SIDESTAND, SIDE
-
4990387-1215U-00 COLLARCOLLAR
-
5090105-12018-00 BOLT, FLANGEBOLT, FLANGE
-
5190185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5290506-23024-00 SPRING, TENSIONSPRING, TENSION
-
532DF-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
5490445-217G3-00 HOSE (L70)HOSE (L70)
-
5590157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5690464-25009-00 CLAMPCLAMP
-
5790105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
5890105-10464-00 BOLT, FLANGEBOLT, FLANGE
