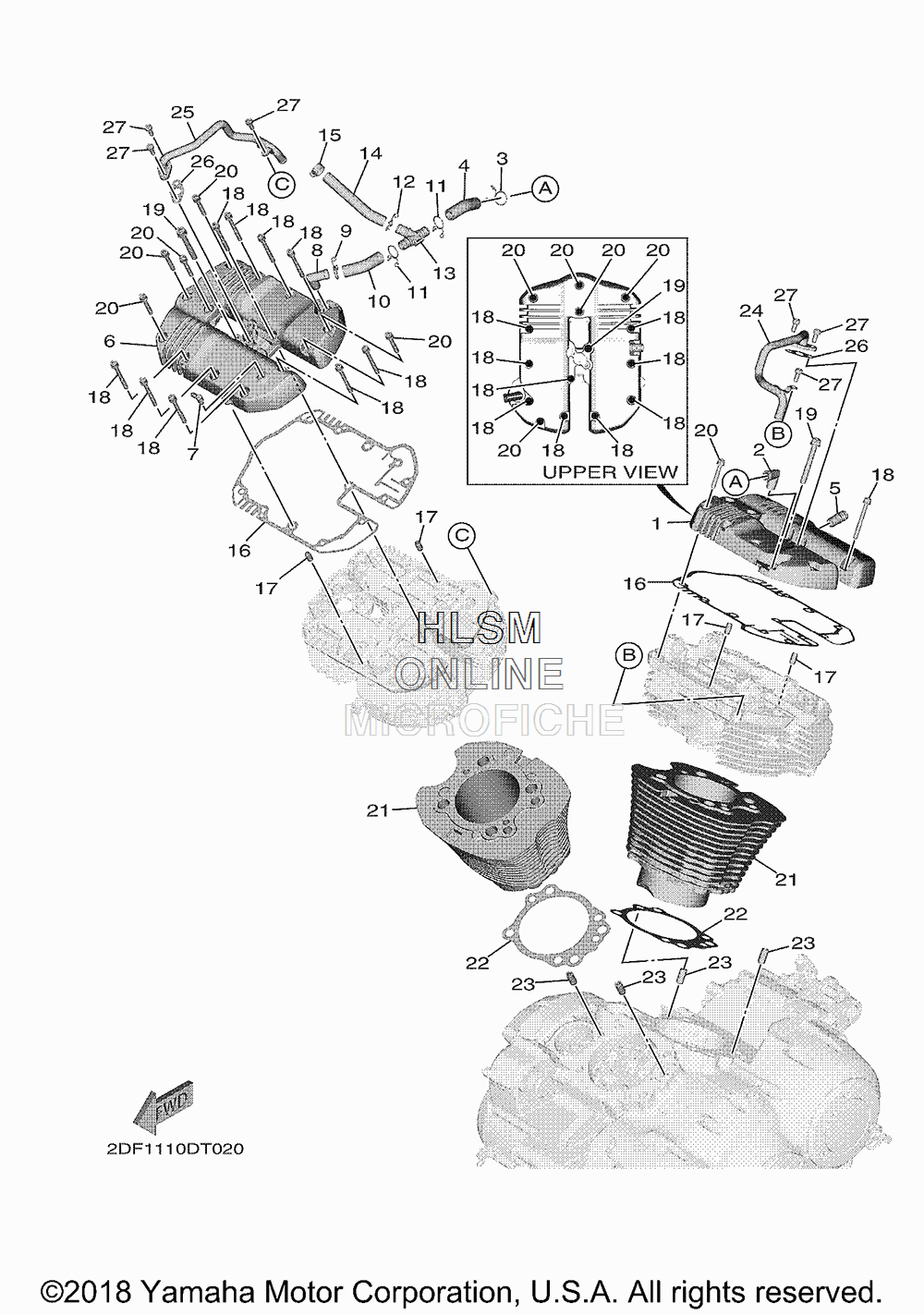

CYLINDER для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-11191-10-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
24TR-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
390467-18196-00 CLIPCLIP
-
42DF-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
52DF-12463-00-00 PIPE, BREATHERPIPE, BREATHER
-
62DF-11192-10-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
7353-13115-01-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
84TR-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
990467-18196-00 CLIPCLIP
-
102DF-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1190467-18196-00 CLIPCLIP
-
1290467-16195-00 CLIPCLIP
-
1390413-14001-00 WAY 3WAY 3
-
142DF-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
1590467-15001-00 CLIPCLIP
-
162DF-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1791808-16023-00 PIN, DOWELPIN, DOWEL
-
1890110-06422-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990110-08118-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090110-06421-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
212DF-11311-00-00 CYLINDER 1CYLINDER 1
-
222DF-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
2390387-062T5-00 COLLARCOLLAR
-
242DF-14871-00-00 PIPE 1PIPE 1
-
252DF-14872-00-00 PIPE 2PIPE 2
-
265PX-14815-00-00 GASKETGASKET
-
2791312-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
