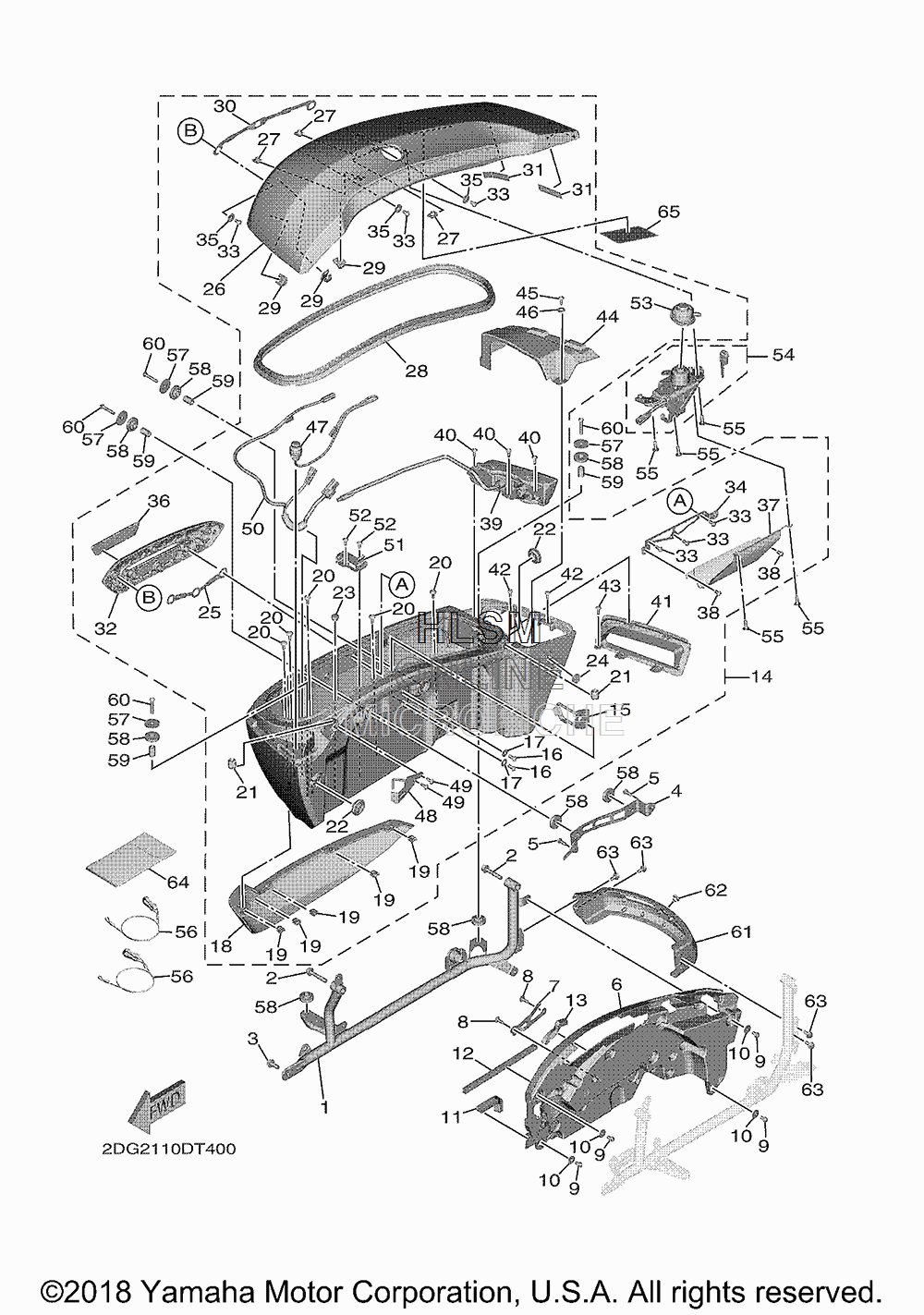

SADDLEBAG - RIGHT для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-28474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
295D32-08045-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
395817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
42DF-28414-00-00 STAY, FRONT GUARD 2STAY, FRONT GUARD 2
-
595027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
62DF-2846U-00-00 COVER, SIDE BOX 2COVER, SIDE BOX 2
-
72DG-28436-00-00 BRACKET 2BRACKET 2
-
897702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-06071-00 COLLARCOLLAR
-
112DF-2847N-00-00 DAMPER 8DAMPER 8
-
1290520-10032-00 DAMPER, PLATEDAMPER, PLATE
-
132DF-2847S-00-00 DAMPER 11DAMPER 11
-
142DF-28420-10-P0 SADDLEBAG ASSY., 2 (SMX - BLACK METALLIC)SADDLEBAG ASSY., 2 (SMX - BLACK METALLIC)
-
142DF-28420-00-P2 SADDLEBAG ASSY., 2 (VPBC5 - VIVID PURPLISH BLU)SADDLEBAG ASSY., 2 (VPBC5 - VIVID PURPLISH BLU)
-
152DF-28494-00-00 ...HOOK 3...HOOK 3
-
1692017-06014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1790201-06055-00 ...WASHER, PLATE...WASHER, PLATE
-
182DF-2844J-00-00 ...COVER 4...COVER 4
-
1990183-05073-00 ...NUT, SPRING...NUT, SPRING
-
2090111-05021-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
212DF-28415-00-00 ...DAMPER 1...DAMPER 1
-
222DF-2847F-00-00 ...SEAL 5...SEAL 5
-
2390338-10132-00 ...PLUG...PLUG
-
242DF-2846F-00-00 ...SEAL 4...SEAL 4
-
252DF-284BF-00-00 ...STAY, 7...STAY, 7
-
262DF-28449-00-P2 ...SADDLEBAG 4 (SMX - BLACK METALLIC)...SADDLEBAG 4 (SMX - BLACK METALLIC)
-
262DF-28449-00-P3 ...SADDLEBAG 4 (VPBC5 - VIVID PURPLISH BLU)...SADDLEBAG 4 (VPBC5 - VIVID PURPLISH BLU)
-
2790183-062A0-00 ...NUT, SPRING...NUT, SPRING
-
282DF-28429-00-00 ...SEAL 2...SEAL 2
-
292DF-81128-00-00 ...CLAMP...CLAMP
-
302DF-284BH-00-00 ...STAY, 10...STAY, 10
-
312DF-284BP-00-00 ...SEAL, 16...SEAL, 16
-
322DF-2844S-00-00 ...HINGE SUB-ASSY., 2...HINGE SUB-ASSY., 2
-
3390111-06102-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
342DF-2846N-00-00 ...BRACKET, HINGE 2...BRACKET, HINGE 2
-
3590201-06557-00 ...WASHER, PLATE...WASHER, PLATE
-
362DF-85130-00-00 ...REAR REFLECTOR ASSY...REAR REFLECTOR ASSY
-
372DF-2846L-00-00 ...COVER, HINGE 2...COVER, HINGE 2
-
3892017-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
392DF-83340-00-00 ...REAR FLASHER LIGHT ASSY 2...REAR FLASHER LIGHT ASSY 2
-
4097707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
412DF-833A2-00-00 ...GARNISH, FLASHER 2 (VPBC5 - VIVID PURPLISH BLU)...GARNISH, FLASHER 2 (VPBC5 - VIVID PURPLISH BLU)
-
412DF-833A2-10-00 ...GARNISH, FLASHER 2 (SMX - BLACK METALLIC)...GARNISH, FLASHER 2 (SMX - BLACK METALLIC)
-
4298907-05012-00 ...SCREW, BIND...SCREW, BIND
-
4397707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
442DF-2844C-00-00 ...LID 2...LID 2
-
4597707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
4690202-07015-00 ...WASHER, PLATE...WASHER, PLATE
-
472DF-82617-00-00 ...SWITCH...SWITCH
-
482DF-28476-00-00 ...BRACKET 3...BRACKET 3
-
4997707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
502DF-86178-00-00 ...WIRE, LEAD 8...WIRE, LEAD 8
-
512DF-21376-00-00 ...BAND, TOOL...BAND, TOOL
-
5297702-50014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
532DF-2845X-00-00 ...CAP,2...CAP,2
-
542DF-W2849-10-00 LOCK ASSYLOCK ASSY
-
5590111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
562DF-21398-00-00 HANGER, HELMETHANGER, HELMET
-
5790201-065G8-00 WASHER, PLATEWASHER, PLATE
-
5890480-20447-00 GROMMETGROMMET
-
5990387-08111-00 COLLARCOLLAR
-
6092017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
612DF-28423-00-00 STAY, SIDE BAGSTAY, SIDE BAG
-
6290338-07010-00 PLUGPLUG
-
6395D37-06014-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
642DF-28100-00-00 TOOL KITTOOL KIT
-
654XY-28446-02-00 LABEL, CAUTIONLABEL, CAUTION
