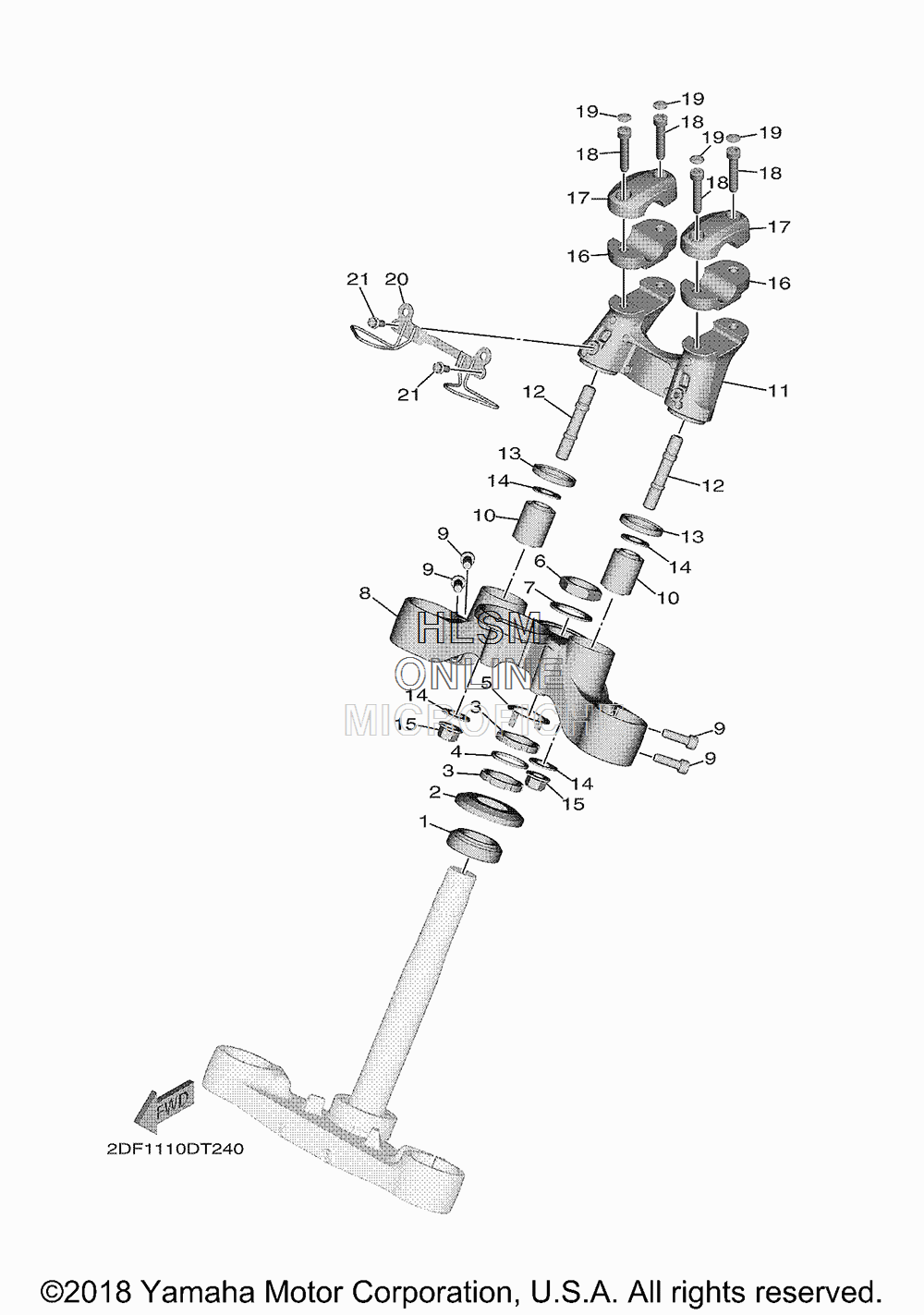

STEERING для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
193332-00091-00 BEARINGBEARING
-
22DF-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
390179-30006-00 NUTNUT
-
490202-30235-00 WASHER, PLATEWASHER, PLATE
-
54XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
690170-28419-00 NUTNUT
-
790201-281U8-00 WASHER, PLATEWASHER, PLATE
-
82DF-23435-00-00 CROWN, HANDLECROWN, HANDLE
-
991312-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
101NU-22216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
112DF-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1290116-12021-00 BOLT, STUDBOLT, STUD
-
132DF-23445-00-00 DAMPERDAMPER
-
1490201-14220-00 WASHER, PLATEWASHER, PLATE
-
1595602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
162DF-2344E-00-00 HOLDER , HANDLE LOWER 1HOLDER , HANDLE LOWER 1
-
172DF-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1891314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
19341-23469-00-00 CAP, BOLTCAP, BOLT
-
202DF-2317M-00-00 STAY 3STAY 3
-
2195022-06012-00 BOLT, FLANGEBOLT, FLANGE
