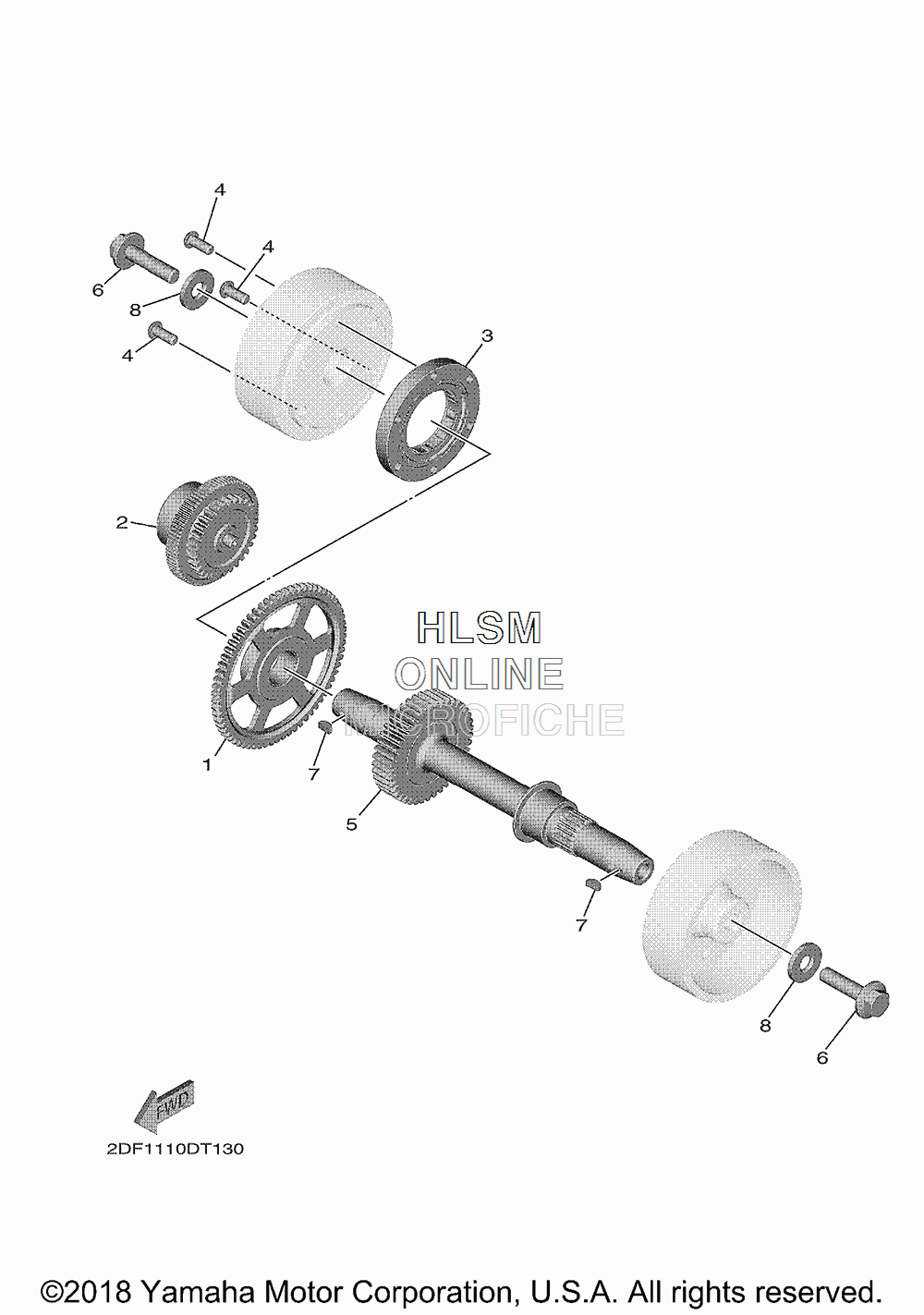

STARTER для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-15515-00-00 GEAR 3GEAR 3
-
22DF-15560-00-00 DAMPER ASSYDAMPER ASSY
-
32DF-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
490149-08038-00 SCREWSCREW
-
52DF-15659-00-00 SHAFTSHAFT
-
690105-12584-00 BOLT, FLANGEBOLT, FLANGE
-
790280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
890201-12008-00 WASHER, PLATEWASHER, PLATE
