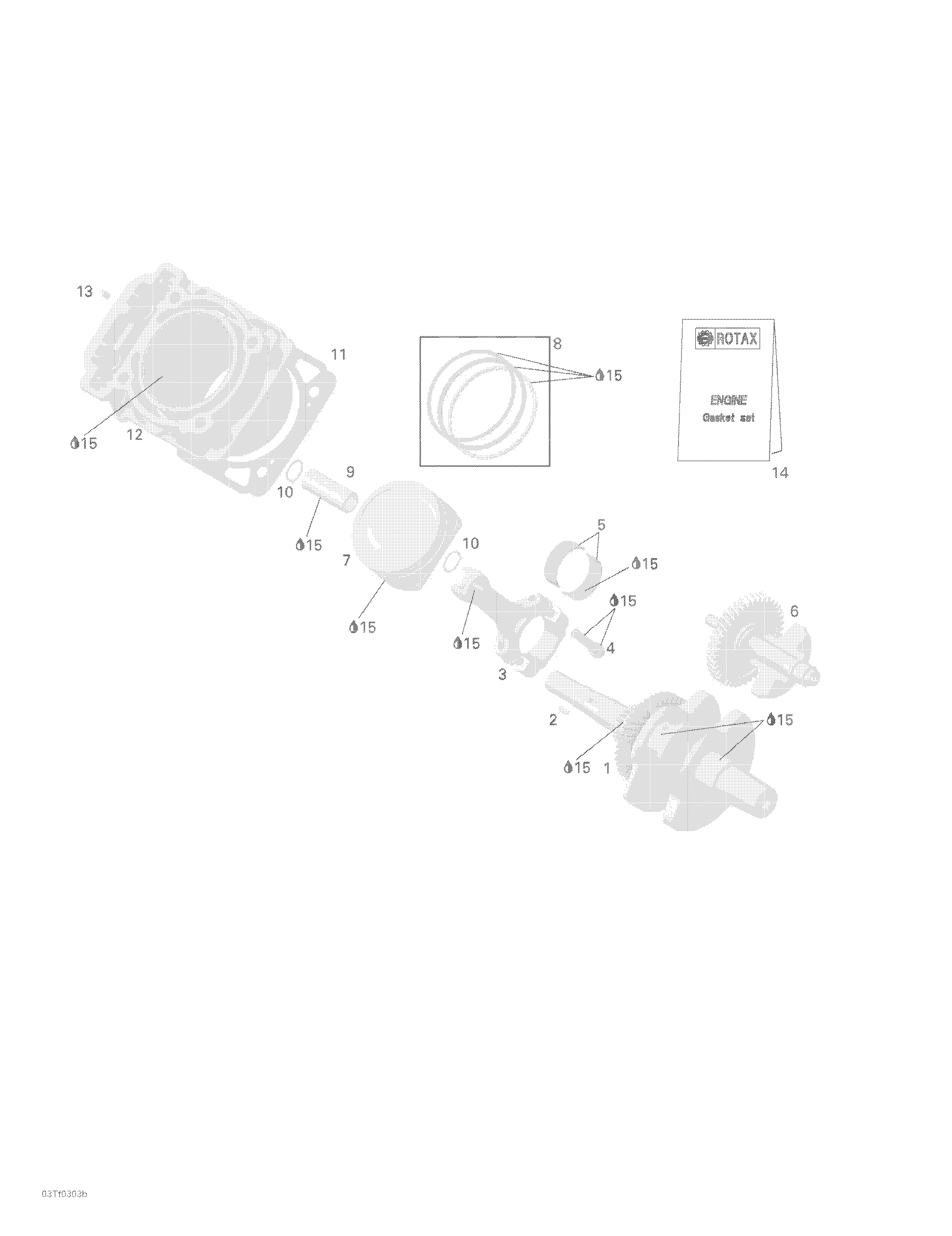

01- Crankshaft, Piston And Cylinder для BRP Outlander 400 - 2003

№

Артикул

Название
1

420296672 Crankshaft ass'y. Includes 1 - 2.

Crankshaft ass'y. Includes 1 - 2.

0 ₽
2

420246570 Woodruff key

Woodruff key

1 200 ₽
3

420217425 Connecting rod ass'y. Includes 3 - 4.

Connecting rod ass'y. Includes 3 - 4.

0 ₽
4

420641640 Connecting Rod Screw M8 X 1

Connecting Rod Screw M8 X 1

1 430 ₽
5

420233980 Plain bearing 40 x 43 x 15

Plain bearing 40 x 43 x 15

15 070 ₽
6

420620035 Balance shaft ass'y

Balance shaft ass'y

37 950 ₽
7

420296770 Piston ass'y 90.958 mm. Includes 7 - 8.

Piston ass'y 90.958 mm. Includes 7 - 8.

0 ₽
8

420296774 Piston ring set

Piston ring set

12 470 ₽
9

420216270 Piston pin

Piston pin

10 260 ₽
10

420845106 Piston circlip

Piston circlip

2 410 ₽
11

420630210 Gasket

Gasket

4 830 ₽
12

420613586 Cylinder assembly. Includes 12 - 13.

Cylinder assembly. Includes 12 - 13.

0 ₽
13

420929650 Drive pin

Drive pin

600 ₽
14

420684125 Gasket set

Gasket set

153 650 ₽
