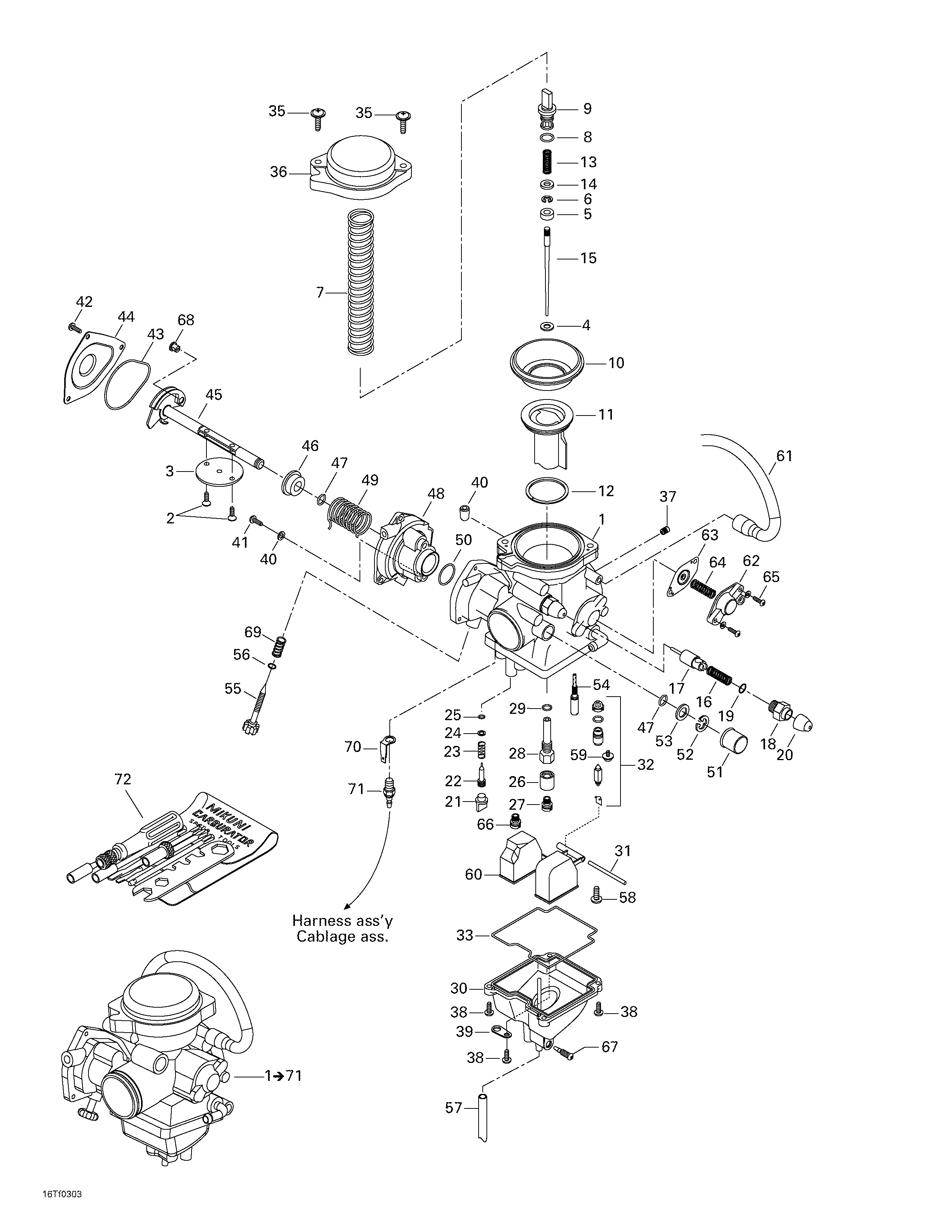

02- Carburetor для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1707200190 Carburetor (Mikuni BSR33-49). Includes 1 - 71.Carburetor (Mikuni BSR33-49). Includes 1 - 71.
-
4707200064 WasherWasher
-
5707200065 W-ringW-ring
-
6404152200 E-ringE-ring
-
7404162040 SpringSpring
-
8270500144 O-ringO-ring
-
9707200067 HolderHolder
-
10707200068 DiaphragmDiaphragm
-
11404162039 Piston valvePiston valve
-
12707200070 RingRing
-
13707200071 SpringSpring
-
14707200072 WasherWasher
-
15707200109 Needle J8-5FEY01-3Needle J8-5FEY01-3
-
16707200144 SpringSpring
-
17404162038 Plunger ass'yPlunger ass'y
-
18707200009 Holder guideHolder guide
-
19404140200 O-ringO-ring
-
20707200010 CapCap
-
21707200004 CapCap
-
22707200077 AdjusterAdjuster
-
23707200078 SpringSpring
-
24707200018 WasherWasher
-
25404139900 O-ringO-ring
-
26707200079 RingRing
-
27404162037 Main jet 133.8Main jet 133.8
-
28707200080 Jet holderJet holder
-
29270500119 O-ringO-ring
-
30707200119 Float body ass'yFloat body ass'y
-
31404123400 PinPin
-
32707200082 Needle valve 1.0Needle valve 1.0
-
33707200083 O-ringO-ring
-
34404162036 Needle jetNeedle jet
-
35707200085 ScrewScrew
-
36707200086 Diaphragm coverDiaphragm cover
-
37707200188 Pilot jet 50.0Pilot jet 50.0
-
38404159300 ScrewScrew
-
39404162035 PlatePlate
-
40404154900 CapCap
-
42707200091 ScrewScrew
-
43707200092 O-ringO-ring
-
44707200093 CoverCover
-
54707200100 Pilot jet 32.5Pilot jet 32.5
-
55707200180 Adjuster screwAdjuster screw
-
56707200020 O-ringO-ring
-
57404162034 HoseHose
-
58404138600 ScrewScrew
-
59404161861 ScrewScrew
-
60707200103 Float ass'yFloat ass'y
-
61707200179 HoseHose
-
62707200105 Cover ass'yCover ass'y
-
63707200106 Diaphragm ass'yDiaphragm ass'y
-
64707200160 Richer springRicher spring
-
65404901400 ScrewScrew
-
66404145800 Main jet PWJ 80Main jet PWJ 80
-
67707200024 ScrewScrew
-
68707200058 Cable guideCable guide
-
69404101700 SpringSpring
-
70707200164 TerminalTerminal
-
71707200163 Heater ElementHeater Element
