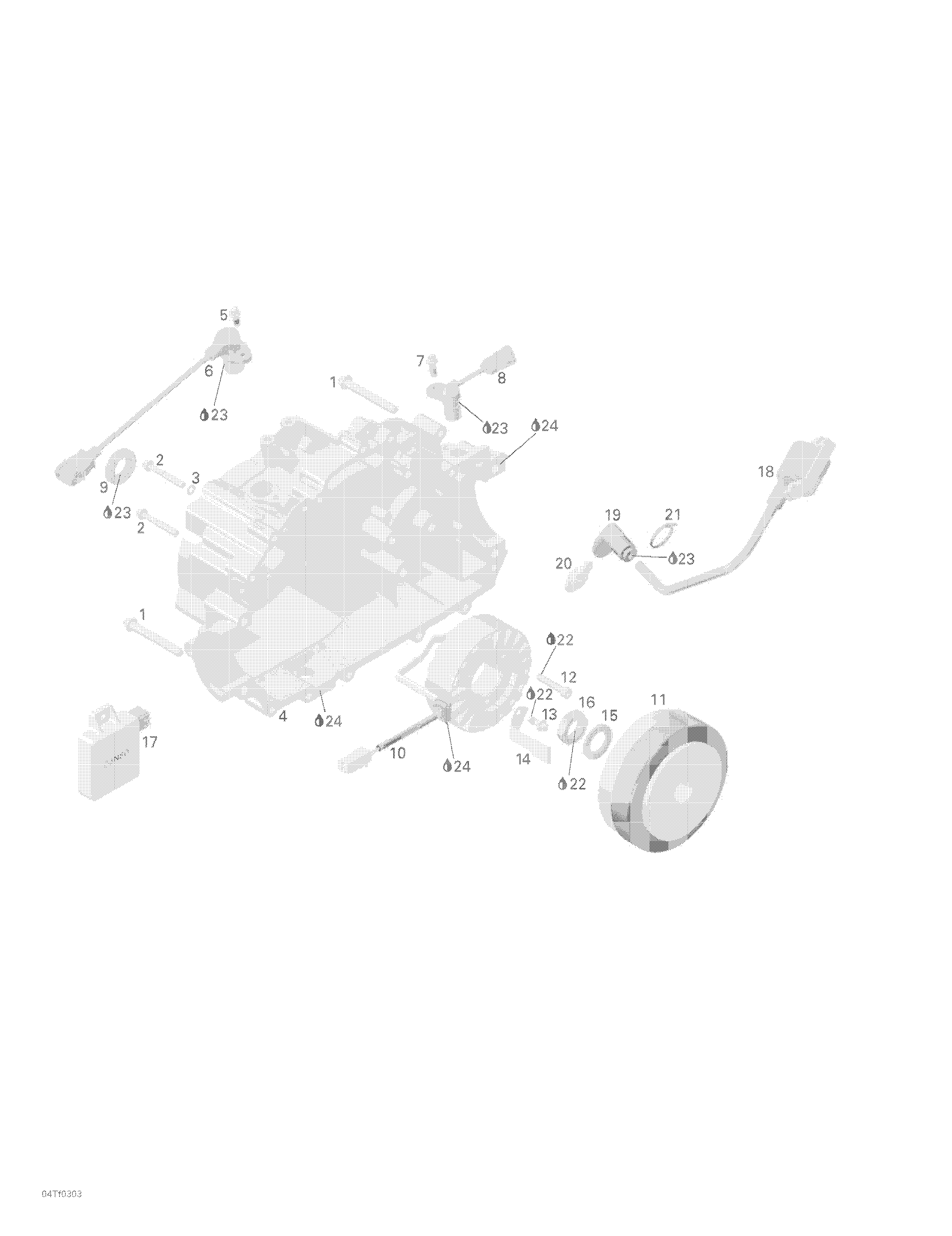

03- Magneto для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1420640333 Flanged torx screw M8 x 65Flanged torx screw M8 x 65
-
2420241822 Socket screw M6 x 45Socket screw M6 x 45
-
3420230415 Seal washerSeal washer
-
5420641043 Flanged torx screw M8 x 16Flanged torx screw M8 x 16
-
6420966570 Crank position triggerCrank position trigger
-
7420641043 Flanged torx screw M8 x 16Flanged torx screw M8 x 16
-
8420265622 Speed sensorSpeed sensor
-
9420930390 Oil sealOil seal
-
10420684850 Startor Ass'yStartor Ass'y
-
11420684045 Magneto FlywheelMagneto Flywheel
-
12420241811 Socket screw M6 x 35Socket screw M6 x 35
-
13420641043 Flanged torx screw M8 x 16Flanged torx screw M8 x 16
-
14420251270 Inner cable coverInner cable cover
-
15420945759 Lock washerLock washer
-
16420842237 Hex nut M22Hex nut M22
-
17420664280 Amplifier boxAmplifier box
-
18420265358 Ignition coil ass'y. Includes 18 - 19.Ignition coil ass'y. Includes 18 - 19.
-
19420265240 Spark plug connectorSpark plug connector
-
20707000246 Spark plugSpark plug
-
22293800060 Loctite 243, blue, 10 ccLoctite 243, blue, 10 cc
-
23293550014 Grease, super lubeGrease, super lube
-
24293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
