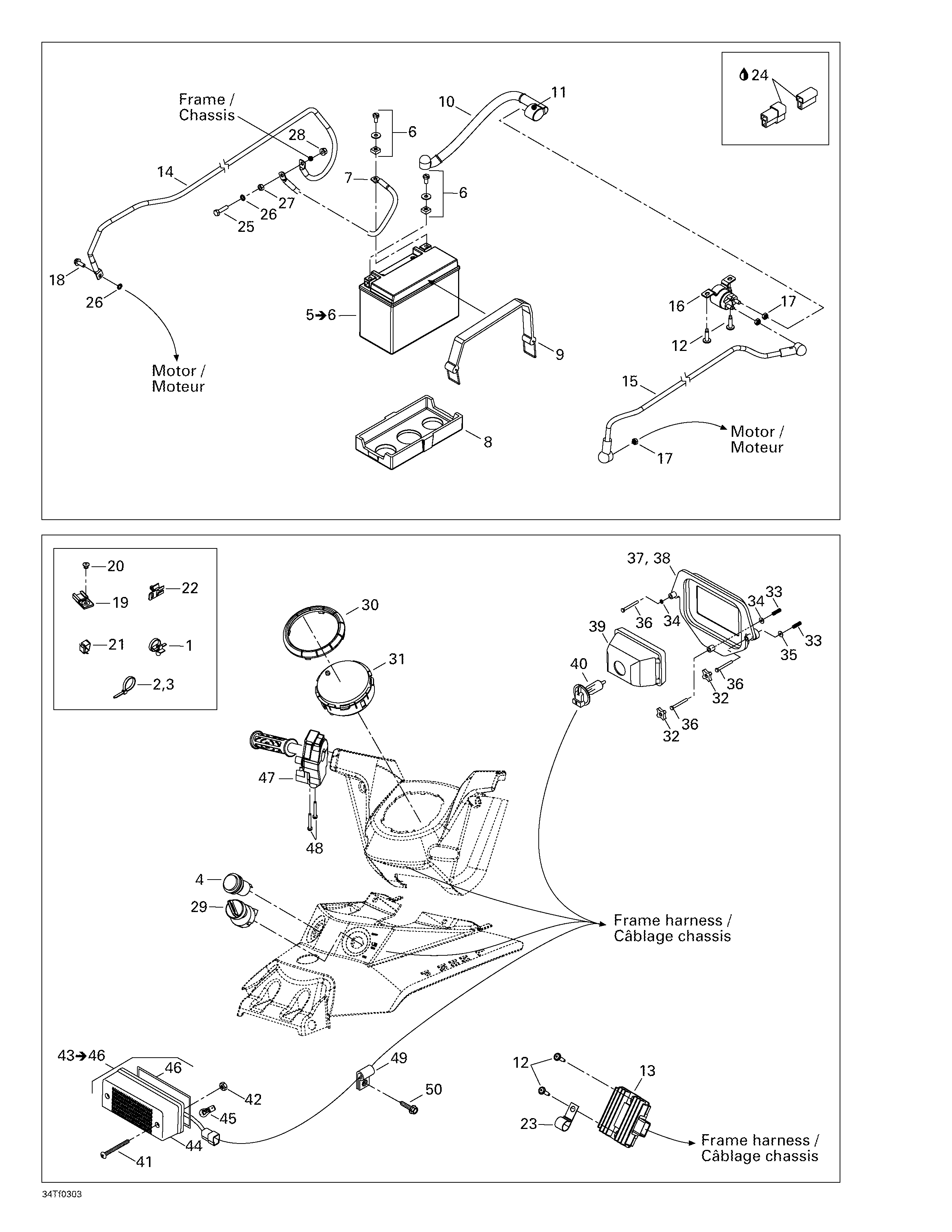

10- Battery And Electrical Accessories для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1293750009 Tie-rap 160 mmTie-rap 160 mm
-
2293750001 Tie-rap 130 mmTie-rap 130 mm
-
3414115200 Tie-rapTie-rap
-
4710000024 Outlet (12 volt)Outlet (12 volt)
-
5710000283 Battery (13 amperes). Includes 5 - 6.Battery (13 amperes). Includes 5 - 6.
-
6295500849 Battery fastener kitBattery fastener kit
-
7710000259 Battery ground cableBattery ground cable
-
8710000279 Insulator padInsulator pad
-
9293850021 Rubber strapRubber strap
-
10710000260 Positive cable. Includes 10 - 11.Positive cable. Includes 10 - 11.
-
11710000393 Protector capProtector cap
-
12250000081 Torx screw M6 x 25Torx screw M6 x 25
-
13710000908 Volt regulator. For replacement, refer to service bulletin 2005-5Volt regulator. For replacement, refer to service bulletin 2005-5
-
16710000111 Starter relayStarter relay
-
17232561600 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
18207561644 Hex flanged screw M6 x 16 (scotch grip)Hex flanged screw M6 x 16 (scotch grip)
-
19270000141 ClipClip
-
20390402400 Pop rivet 3/16''Pop rivet 3/16''
-
21414227300 ClipClip
-
22515175283 Housing supportHousing support
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25207162544 Hex screw M6 x 25Hex screw M6 x 25
-
26234461608 Exterior lapping washer M6Exterior lapping washer M6
-
27232061414 Hex nut M6Hex nut M6
-
28233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
29710000238 Ignition switchIgnition switch
-
29715900019 Blank KeyBlank Key
-
30710000353 Trim ringTrim ring
-
31710000286 SpeedometerSpeedometer
-
32572106600 HandleHandle
-
33710000285 SpringSpring
-
34234042600 Flat washer M4Flat washer M4
-
35234040600 Flat washer M4Flat washer M4
-
36250000008 Hex screw K40 x 40Hex screw K40 x 40
-
37710000236 R.h. supportR.h. support
-
38710000277 L.h. supportL.h. support
-
39705000284 Lamp housingLamp housing
-
40710000176 BulbBulb
-
41208656091 Phillips screw M5 x 60Phillips screw M5 x 60
-
42233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
43710000102 Tail light housing. Includes 43 - 46.Tail light housing. Includes 43 - 46.
-
44710000055 Red lensRed lens
-
45410504100 Tail light bulbTail light bulb
-
46710000129 GasketGasket
-
47710000311 Multi-function handleMulti-function handle
-
48205453546 Socket head screw M5 x 35Socket head screw M5 x 35
-
49414176000 Open clampOpen clamp
-
50210261680 Hex forming screw M6 x 16Hex forming screw M6 x 16
