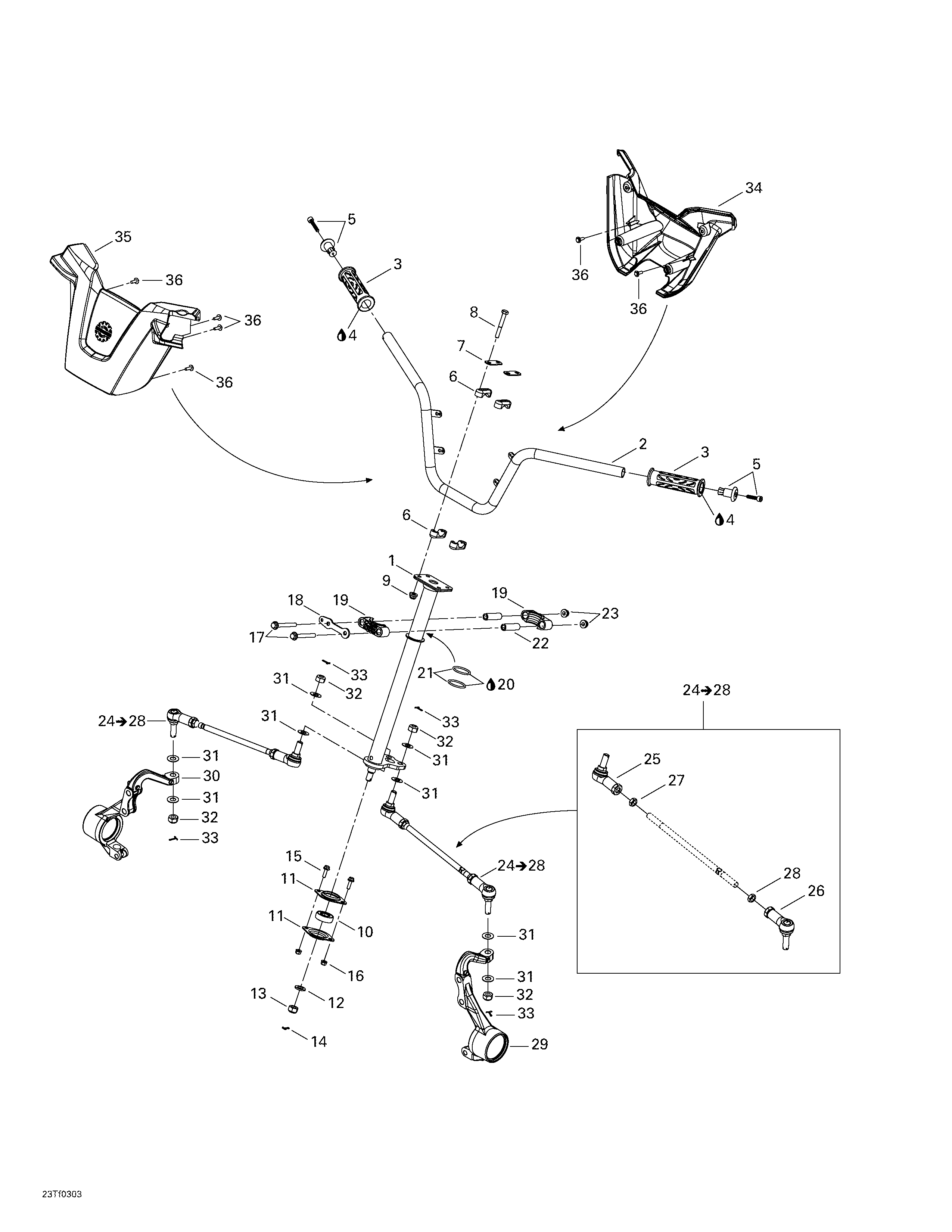

07- Steering System для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1709400165 Main tubeMain tube
-
2709400138 Handle barHandle bar
-
3709400157 Hand gripHand grip
-
4293800100 Loctite 406, 7 ozLoctite 406, 7 oz
-
5709400189 End pieceEnd piece
-
6506151622 Steering supportSteering support
-
7506151196 ReinforcementReinforcement
-
8207086044 Hex screw M8 x 60Hex screw M8 x 60
-
9233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
10709400224 Thrust bearingThrust bearing
-
11709400152 Thrust washerThrust washer
-
12234021410 Flat washer M12Flat washer M12
-
13250000047 Hex flanged elastic nut M12Hex flanged elastic nut M12
-
14211400017 Cotter pinCotter pin
-
15207562044 Hex flanged screw M6 x 20 (scotch grip)Hex flanged screw M6 x 20 (scotch grip)
-
16233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
17207687044 Hex flanged screw M8 x 70Hex flanged screw M8 x 70
-
18709400053 Stopper plateStopper plate
-
19709400052 Half bushingHalf bushing
-
20293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
21293300068 O-ringO-ring
-
22709400072 BushingBushing
-
23233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
24709400190 Tie Rod ass'y. Includes 24 - 28.Tie Rod ass'y. Includes 24 - 28.
-
25709400195 R.h. ball jointR.h. ball joint
-
26709400196 LH ball jointLH ball joint
-
27732610019 R.h. hex jam nut M12R.h. hex jam nut M12
-
28732610020 LH hex jam nut M12LH hex jam nut M12
-
29709400132 LH knuckleLH knuckle
-
30709400133 R.h. knuckleR.h. knuckle
-
31706200281 Hard washerHard washer
-
32250000047 Hex flanged elastic nut M12Hex flanged elastic nut M12
-
33211400013 Cotter pinCotter pin
-
34709400204 Rear steering coverRear steering cover
-
35709400205 Front steering coverFront steering cover
-
36243141640 Hex flanged plastite screw M4.8 x 16Hex flanged plastite screw M4.8 x 16
