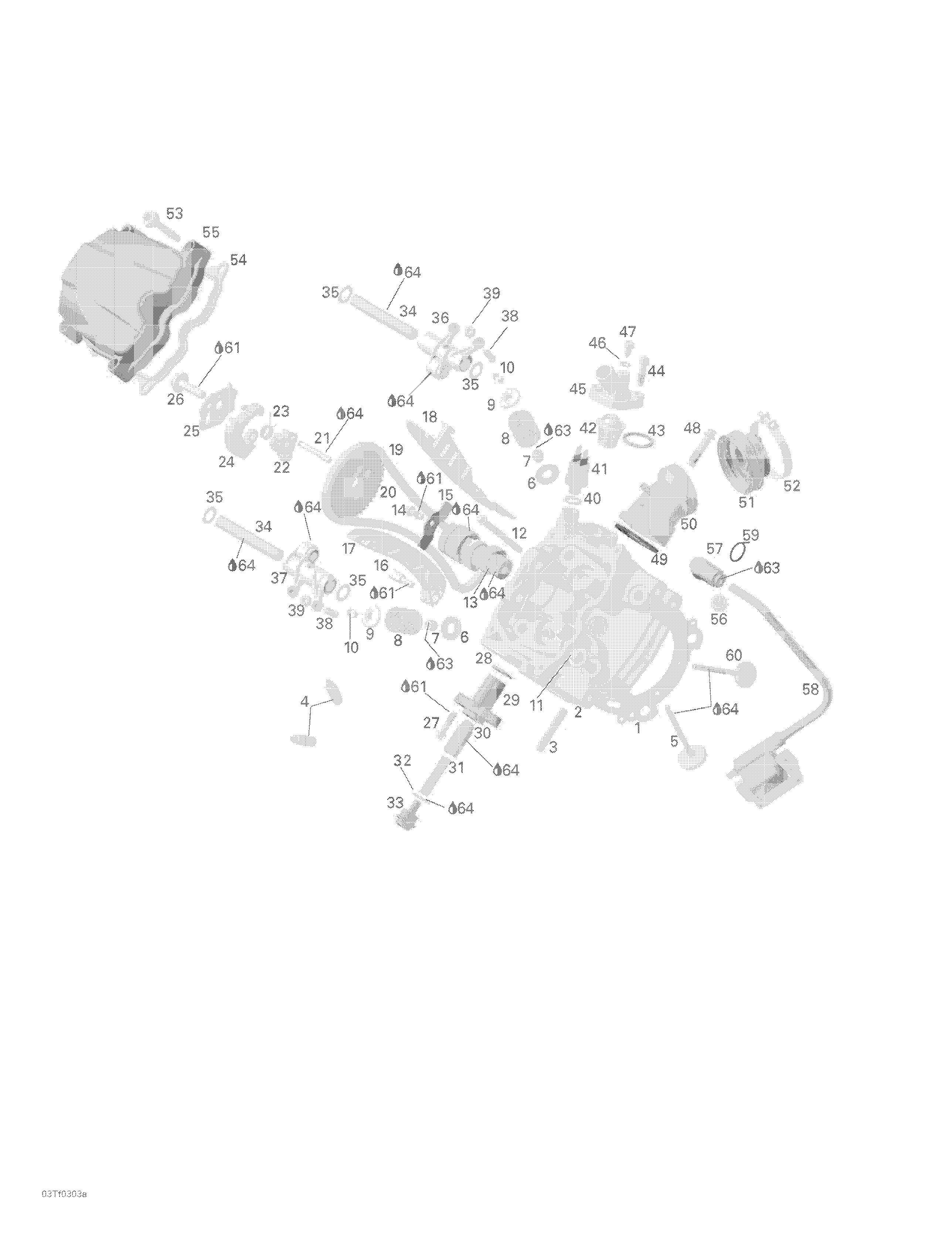

01- Cylinder Head для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1420630195 Cylinder head gasketCylinder head gasket
-
2420613526 Cylinder head ass'y. Includes 2 - 4.Cylinder head ass'y. Includes 2 - 4.
-
3420941013 Stud M8 x 26Stud M8 x 26
-
4420254370 Valve guideValve guide
-
5420254360 Exhaust valve 27 mmExhaust valve 27 mm
-
6420627770 Thrust washerThrust washer
-
7420230515 Valve stem sealValve stem seal
-
8420239295 Valve springValve spring
-
9420254130 Valve spring retainerValve spring retainer
-
10420254120 Cotter valveCotter valve
-
11420641550 Torx screw M10 x 140Torx screw M10 x 140
-
12420641223 Flanged torx screw M6 x 85Flanged torx screw M6 x 85
-
13420620010 CamshaftCamshaft
-
14420641043 Flanged torx screw M6 x 16Flanged torx screw M6 x 16
-
15420627740 Holding stripHolding strip
-
16420240942 Bearing screw M6Bearing screw M6
-
17420236570 Chain tension guideChain tension guide
-
18420236580 Chain guideChain guide
-
19420297060 Silent chainSilent chain
-
20420254430 Steering wheel (42 teeth)Steering wheel (42 teeth)
-
21420620120 Deko shaftDeko shaft
-
22420231080 SpacerSpacer
-
23420238270 Deko torsion springDeko torsion spring
-
24420231070 Centrifugal weightCentrifugal weight
-
25420231090 Deko washerDeko washer
-
26420641820 Collar hex screw M8 x 32Collar hex screw M8 x 32
-
27420240031 Hex screw M6 x 25Hex screw M6 x 25
-
28420430370 O-ringO-ring
-
29420236510 Chain tensioner housingChain tensioner housing
-
30420236520 Chain tensioner plungerChain tensioner plunger
-
31420238120 SpringSpring
-
32420250890 O-ringO-ring
-
33420641150 Plug screwPlug screw
-
34420229711 Pin # 12 small M6 x 90Pin # 12 small M6 x 90
-
35420944382 Shim 12.1/18.5/0.5Shim 12.1/18.5/0.5
-
36420254405 Rocker arm inletRocker arm inlet
-
37420254415 Rocker arm exhaustRocker arm exhaust
-
38420241335 Adjustment screw M6 x 0,75Adjustment screw M6 x 0,75
-
39420242910 Hex nut M6Hex nut M6
-
40420250640 GasketGasket
-
41420897939 Temperature switchTemperature switch
-
42420222493 Thermostat 65 Deg. with gasket. Includes 42 - 43.Thermostat 65 Deg. with gasket. Includes 42 - 43.
-
43420650300 Thermostat gasketThermostat gasket
-
44205062544 Socket head screw M6 x 25Socket head screw M6 x 25
-
45420222690 Thermostat coverThermostat cover
-
46420650250 Gasket ringGasket ring
-
47420941950 Screw M5.5 x 13Screw M5.5 x 13
-
48420440482 Allen screw M8 x 40Allen screw M8 x 40
-
49420630640 GasketGasket
-
50420267386 Intake flange assemblyIntake flange assembly
-
51420267340 Intake neckIntake neck
-
52420251480 Hose clampHose clamp
-
53420641268 Flanged torx screw M6 x 30.5Flanged torx screw M6 x 30.5
-
54420630260 GasketGasket
-
55420610390 Valve coverValve cover
-
56707000246 Spark plugSpark plug
-
57420265358 Ignition coil. Includes 57 - 58.Ignition coil. Includes 57 - 58.
-
57420265240 Spark plug connectorSpark plug connector
-
60420254350 Intake valve 31 mmIntake valve 31 mm
-
61293800060 Loctite 243, blue, 10 ccLoctite 243, blue, 10 cc
-
62413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
63293550014 Grease, super lubeGrease, super lube
