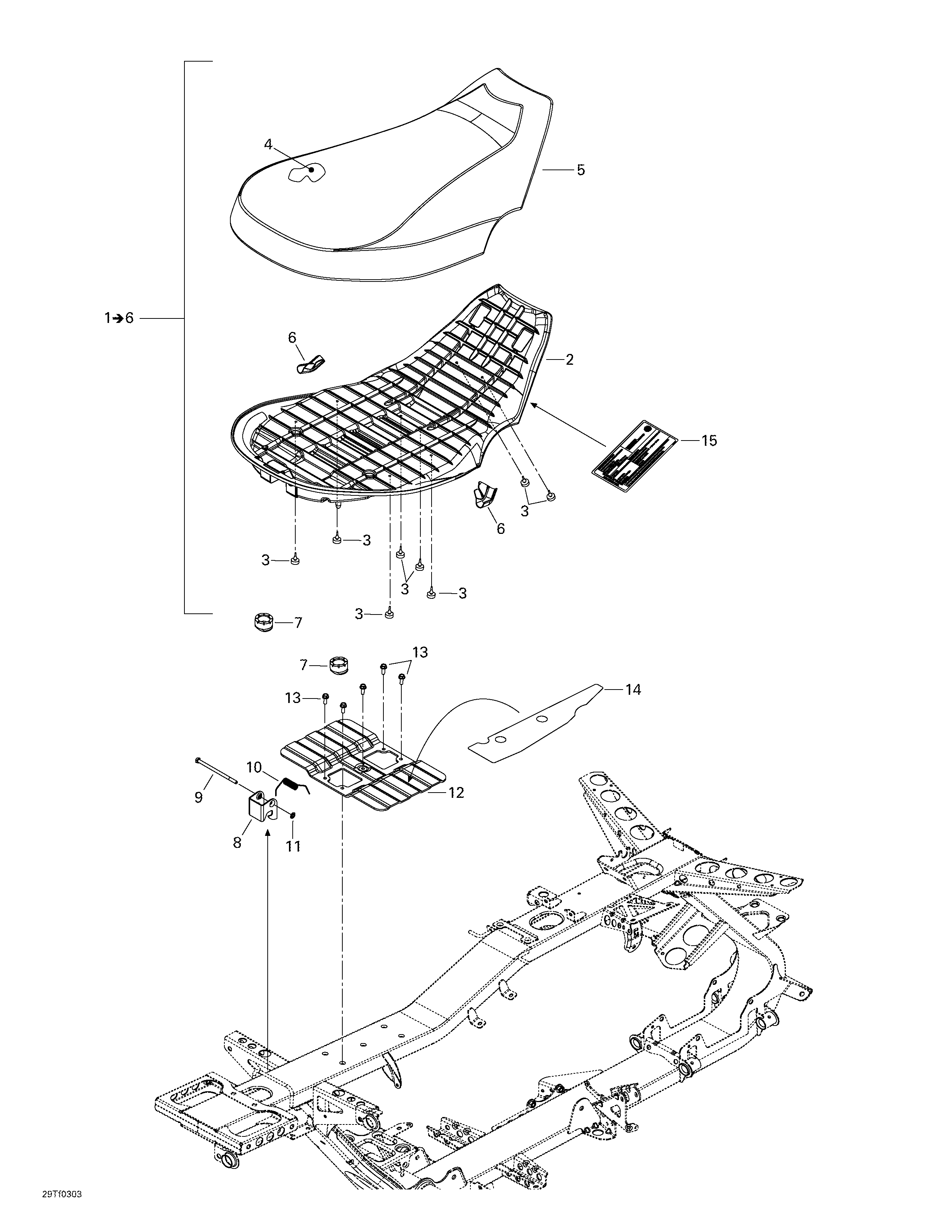

09- Seat для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1708000121 Seat ass'y. Includes 1 - 6.Seat ass'y. Includes 1 - 6.
-
3708000125 Rubber stopperRubber stopper
-
5708000142 Seat coverSeat cover
-
6708000199 Seat cornerSeat corner
-
7708000143 Rubber bumperRubber bumper
-
8708000144 LatchLatch
-
9230061060 Hex screw M6 x 110Hex screw M6 x 110
-
10708000146 SpringSpring
-
11732610072 Push nutPush nut
-
12708000152 Seat reinforcementSeat reinforcement
-
13210261080 Hex forming screw M6 x 10Hex forming screw M6 x 10
-
14708000198 Reflecting sheetReflecting sheet
-
15704900501 Emission labelEmission label
