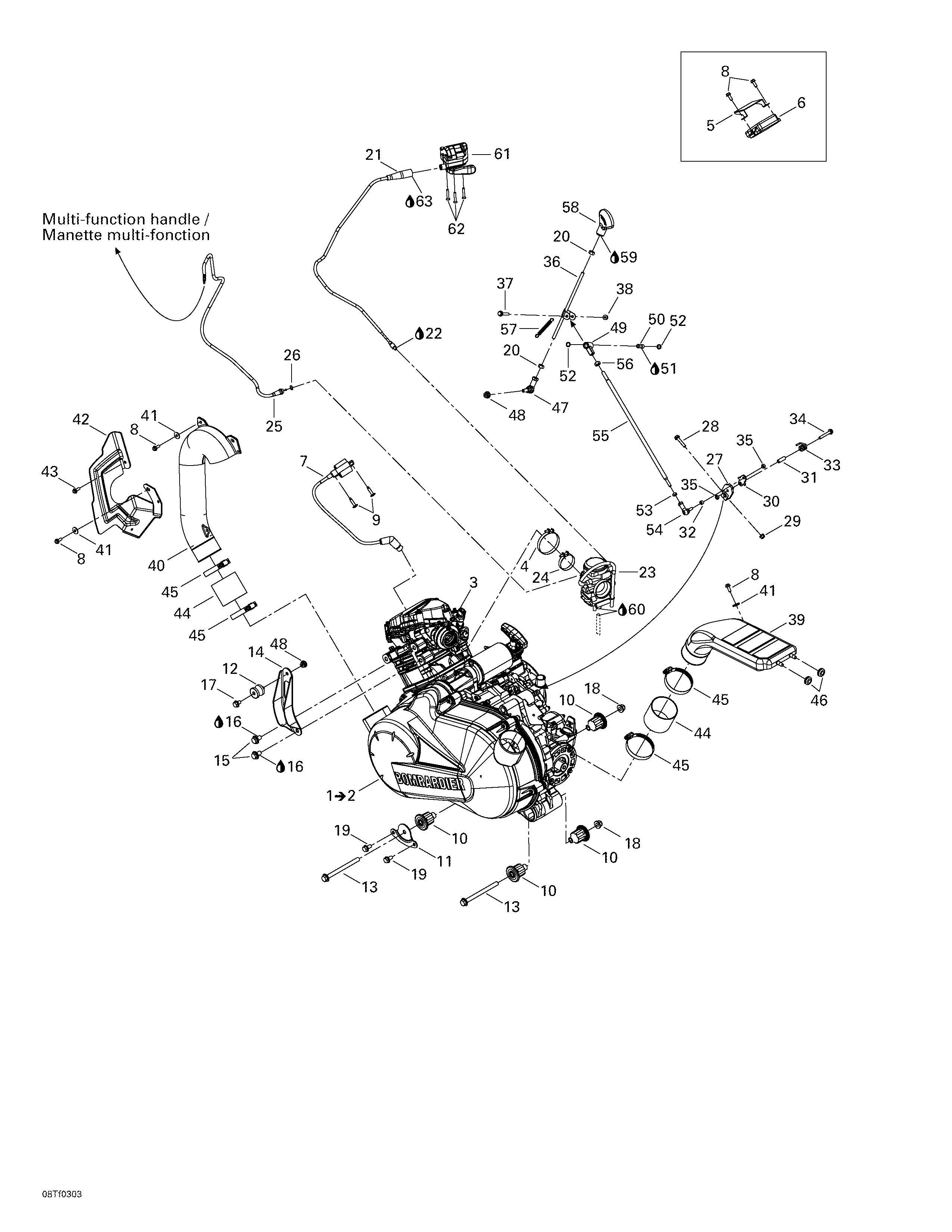

01- Engine And Engine Support для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1707000235 Rotax 4 strokes engine ''400''. Includes 1 - 2.Rotax 4 strokes engine ''400''. Includes 1 - 2.
-
2707000246 Spark plug NGK DCP-R8E (not shown)Spark plug NGK DCP-R8E (not shown)
-
3420267340 Admission adaptorAdmission adaptor
-
4420251480 ClampClamp
-
6711664280 Amplifier boxAmplifier box
-
7711265358 Ignition coilIgnition coil
-
8210261680 Hex flanged forming screw M6 x 16Hex flanged forming screw M6 x 16
-
9250000081 Torx screw M6 x 25Torx screw M6 x 25
-
10707000218 Anti-vibration mountAnti-vibration mount
-
11707000220 LH front engine bracketLH front engine bracket
-
12274000839 Rubber isolatorRubber isolator
-
13230602546 Hex flanged screw M10 x 125Hex flanged screw M10 x 125
-
14707000224 Upper engine bracketUpper engine bracket
-
15207602544 Hex flanged screw M10 x 25Hex flanged screw M10 x 25
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17207581244 Hex flanged screw M8 x 12 (scotch grip)Hex flanged screw M8 x 12 (scotch grip)
-
18233201416 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
19207581244 Hex flanged screw M8 x 12 (scotch grip)Hex flanged screw M8 x 12 (scotch grip)
-
20232081414 Hex nut M8Hex nut M8
-
21707000226 Throttle cableThrottle cable
-
22293600041 Cable lubricant, 400 gCable lubricant, 400 g
-
23707200190 CarburetorCarburetor
-
24293650143 Gemi clampGemi clamp
-
25707000228 Choke cableChoke cable
-
26293300075 O-ringO-ring
-
27707000295 Shifting armShifting arm
-
28207663044 Hex flanged screw M6 x 30Hex flanged screw M6 x 30
-
29233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
30707000309 Pivot platePivot plate
-
31293900050 BushingBushing
-
32293900029 BushingBushing
-
33707000310 SpringSpring
-
34207664044 Hex flanged screw M6 x 40Hex flanged screw M6 x 40
-
35232561414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
36707000258 Lever armLever arm
-
37207664044 Hex flanged screw M6 x 40Hex flanged screw M6 x 40
-
38233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
39707000227 Air outletAir outlet
-
40707000261 Air intakeAir intake
-
41391302000 Flat washerFlat washer
-
42707000304 CVT water deflectorCVT water deflector
-
43414745900 ScrewScrew
-
44707000154 Flexible adaptorFlexible adaptor
-
45293650064 Tridon clampTridon clamp
-
46293720053 GrommetGrommet
-
47707000278 R.h. ball jointR.h. ball joint
-
48232581414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
49707000279 PivotPivot
-
50293900047 BushingBushing
-
51293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
52414583300 O-ringO-ring
-
53232066414 LH hex nut M6LH hex nut M6
-
54707000143 LH ball jointLH ball joint
-
55707000280 Threaded rodThreaded rod
-
56232081414 Hex nut M8Hex nut M8
-
57707000281 SpringSpring
-
58707000284 Lever handleLever handle
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
60413708300 Glue tube, loctite 454, 20 gGlue tube, loctite 454, 20 g
-
61709400186 Throttle handle. Includes 61 - 62.Throttle handle. Includes 61 - 62.
-
62205452546 Socket head screw M5 x 25Socket head screw M5 x 25
-
63293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
