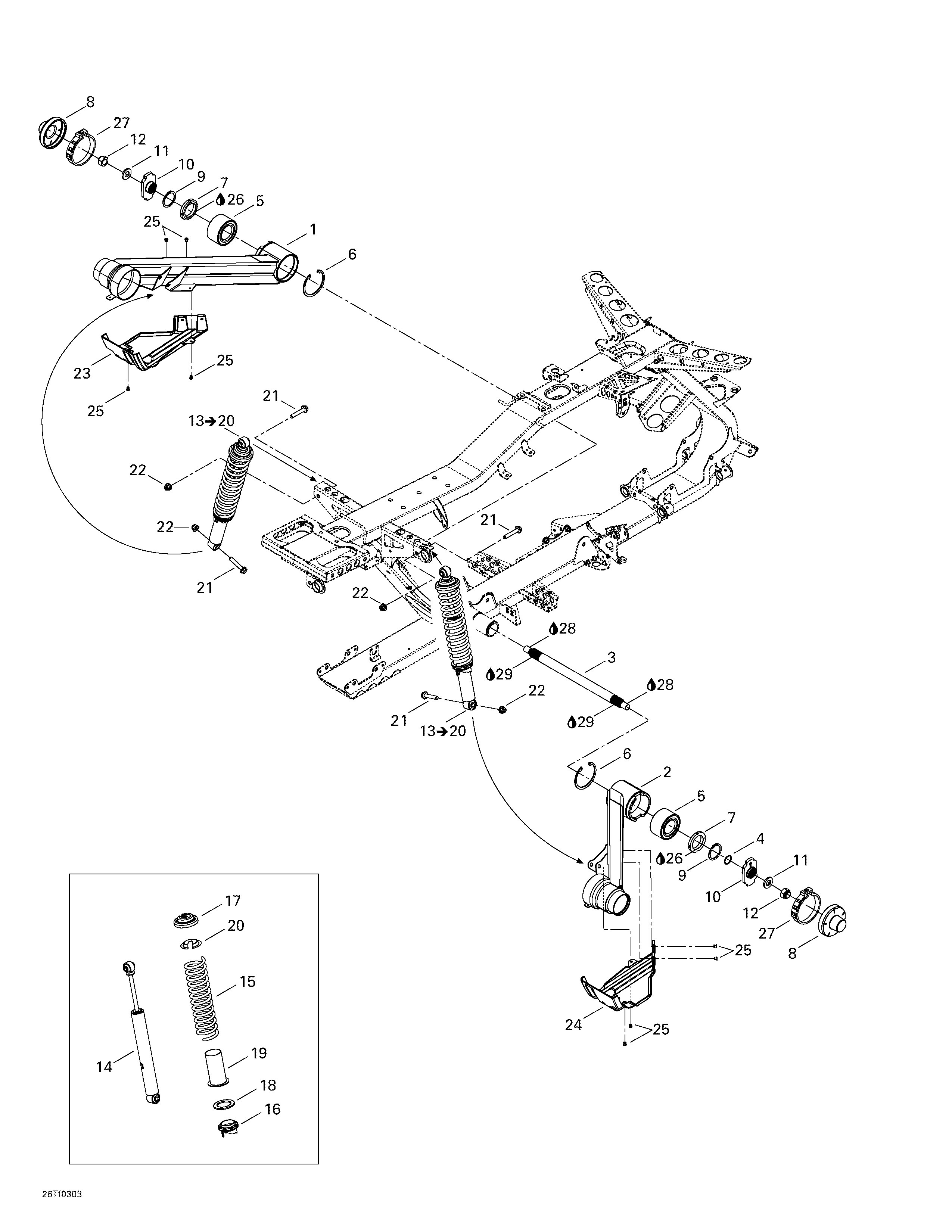

08- Rear Suspension для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1706000277 LH Swing ArmLH Swing Arm
-
2706000282 R.H. Swing ArmR.H. Swing Arm
-
3706000216 Sway barSway bar
-
4706000251 Retainer ringRetainer ring
-
5293350037 Ball bearingBall bearing
-
7706000221 Tightening nutTightening nut
-
8706000222 CoverCover
-
9293370027 Circlip 45 mmCirclip 45 mm
-
10706000224 LeverLever
-
11250200019 WasherWasher
-
12232591414 Hex elastic nut M18Hex elastic nut M18
-
14706000248 Rear shockRear shock
-
15706000245 Rear springRear spring
-
16706000249 Adjuster ringAdjuster ring
-
17503140600 Spring stopperSpring stopper
-
18706000028 Ring HolderRing Holder
-
19503139800 ProtectorProtector
-
20503141600 CapCap
-
21207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
22233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
23706000170 LH protectorLH protector
-
24706000171 R.h. protectorR.h. protector
-
25293150104 Pop rivet 3/16''Pop rivet 3/16''
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27293650162 Oetiker clampOetiker clamp
-
28293800105 Loctite 51211, Maxi-coat, aerosol 12 ozLoctite 51211, Maxi-coat, aerosol 12 oz
-
29293550010 Synthetic greaseSynthetic grease
