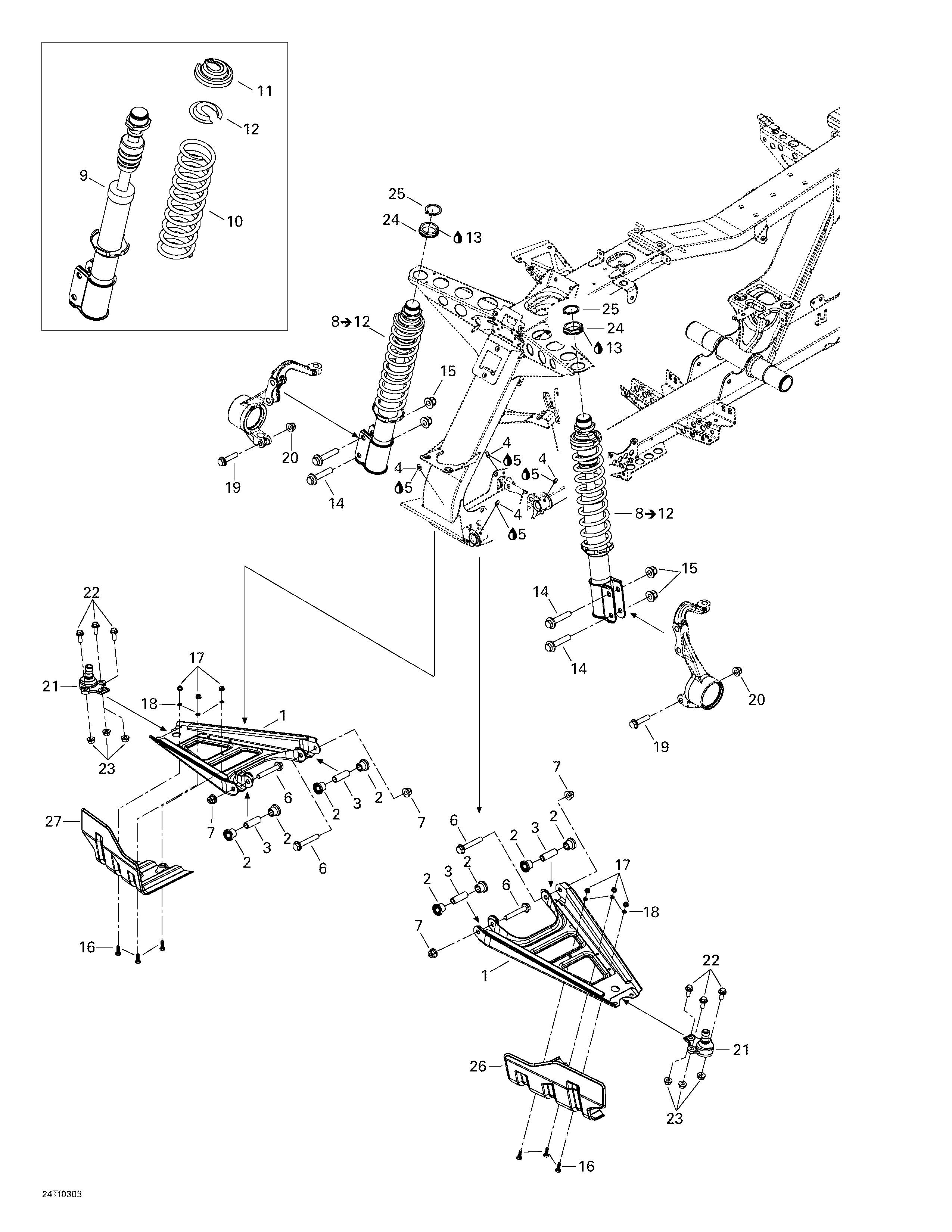

07- Front Suspension для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1706200229 Suspension armSuspension arm
-
2706200181 CushionCushion
-
3706200182 Inner bushingInner bushing
-
4408200700 Grease fittingGrease fitting
-
5293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
6207606546 Hex flanged screw M10 x 65Hex flanged screw M10 x 65
-
7233201416 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
9706200215 Front shockFront shock
-
10706200216 Front springFront spring
-
11706200218 Spring stopperSpring stopper
-
12706200219 CapCap
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14207626046 Hex flanged screw M12 x 60Hex flanged screw M12 x 60
-
15233221414 Hex flanged elastic nut M12Hex flanged elastic nut M12
-
16207151644 Hex screw M5 x 16Hex screw M5 x 16
-
17233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
18391301700 WasherWasher
-
19207604544 Hex flanged screw M10 x 45Hex flanged screw M10 x 45
-
20233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
21706200231 Joint attachJoint attach
-
22207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
23233081416 Hex flanged nut M8Hex flanged nut M8
-
24706200210 NutNut
-
25293370009 Circlip 32 mmCirclip 32 mm
-
26706200213 LH protectorLH protector
-
27706200214 R.h. protectorR.h. protector
