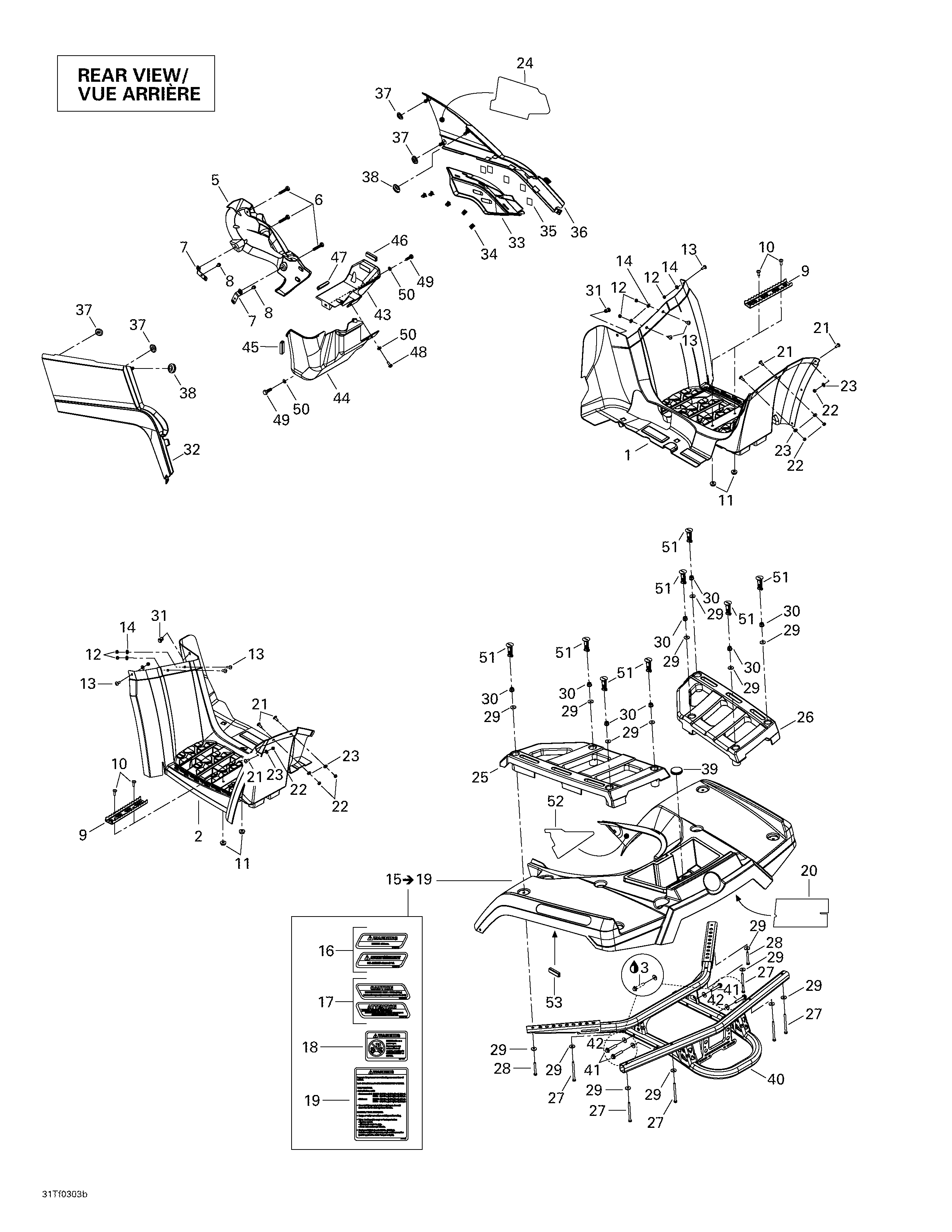

09- Body And Accessories, Rear View для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1705000417 R.h. footboardR.h. footboard
-
2705000427 L.h. footboardL.h. footboard
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4704900472 Warning label. Tire pressure (english)Warning label. Tire pressure (english)
-
5705000514 Engine coverEngine cover
-
6210261680 Hex forming screw M6 x 16Hex forming screw M6 x 16
-
7705000657 Motor cover supportMotor cover support
-
8210261080 Hex forming screw M6 x 10Hex forming screw M6 x 10
-
9705000428 Foot pegFoot peg
-
10211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
11233261414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
12232561414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
13211000121 Phillips screw M6 x 16Phillips screw M6 x 16
-
14391302000 Flat washerFlat washer
-
15703500272 Rear fender. Includes 15 - 19.Rear fender. Includes 15 - 19.
-
16704900483 Warning label. Do not sitWarning label. Do not sit
-
17704900432 Warning label. Rear loadWarning label. Rear load
-
18704900005 Warning label. Passenger (english)Warning label. Passenger (english)
-
19704900472 Warning label. Tire pressure (english)Warning label. Tire pressure (english)
-
20705000715 Reflective sheetReflective sheet
-
21211000121 Phillips screw M6 x 16Phillips screw M6 x 16
-
22232561414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
23391302000 Flat washerFlat washer
-
24705000750 Reflective sheetReflective sheet
-
25705000434 L.h. rear luggage rackL.h. rear luggage rack
-
26705000435 R.h. rear luggage rackR.h. rear luggage rack
-
27207168044 Hex screw M6 x 80Hex screw M6 x 80
-
28207165044 Hex screw M6 x 50Hex screw M6 x 50
-
29224061201 Flat washerFlat washer
-
30233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
31293150089 Rivet tuflokRivet tuflok
-
32705000438 L.h. side panelL.h. side panel
-
33705000689 Silencer coverSilencer cover
-
34517302785 ClipClip
-
35705000809 Reflective sheetReflective sheet
-
36705000439 R.h. side panelR.h. side panel
-
37705005156 Oblong WasherOblong Washer
-
38293720053 GrommetGrommet
-
39570041600 Rubber coverRubber cover
-
40705000442 Rear supportRear support
-
41207684544 Hex flanged screw M8 x 45Hex flanged screw M8 x 45
-
42234082410 Flat washer M8Flat washer M8
-
43705000554 R.h. protectorR.h. protector
-
44705000555 L.h. protectorL.h. protector
-
45293200017 Tray sealTray seal
-
46293200017 Tray sealTray seal
-
47293200017 Tray sealTray seal
-
48207561644 Hex flanged screw M6 x 16 (scotch grip)Hex flanged screw M6 x 16 (scotch grip)
-
49210261680 Hex forming screw M6 x 16Hex forming screw M6 x 16
-
50391302000 Flat washerFlat washer
-
51705000656 Protector plugProtector plug
-
52705000714 Reflective sheetReflective sheet
-
53293200017 Tray sealTray seal
