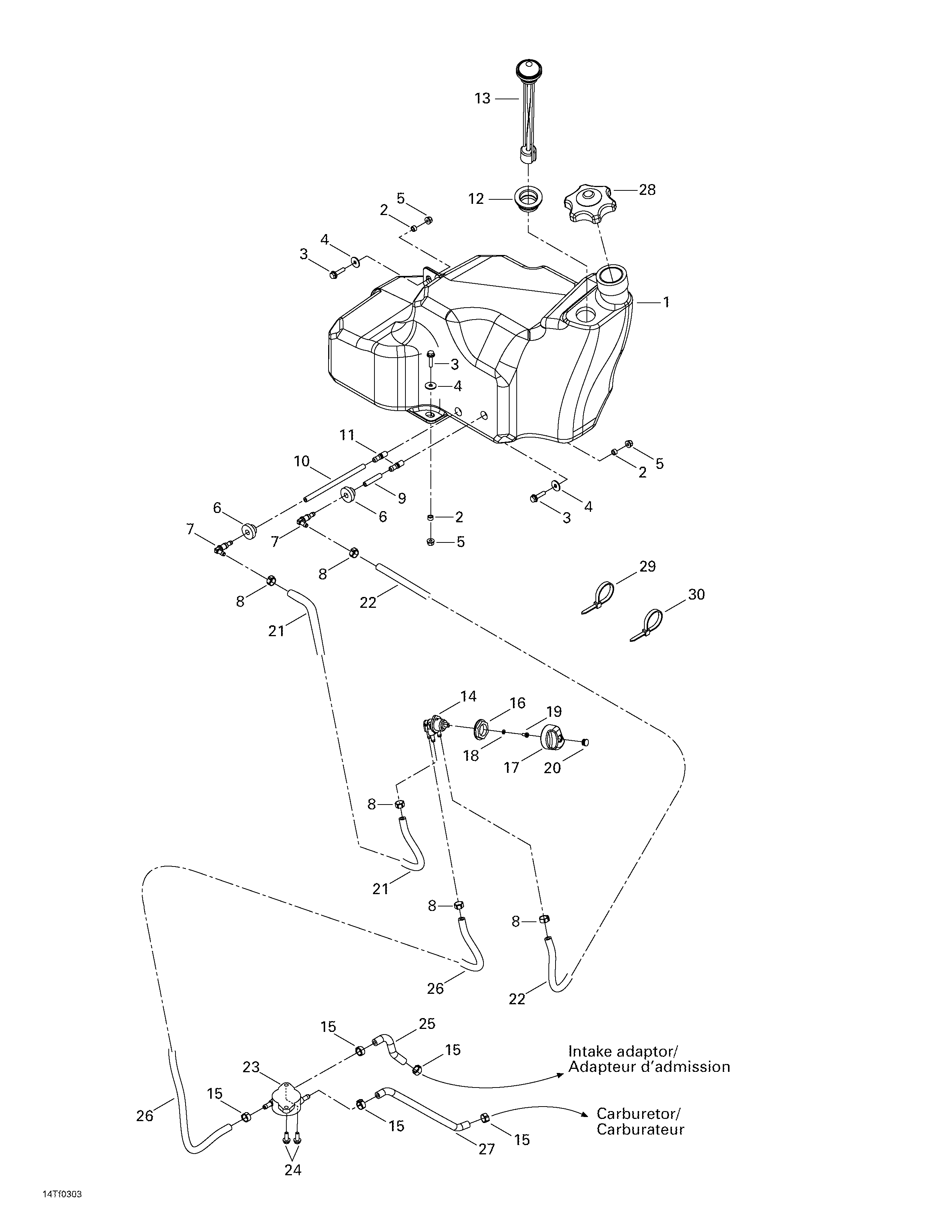

02- Fuel Tank для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1709000062 Fuel tankFuel tank
-
2293900029 BushingBushing
-
3207662544 Hex flanged screw M6 x25Hex flanged screw M6 x25
-
4224061201 Flat washerFlat washer
-
5233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
6570045500 GrommetGrommet
-
7414580600 Elbow Male ConnectorElbow Male Connector
-
8293650042 Oetiker clampOetiker clamp
-
9415080200 Polyurethane hosePolyurethane hose
-
10415080200 Polyurethane hosePolyurethane hose
-
11414865700 Fuel filterFuel filter
-
12293720058 GrommetGrommet
-
13709000065 Fuel gaugeFuel gauge
-
14275500098 Fuel valveFuel valve
-
15414415200 Spring clampSpring clamp
-
16212100009 Hex plastic nutHex plastic nut
-
17275500263 Fuel valve knobFuel valve knob
-
18234040600 Flat washer M4Flat washer M4
-
19208640860 Phillips screw M4 x 8Phillips screw M4 x 8
-
20275500241 Fuel valve cap plugFuel valve cap plug
-
21415079800 Hose 1/4''Hose 1/4''
-
22415079800 Hose 1/4''Hose 1/4''
-
23707200183 Fuel pumpFuel pump
-
24210261680 Hex flanged forming screw M6 x 16Hex flanged forming screw M6 x 16
-
25709000063 Pulsation formed hosePulsation formed hose
-
26415079800 Hose 1/4''Hose 1/4''
-
27415079800 Hose 1/4''Hose 1/4''
-
28709000059 Fuel capFuel cap
-
29414115200 Tie-rapTie-rap
-
30293750002 Tie-rap 130 mmTie-rap 130 mm
