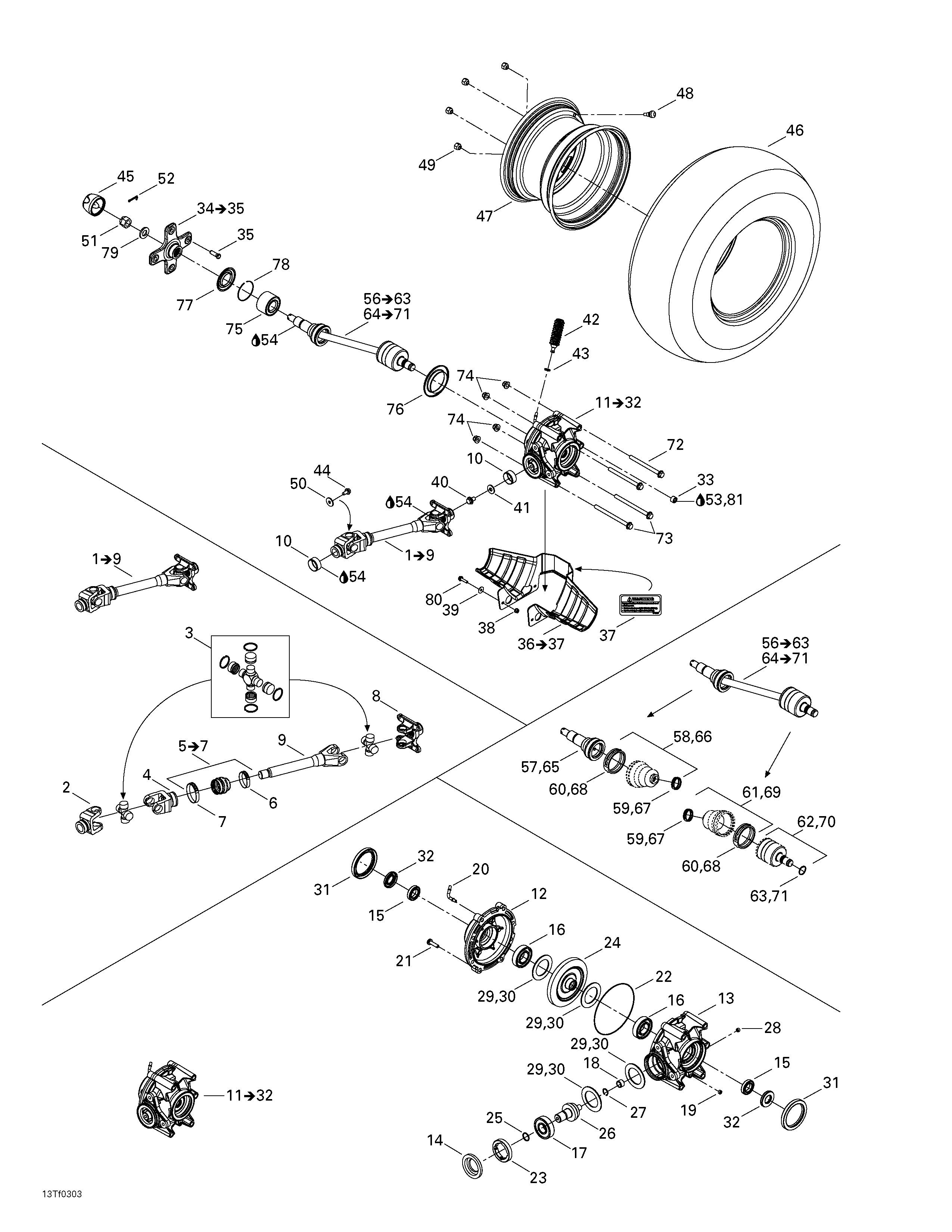

05- Drive System, Rear для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1703500706 Drive axle ass'y. Includes 1 - 9.Drive axle ass'y. Includes 1 - 9.
-
2705500348 Fix jointFix joint
-
3703500002 Unit pack kitUnit pack kit
-
5703500255 Rubber boot kit. Includes 5 - 7.Rubber boot kit. Includes 5 - 7.
-
6705400148 CollarCollar
-
7293650138 Oetiker clampOetiker clamp
-
8705500351 Disc jointDisc joint
-
9705500352 AxleAxle
-
10705400036 Wear ringWear ring
-
11705500325 Differential. Includes 11 - 32.Differential. Includes 11 - 32.
-
12705500326 Differential CapDifferential Cap
-
13705500324 Differential CarrierDifferential Carrier
-
14705400027 Oil sealOil seal
-
15293350044 Ball bearingBall bearing
-
16705500259 Ball bearingBall bearing
-
17705500260 Ball bearingBall bearing
-
18705500261 Needle bearingNeedle bearing
-
19705500245 Drain plugDrain plug
-
20705500262 Vent valveVent valve
-
21705500264 ScrewScrew
-
22705500265 SealSeal
-
23705500266 NutNut
-
24705500416 Gear (36 teeth)Gear (36 teeth)
-
25705500267 O-ringO-ring
-
26705500268 Gear (10 teeth)Gear (10 teeth)
-
27705500269 Retaining ringRetaining ring
-
28705500246 Protection plugProtection plug
-
29705500075 Pinion gear shim (.022'')Pinion gear shim (.022'')
-
30705500079 Differential shim (.022'')Differential shim (.022'')
-
31293250139 Oil sealOil seal
-
32705500255 Oil sealOil seal
-
33705500228 Fill level plugFill level plug
-
34705500361 Wheel hub ass'y. Includes 34 - 35.Wheel hub ass'y. Includes 34 - 35.
-
35250300020 Wheel studWheel stud
-
36705500436 ProtectorProtector
-
37704900009 Warning label (hitch)Warning label (hitch)
-
38233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
39224060201 Flat washerFlat washer
-
40250000060 Hex flanged screw M10 x 16 (scotch grip)Hex flanged screw M10 x 16 (scotch grip)
-
41250200014 Flat washerFlat washer
-
42705400066 Rubber bellowRubber bellow
-
43293750001 Tie-rap 94 mmTie-rap 94 mm
-
44207581646 Hex flanged screw M8 x 16 (scotch grip)Hex flanged screw M8 x 16 (scotch grip)
-
45705400012 Wheel capWheel cap
-
46705500441 Rear tireRear tire
-
47705500366 Rear rimRear rim
-
48705400193 Rim valveRim valve
-
49250100042 Wheel nutWheel nut
-
50211200041 WasherWasher
-
51232291413 Hex castellated nut M18Hex castellated nut M18
-
52250400016 Cotter pinCotter pin
-
53293600011 Redline pump oil, 75W90, 12 x 6 ozRedline pump oil, 75W90, 12 x 6 oz
-
54293550033 Synthetic greaseSynthetic grease
-
55293500010 Synthetic grease, 400 gSynthetic grease, 400 g
-
56705500446 LH drive axle. Includes 56 - 63.LH drive axle. Includes 56 - 63.
-
57705500468 Cv jointCv joint
-
58705500469 Boot wheel kitBoot wheel kit
-
59705400064 ClampClamp
-
60705400180 ClampClamp
-
61705500428 Boot kitBoot kit
-
62705500427 Plunging jointPlunging joint
-
63705400042 CirclipCirclip
-
64705500447 R.h. drive axle. Includes 64 - 71.R.h. drive axle. Includes 64 - 71.
-
65705500468 Cv jointCv joint
-
66705500469 Boot wheel kitBoot wheel kit
-
67705400064 ClampClamp
-
68705400180 ClampClamp
-
69705500428 Boot kitBoot kit
-
70705500427 Plunging jointPlunging joint
-
71705400042 CirclipCirclip
-
72230602546 Hex flanged screw M10 x 125Hex flanged screw M10 x 125
-
73230604046 Hex flanged screw M10 x 140Hex flanged screw M10 x 140
-
74233201416 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
75293350048 Cone bearingCone bearing
-
76705500382 Wear sleeveWear sleeve
-
77705500372 Exterior wear sleeveExterior wear sleeve
-
78293370034 CirclipCirclip
-
79250200019 WasherWasher
-
80207662544 Hex flanged screw M6 x 25Hex flanged screw M6 x 25
-
81293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
