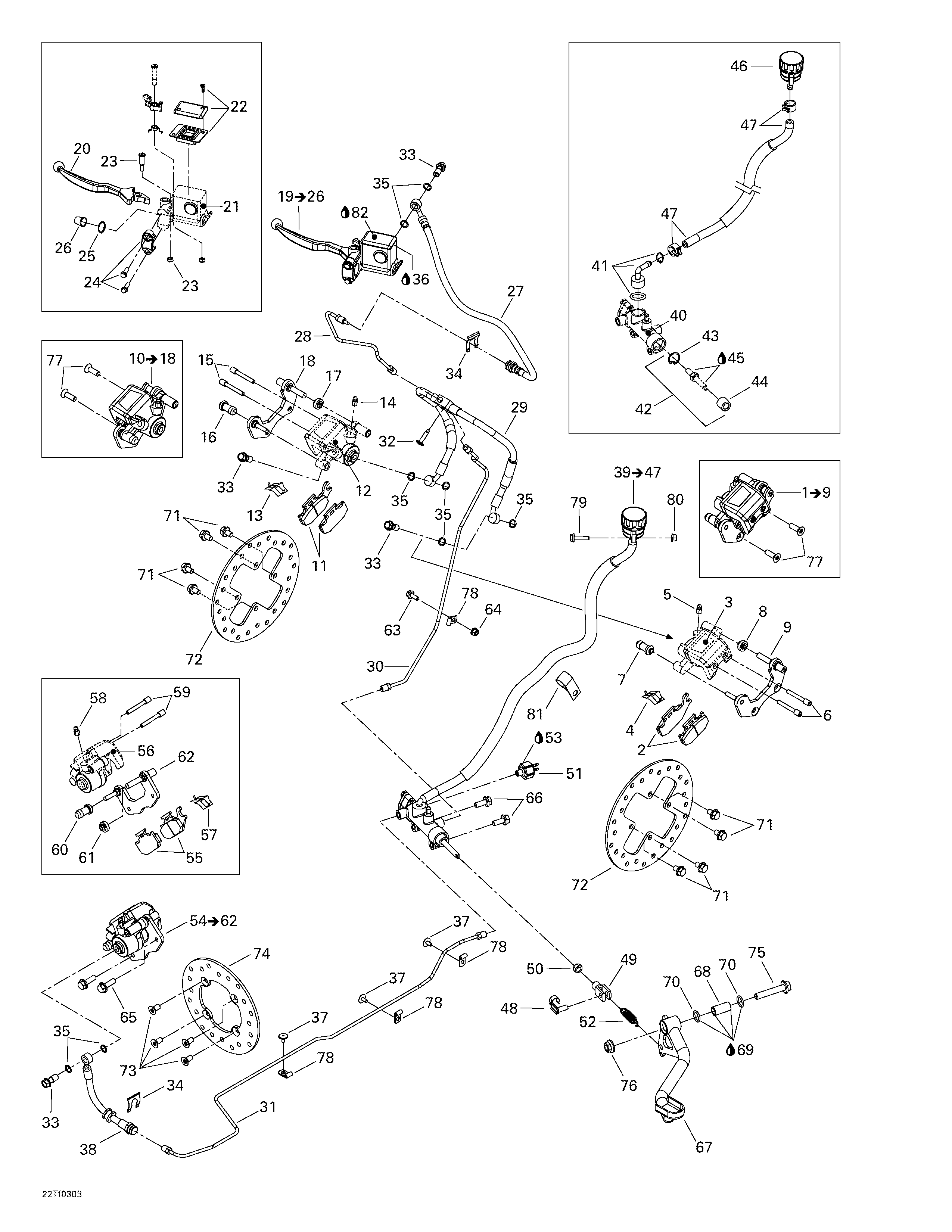

06- Hydraulic Brake для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1705600238 R.h. caliper. Includes 1 - 9.R.h. caliper. Includes 1 - 9.
-
2705600349 Brake Pad KitBrake Pad Kit
-
3705600294 Piston setPiston set
-
4705600079 SpringSpring
-
5705600080 Bleeder screwBleeder screw
-
6705600081 Pin setPin set
-
7705600082 Compression bootCompression boot
-
8705600083 Compression bootCompression boot
-
9705600297 R.h. caliper supportR.h. caliper support
-
10705600240 LH caliper. Includes 10 - 18.LH caliper. Includes 10 - 18.
-
11705600350 RH Brake Pad KitRH Brake Pad Kit
-
12705600294 Piston setPiston set
-
13705600079 SpringSpring
-
14705600080 Bleeder screwBleeder screw
-
15705600081 Pin setPin set
-
16705600082 Compression bootCompression boot
-
17705600083 Compression bootCompression boot
-
19705600242 Front master cylinder. Includes 19 - 26.Front master cylinder. Includes 19 - 26.
-
20705600243 Lever armLever arm
-
21705600244 Piston kitPiston kit
-
22705600084 Boot kitBoot kit
-
23705600246 Bolt kitBolt kit
-
24705600087 Bracket kitBracket kit
-
25705600088 CirclipCirclip
-
26705600089 Compression bootCompression boot
-
27705600209 Front brake handle hoseFront brake handle hose
-
28705600206 Vertical tubeVertical tube
-
29705600211 Brake hoseBrake hose
-
30705600252 Union tubeUnion tube
-
31705600210 Rear rigid tubeRear rigid tube
-
32250000081 Button head screw M6 x 25Button head screw M6 x 25
-
33705600056 Banjo boltBanjo bolt
-
34705600253 Hose retainerHose retainer
-
35414920600 Washer for hose connectionWasher for hose connection
-
36413710300 Sealant, loctite 17914, 80 mlSealant, loctite 17914, 80 ml
-
37390406500 Pop rivet 3/16''Pop rivet 3/16''
-
38705600208 Flexible hoseFlexible hose
-
39705600254 Rear master cylinder. Includes 39 - 47.Rear master cylinder. Includes 39 - 47.
-
40705600255 Piston setPiston set
-
41705600064 Pusher bracketPusher bracket
-
42705600154 Rod ass'yRod ass'y
-
43705600068 CirclipCirclip
-
44705600090 Compression bootCompression boot
-
46705600182 Oil tankOil tank
-
47705600262 Oil housing hoseOil housing hose
-
48250400007 PinPin
-
49705600100 YokeYoke
-
50232081414 Hex nut M8Hex nut M8
-
51710000099 Brake switchBrake switch
-
52705600098 Break pedal springBreak pedal spring
-
53293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
54705600263 Rear caliper. Includes 54 - 62.Rear caliper. Includes 54 - 62.
-
55705600014 Brake pad kitBrake pad kit
-
56705600295 Piston setPiston set
-
57705600079 SpringSpring
-
58705600080 Bleeder screwBleeder screw
-
59705600081 Pin setPin set
-
60705600082 Compression bootCompression boot
-
61705600083 Compression bootCompression boot
-
62705600298 LH caliper supportLH caliper support
-
63207661644 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
64233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
65207582544 Hex flanged screw M8 x 25 (scotch grip)Hex flanged screw M8 x 25 (scotch grip)
-
66207582044 Hex flanged screw M8 x 20 (scotch grip)Hex flanged screw M8 x 20 (scotch grip)
-
67705600265 Brake pedalBrake pedal
-
68705600283 SpacerSpacer
-
69293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
70293300053 O-ringO-ring
-
71207581244 Hex flanged screw M8 x 12 (scotch grip)Hex flanged screw M8 x 12 (scotch grip)
-
72705600279 Front brake discFront brake disc
-
73235381646 Hex flanged screw M8 x 16 (scotch grip)Hex flanged screw M8 x 16 (scotch grip)
-
74705600271 Brake discBrake disc
-
75207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
76233201414 Hex flanged nut M10Hex flanged nut M10
-
77235382546 Hex flanged screw M8 x 25 (scotch grip)Hex flanged screw M8 x 25 (scotch grip)
-
78705600308 Open clampOpen clamp
-
79207662544 Hex flanged screw M6 x 25Hex flanged screw M6 x 25
-
80233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
80293600063 Brake fluid, SRF (DOT 4)Brake fluid, SRF (DOT 4)
-
293600062 Brake fluid, GTLMA (DOT 4) 12 x 354 mlBrake fluid, GTLMA (DOT 4) 12 x 354 ml
