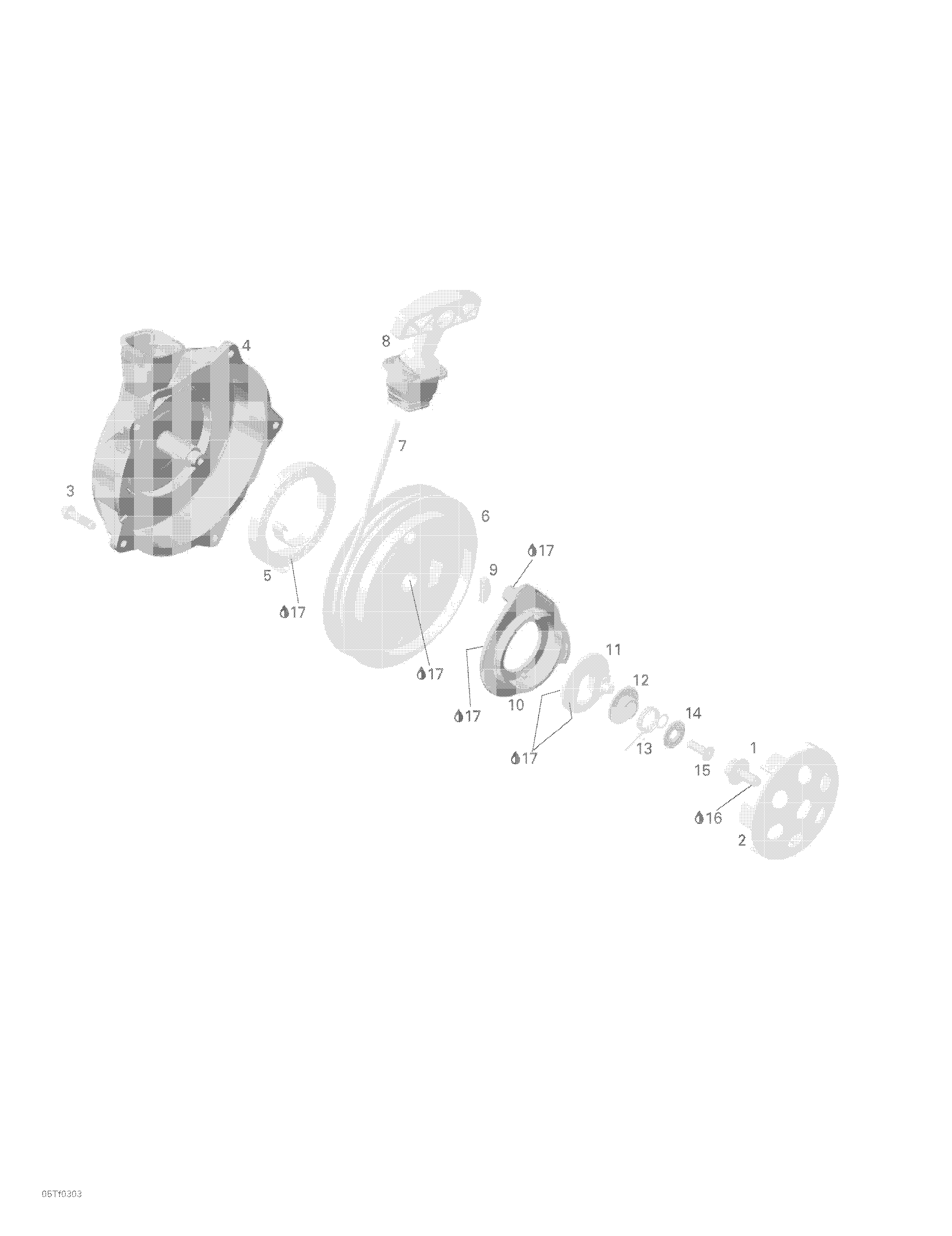

04- Rewind Starter для BRP Outlander 400 - 2003
-
№АртикулНазвание
-
1420241721 Hex collar screw M8 x 20Hex collar screw M8 x 20
-
2420852501 Starting pulleyStarting pulley
-
3420240031 Hex screw M6 x 25Hex screw M6 x 25
-
4420684290 Rewind Starter Ass'y. Includes 4 - 15.Rewind Starter Ass'y. Includes 4 - 15.
-
4420610930 Starter housingStarter housing
-
5420939115 Rewind SpringRewind Spring
-
6420852283 Rope sheaveRope sheave
-
7412500100 Starter rope (1 meter)Starter rope (1 meter)
-
8420852555 Starting grip with rubber bufferStarting grip with rubber buffer
-
9420852070 Key clampKey clamp
-
10420852299 PawlPawl
-
11420852306 Lock pawlLock pawl
-
12420847927 Stage sleeveStage sleeve
-
13420938989 Locking springLocking spring
-
14420244320 Flat washerFlat washer
-
15420241730 Plastite screw M6 x 20Plastite screw M6 x 20
-
16293800060 Loctite 243, blue, 10 ccLoctite 243, blue, 10 cc
-
17420899763 Molykote PG 54 , 10 gMolykote PG 54 , 10 g
