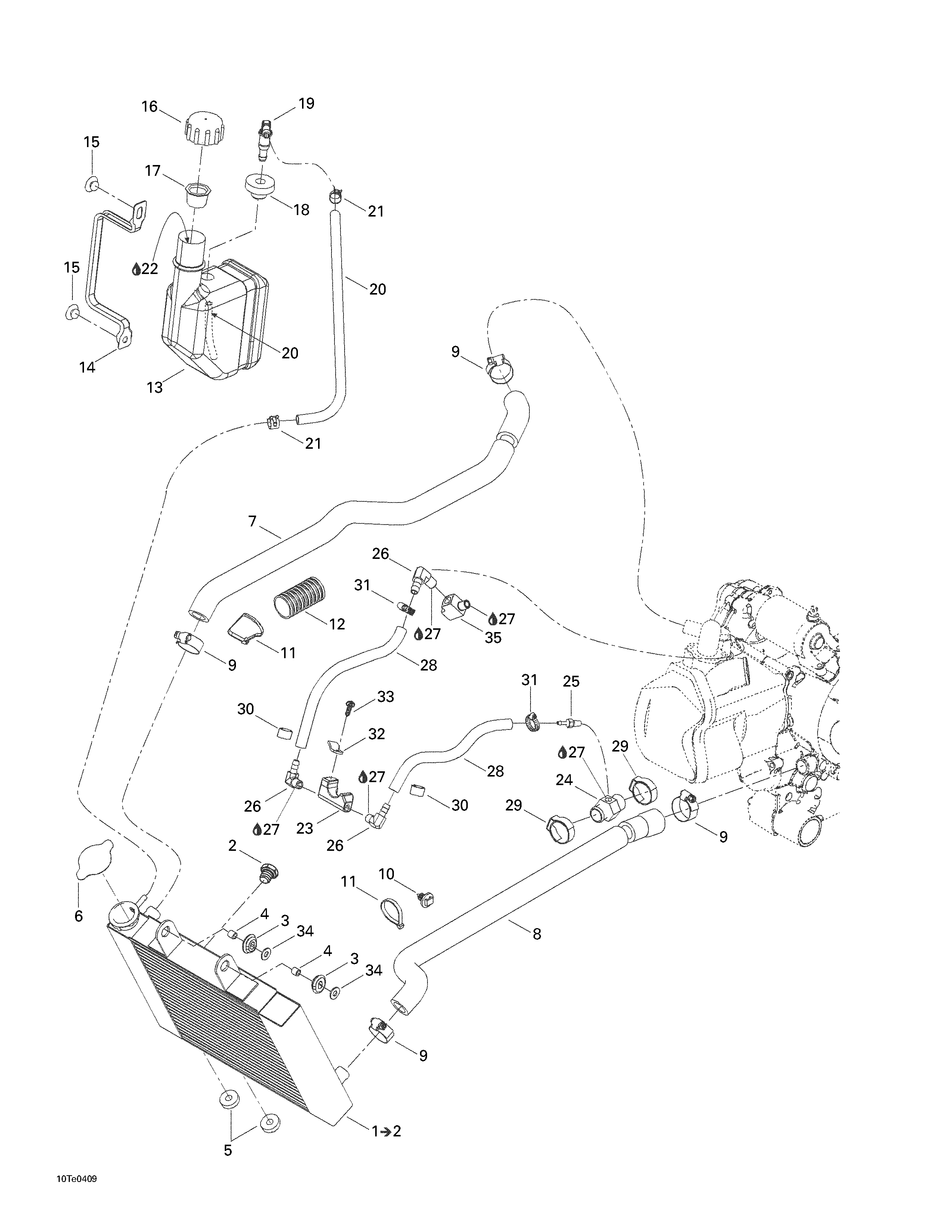

01- Cooling System для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1709200106 Radiator Ass'y. Includes 1 - 2.Radiator Ass'y. Includes 1 - 2.
-
2250500006 PlugPlug
-
3705005156 Oblong WasherOblong Washer
-
4293900045 BushingBushing
-
5570135100 GrommetGrommet
-
6709200033 Pressure CapPressure Cap
-
7709200066 Inlet Radiator HoseInlet Radiator Hose
-
8709200067 Outlet Radiator HoseOutlet Radiator Hose
-
9293650051 Tridon Gear ClampTridon Gear Clamp
-
10293730018 Mount DartMount Dart
-
11414115200 Tie RapTie Rap
-
12709200031 Protective ShieldProtective Shield
-
13709200099 Coolant TankCoolant Tank
-
14709200080 Tank AnchorTank Anchor
-
15390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
16709200009 Tank CapTank Cap
-
17709200034 Cap ProtectorCap Protector
-
18570135100 GrommetGrommet
-
19414580600 Elbow Male ConnectorElbow Male Connector
-
20415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
21414554800 Spring ClampSpring Clamp
-
23709200096 Block HeaterBlock Heater
-
24709200097 AdapterAdapter
-
25293710037 Male ConnectorMale Connector
-
26293700016 Elbow FittingElbow Fitting
-
27413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
28415079800 HoseHose
-
29293650141 ClampClamp
-
30293650125 ClampClamp
-
31293650128 Hose ClampHose Clamp
-
32709200116 LockLock
-
33208640860 Pan Screw M4 x 8Pan Screw M4 x 8
-
34224060251 Flat WasherFlat Washer
-
35293700043 T-FittingT-Fitting
