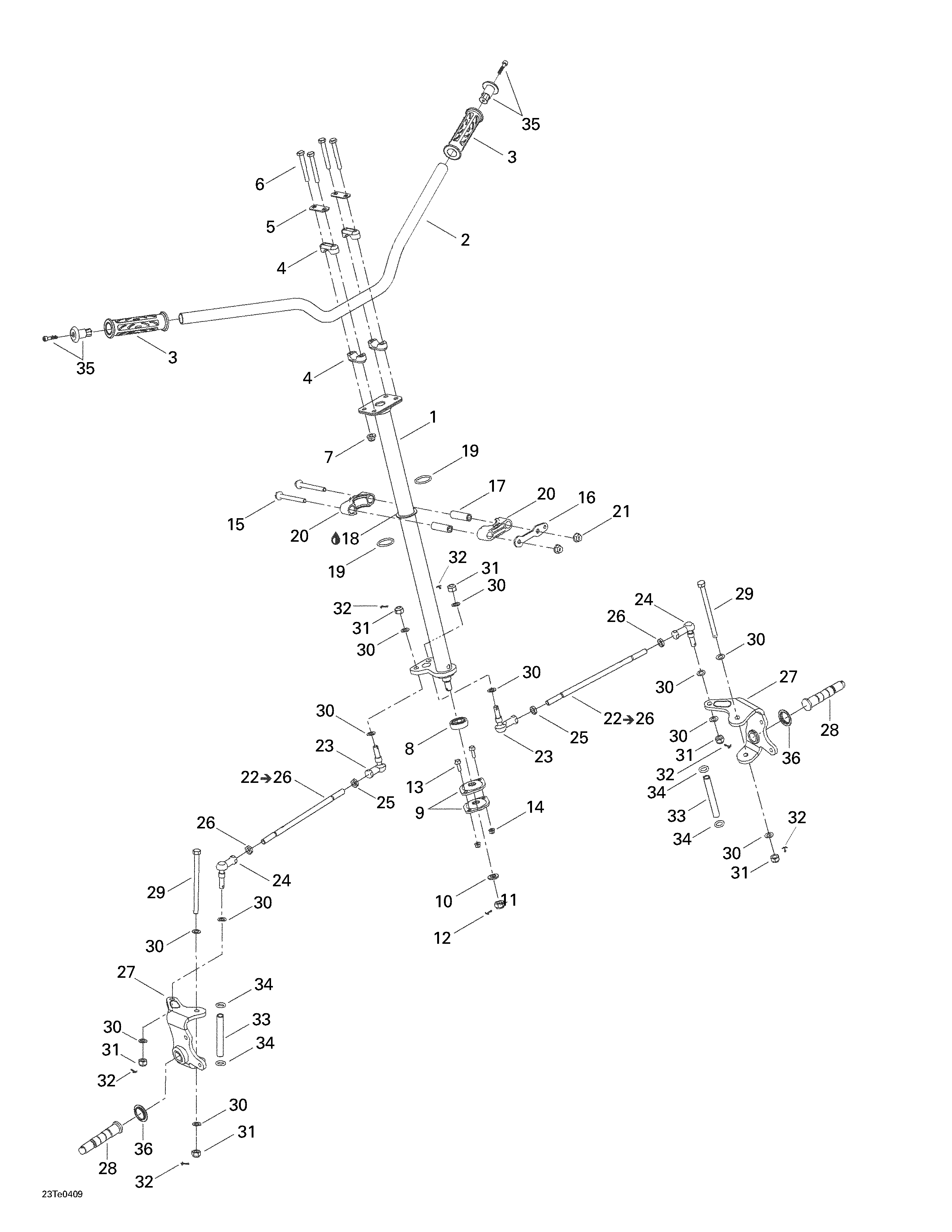

07- Steering System для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1709400231 Main TubeMain Tube
-
2709400105 Handle BarHandle Bar
-
3709400157 Handle Bar GripHandle Bar Grip
-
4506151622 Steering SupportSteering Support
-
5506151196 ReinforcementReinforcement
-
6207086044 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8709400224 Bearing ThrustBearing Thrust
-
9709400152 Thrust WasherThrust Washer
-
10234021410 Flat Washer M12Flat Washer M12
-
11250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
12211400017 Cotter PinCotter Pin
-
13207562044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15207687044 Hex. Flanged Screw M8 x 70Hex. Flanged Screw M8 x 70
-
16709400053 Stopper PlateStopper Plate
-
17709400072 BushingBushing
-
18293550010 Synthetic Grease, 400gSynthetic Grease, 400g
-
19293300068 O-RingO-Ring
-
20709400052 Half BushingHalf Bushing
-
21233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
22709400147 Tie Rod Ass'y. Includes 22 - 26.Tie Rod Ass'y. Includes 22 - 26.
-
23709400148 R.H. Ball JointR.H. Ball Joint
-
24709400149 L.H. Ball JointL.H. Ball Joint
-
25732610010 R.H. Hex. Jam Nut M10R.H. Hex. Jam Nut M10
-
26250100016 L.H. Hex. Jam Nut M10L.H. Hex. Jam Nut M10
-
27709400108 L.H. KnuckleL.H. Knuckle
-
709400109 R.H. KnuckleR.H. Knuckle
-
28709400135 Wheel AxleWheel Axle
-
29709400150 Axle ScrewAxle Screw
-
30503175800 WasherWasher
-
31232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32211400013 Cotter PinCotter Pin
-
33709400110 Pivot BushingPivot Bushing
-
34414549700 O-RingO-Ring
-
35709400189 End PieceEnd Piece
-
36705400056 Wear RingWear Ring
