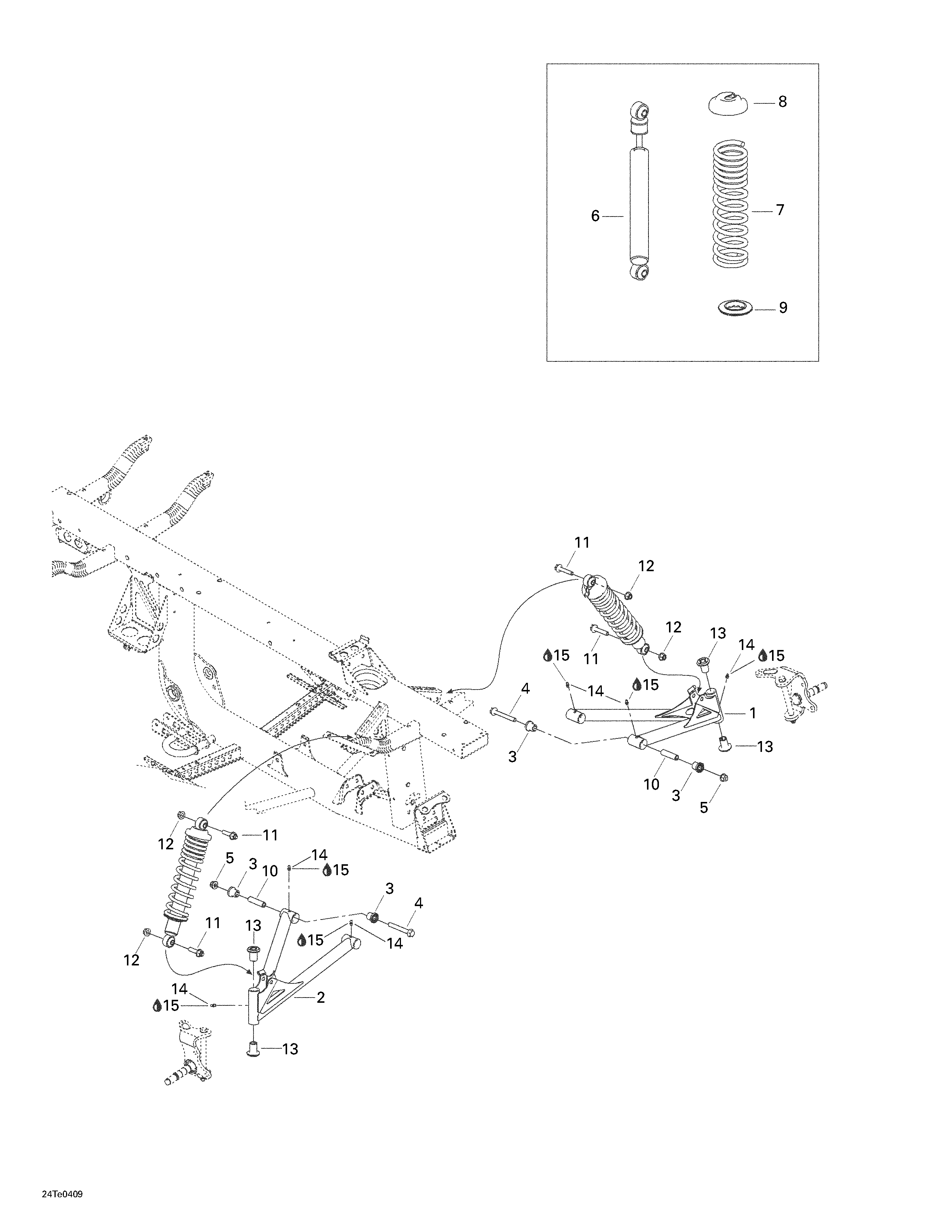

07- Front Suspension для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1706200175 L.H. ArmL.H. Arm
-
2706200176 R.H. ArmR.H. Arm
-
3706200063 CushionCushion
-
4207608044 Hex. Flanged Screw M10 x 80Hex. Flanged Screw M10 x 80
-
5233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
6706200183 Front ShockFront Shock
-
7706200240 Front SpringFront Spring
-
8503140600 Spring StopperSpring Stopper
-
9706000197 Spring SeatSpring Seat
-
10706200177 Inner BushingInner Bushing
-
11207605044 Hex. Flanged Screw M10 x 50Hex. Flanged Screw M10 x 50
-
12233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
13706200169 CushionCushion
-
14408200700 Grease FittingGrease Fitting
-
15293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
