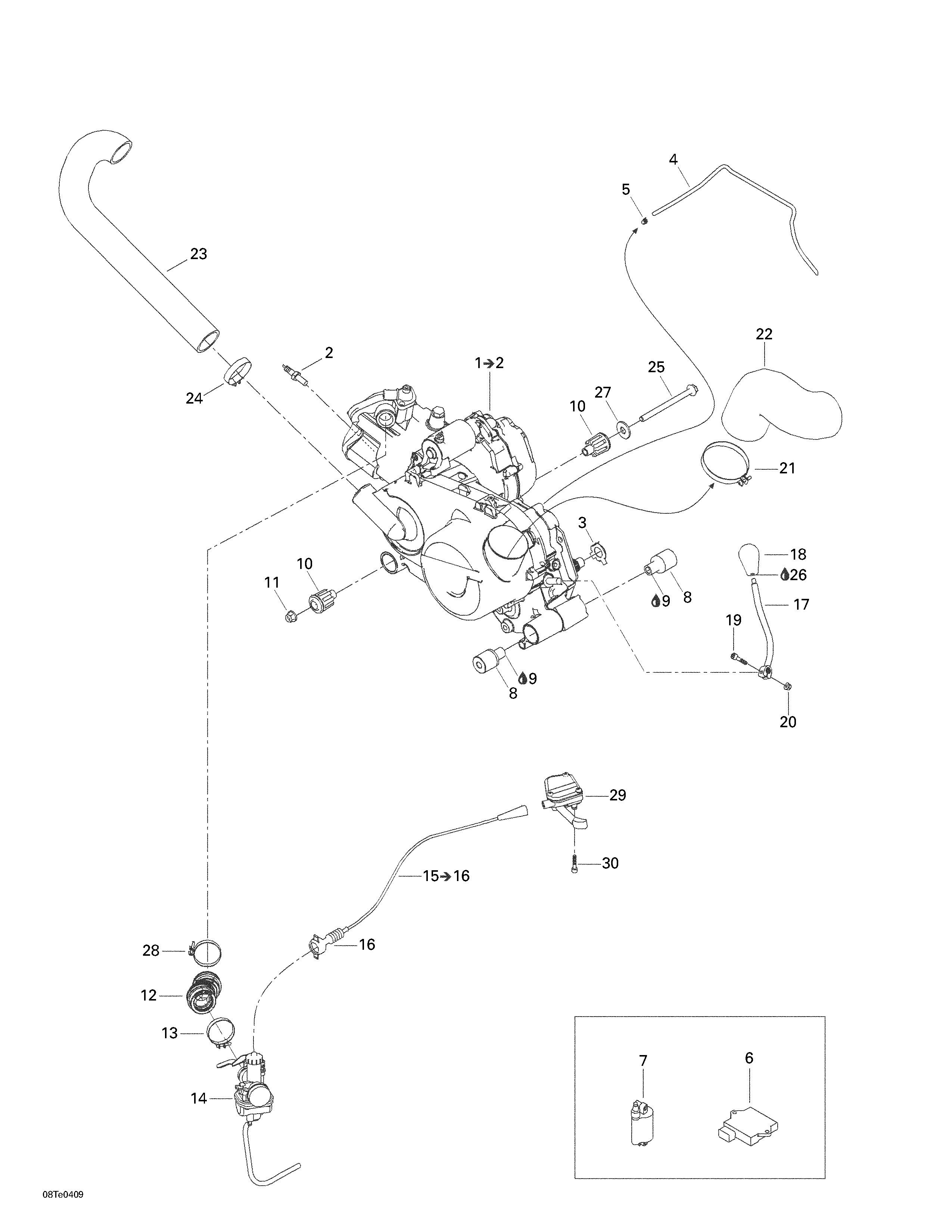

01- Engine для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1707000193 Engine 175 CC. Includes 1 - 2.Engine 175 CC. Includes 1 - 2.
-
2707000306 Spark PlugSpark Plug
-
3707000215 Tab WasherTab Washer
-
4415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
5414554800 Spring ClampSpring Clamp
-
6420265634 Electronic ModuleElectronic Module
-
7420265418 Ignition CoilIgnition Coil
-
8707000237 Rear BushingRear Bushing
-
9293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
10707000244 Front BushingFront Bushing
-
11233201416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
12707000195 Carburetor AdaptorCarburetor Adaptor
-
13293650151 ClampClamp
-
14707200169 CarburetorCarburetor
-
15707000318 Throttle Cable. Includes 15 - 16.Throttle Cable. Includes 15 - 16.
-
16293000101 PlugPlug
-
17707000198 Shifter LeverShifter Lever
-
18705500022 Lever ButtonLever Button
-
19205063087 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
20232061487 Hex. Nut M6Hex. Nut M6
-
21293650152 Gemi ClampGemi Clamp
-
22707000202 ExhaustExhaust
-
23707000203 Air IntakeAir Intake
-
24293650153 ClampClamp
-
25230503046 Hex. Flanged Screw M10 x 130Hex. Flanged Screw M10 x 130
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27707000291 WasherWasher
-
28A9451648000 ClampClamp
-
29709400142 Throttle HandleThrottle Handle
-
30205452046 Socket Head Screw M5 x 20Socket Head Screw M5 x 20
