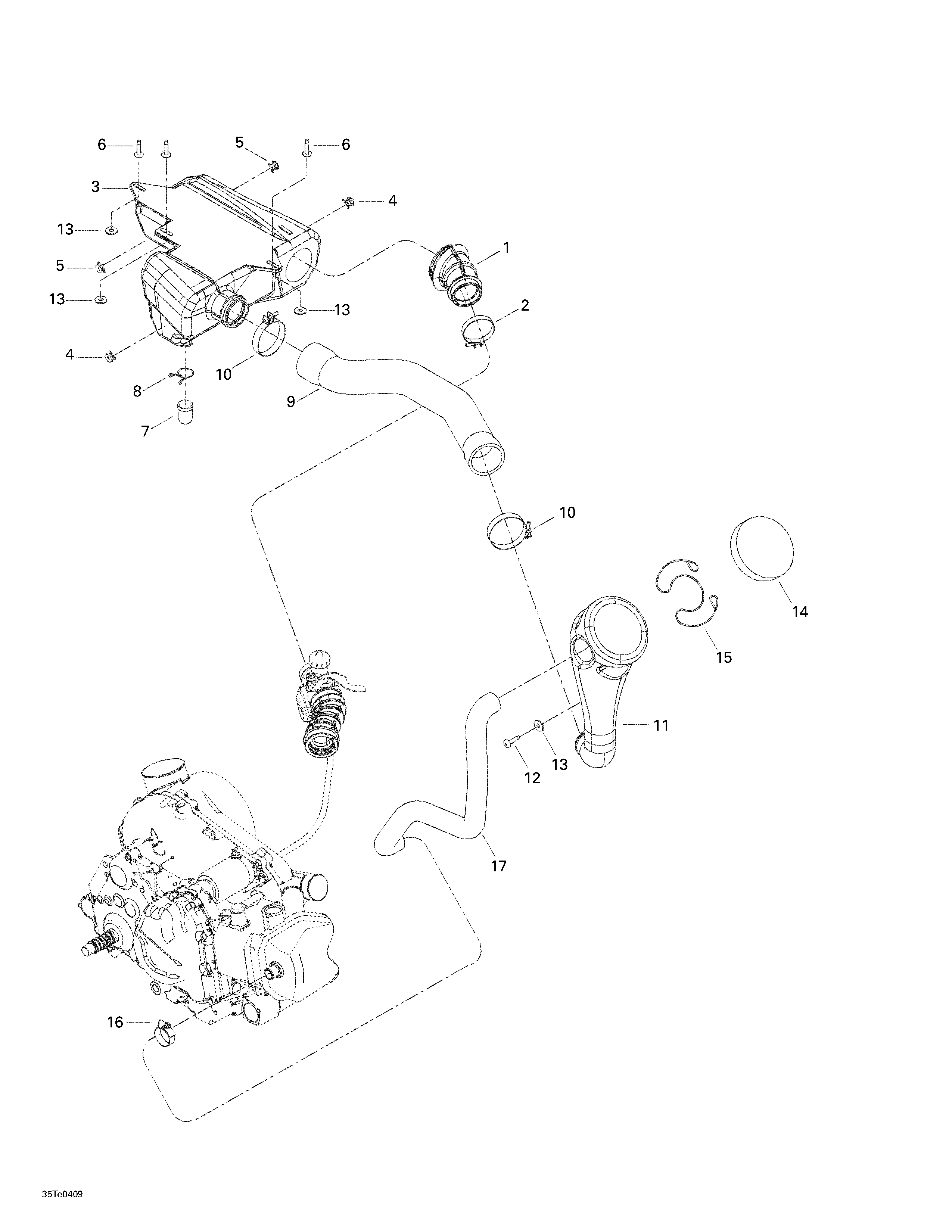

02- Air Intake Silencer для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1707800103 Intake AdaptorIntake Adaptor
-
2293650151 Gemi ClampGemi Clamp
-
3707800102 Intake SilencerIntake Silencer
-
4250100041 Jack Nut M6Jack Nut M6
-
5732610057 Jack Nut M6Jack Nut M6
-
6210262080 Hex. Flanged Forming Screw M6 x 20Hex. Flanged Forming Screw M6 x 20
-
7707800080 Drain TubeDrain Tube
-
8707800081 Retainer ClipRetainer Clip
-
9707800101 Vent HoseVent Hose
-
10293650155 Gemi ClampGemi Clamp
-
11707800104 Vent HoseVent Hose
-
12250000081 Torx Screw M6 x 25Torx Screw M6 x 25
-
13391302000 Flat WasherFlat Washer
-
14707800100 FoamFoam
-
15707800135 BracketBracket
-
16293650142 Hose ClampHose Clamp
-
17707800106 Vent HoseVent Hose
