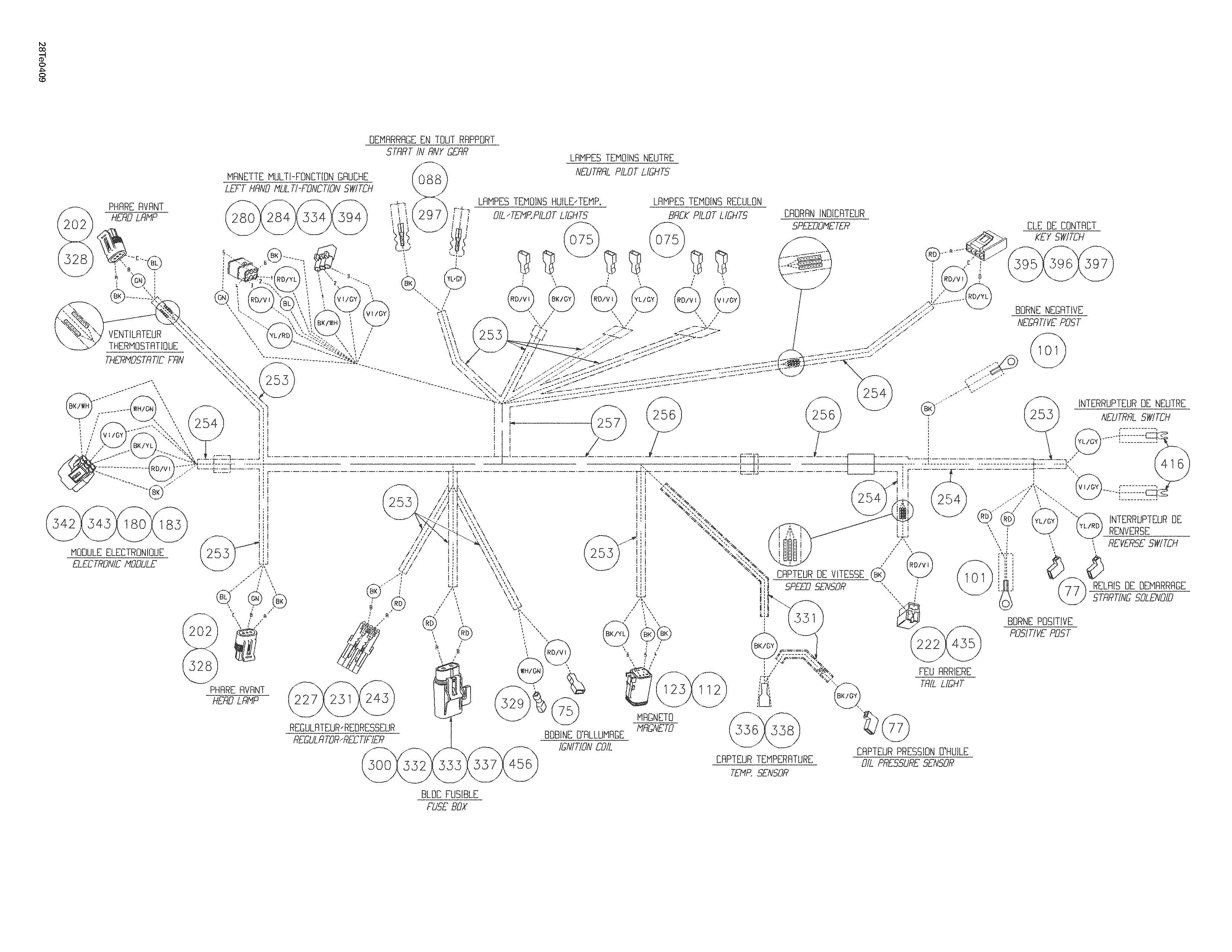

10- Main Harness для BRP Rally 175 - 2004
-
№АртикулНазвание
-
75710000379 Harness Ass'y. Includes 75 - 456.Harness Ass'y. Includes 75 - 456.
-
75409010700 Female TerminalFemale Terminal
-
77409010300 Female TerminalFemale Terminal
-
88278001009 Female TerminalFemale Terminal
-
101278001392 Open BarrelOpen Barrel
-
112278000632 Female TerminalFemale Terminal
-
123278000736 Male Housing (6 circuits)Male Housing (6 circuits)
-
180278001638 Female TerminalFemale Terminal
-
183710000189 Joint SealJoint Seal
-
202278001114 Female TerminalFemale Terminal
-
222409204300 Female HousingFemale Housing
-
227409004300 Male TerminalMale Terminal
-
231278000217 Female Housing Tab (2 circuits)Female Housing Tab (2 circuits)
-
242278000218 Wire SealWire Seal
-
253515175442 HousingHousing
-
254409901700 Gaine 9 mmGaine 9 mm
-
256415080000 Gaine 16 mmGaine 16 mm
-
257409901600 GaineGaine
-
280409012100 Female TerminalFemale Terminal
-
284409012300 SealSeal
-
297278001007 Insulating SheathInsulating Sheath
-
300278000343 Fuse (15 Amp.)Fuse (15 Amp.)
-
328278001467 Male Housing Tab (3 circuits)Male Housing Tab (3 circuits)
-
329710000082 Female TerminalFemale Terminal
-
331710000244 Tube ProtectorTube Protector
-
332278001326 Fuse Holder CapFuse Holder Cap
-
333278001325 Fuse HolderFuse Holder
-
334710000081 Female Housing (6 circuits)Female Housing (6 circuits)
-
336710000115 Terminal EnveloppeTerminal Enveloppe
-
337710000113 Female TerminalFemale Terminal
-
338710000114 Female TerminalFemale Terminal
-
342710000190 Housing TabHousing Tab
-
343710000191 Lock (6 circuits)Lock (6 circuits)
-
394710000275 Housing Tab (4 circuits)Housing Tab (4 circuits)
-
395710000274 Female TerminalFemale Terminal
-
396710000272 Housing Tab (4 circuits)Housing Tab (4 circuits)
-
397710000273 Lock (4 circuits)Lock (4 circuits)
-
416710000289 Spade TerminalSpade Terminal
-
456278000805 CushionCushion
