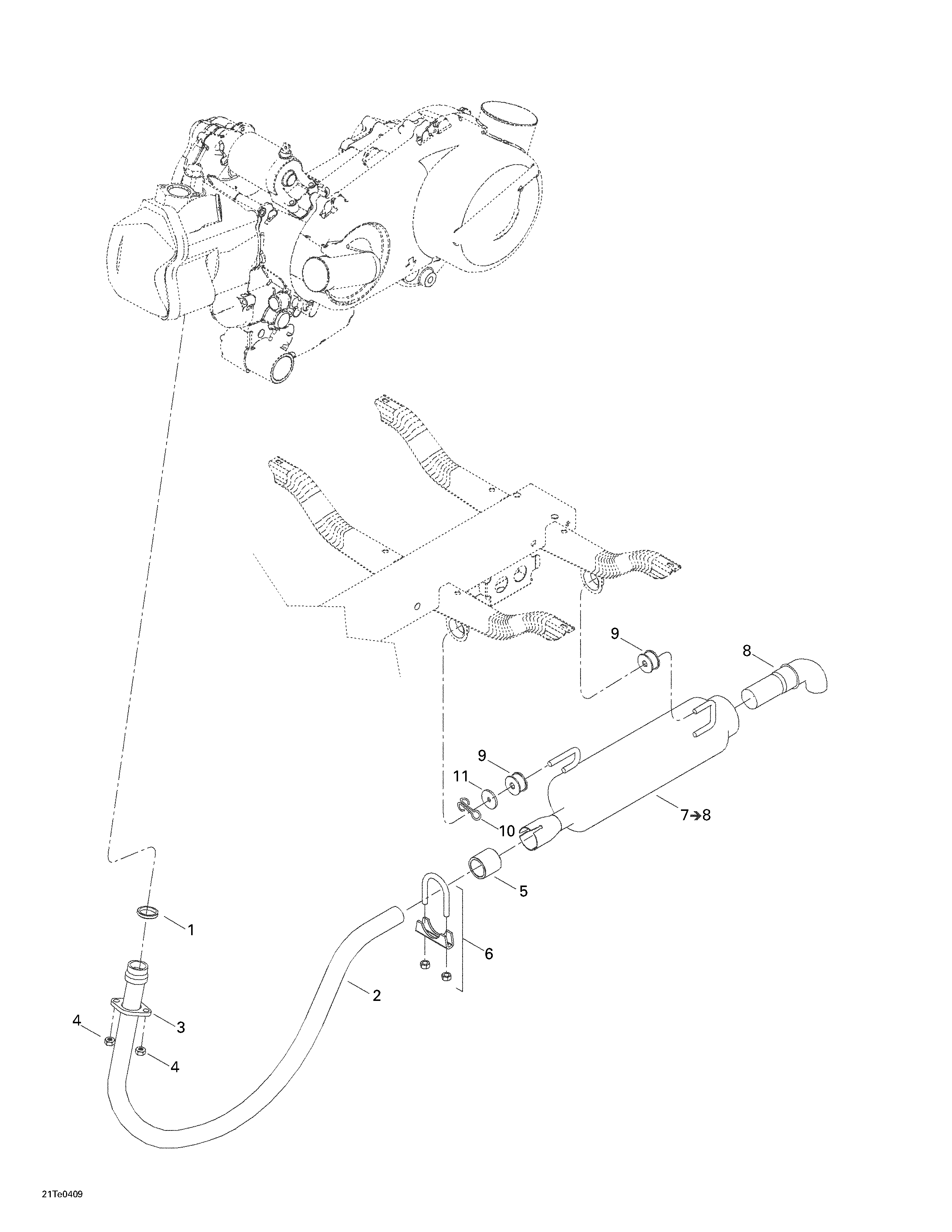

01- Exhaust System для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1707600239 Pipe GasketPipe Gasket
-
2707600199 Tuned PipeTuned Pipe
-
3707600174 Seal RingSeal Ring
-
4233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5707600175 Pipe GasketPipe Gasket
-
6293650148 U'' Clamp```U'' Clamp```
-
7707600161 Tuned Pipe Ass'y. Includes 7 - 8.Tuned Pipe Ass'y. Includes 7 - 8.
-
8707600200 Tube EndTube End
-
9707600012 RubberRubber
-
10211400017 Cotter PinCotter Pin
-
11250200035 Flat WasherFlat Washer
