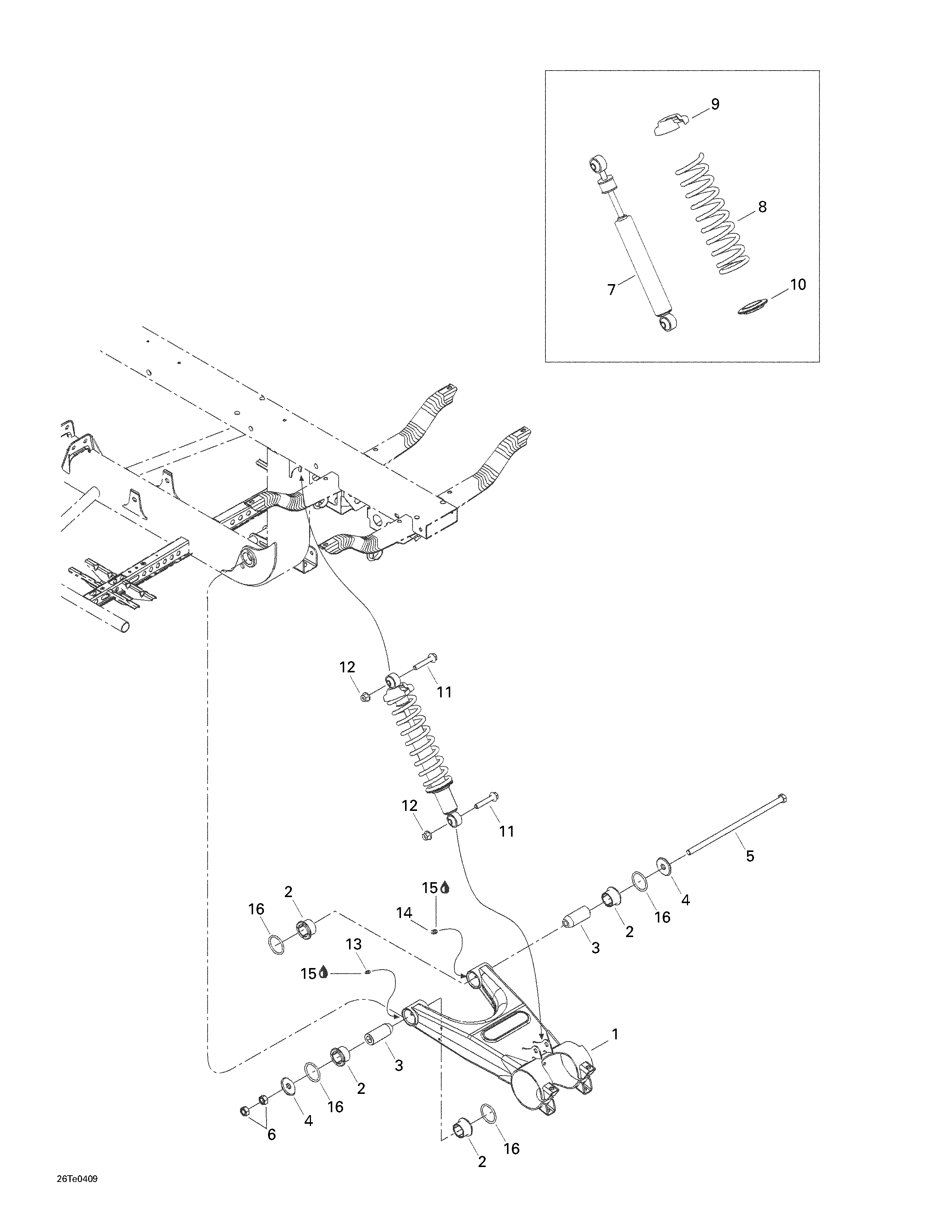

08- Rear Suspension для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1706000145 Swing ArmSwing Arm
-
2706000158 CushionCushion
-
3706000138 Inner BushingInner Bushing
-
4706000139 Thrust WasherThrust Washer
-
5250000066 Hex. Screw M12 x 300Hex. Screw M12 x 300
-
6232021486 Hex. Nut M12Hex. Nut M12
-
7706000140 Rear ShockRear Shock
-
8706000154 Rear SpringRear Spring
-
9503140600 Spring StopperSpring Stopper
-
10706000197 Spring SeatSpring Seat
-
11207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
12233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
13408200700 Grease FittingGrease Fitting
-
14408200600 Grease FittingGrease Fitting
-
15293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
16293300087 O-RingO-Ring
