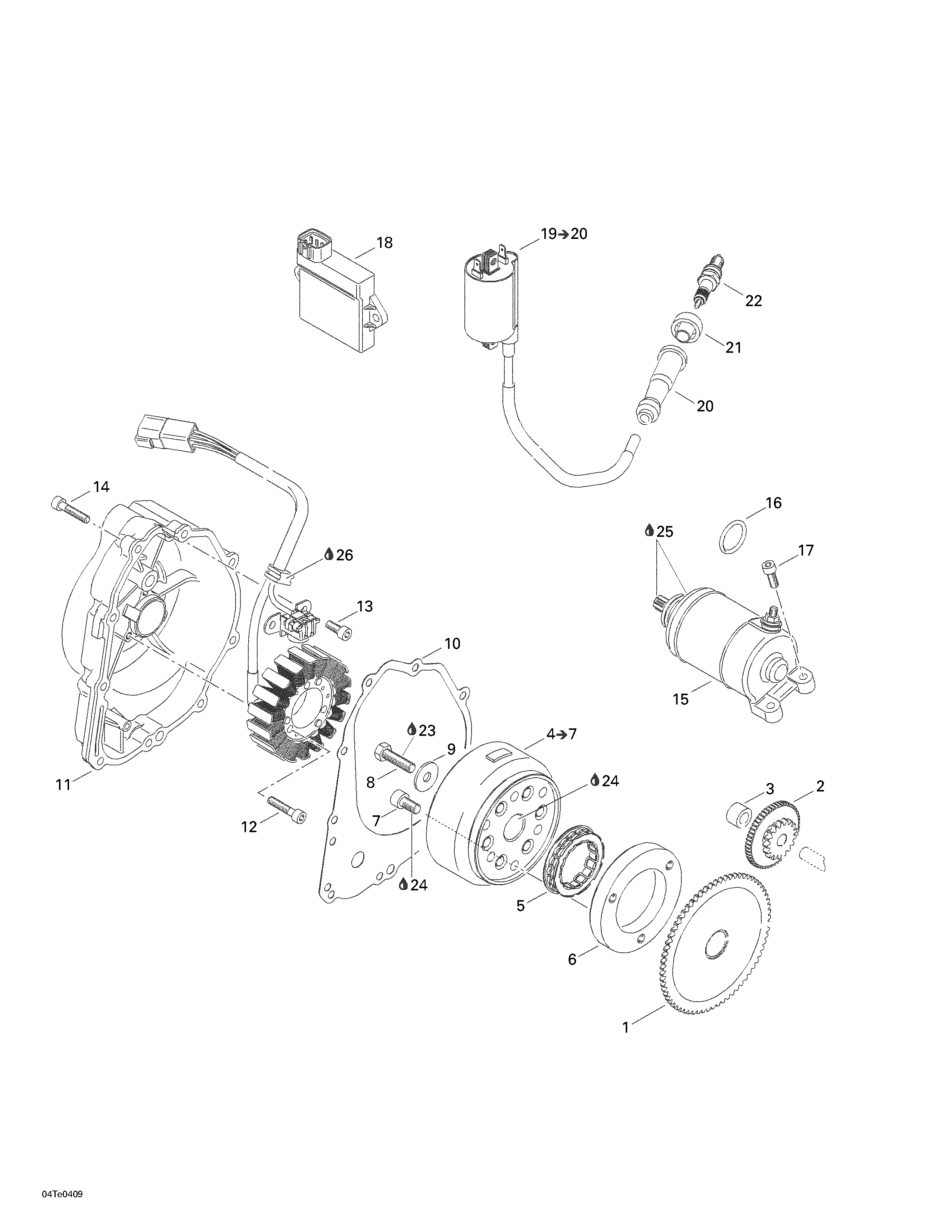

03- Magneto для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1420635150 Free Wheel Gear 67 Ass'yFree Wheel Gear 67 Ass'y
-
2420634460 Idle Gear 54/17TIdle Gear 54/17T
-
3420247930 Distance SleeveDistance Sleeve
-
4420295558 AC Generator. Includes 4 - 7.AC Generator. Includes 4 - 7.
-
5420259495 Sprag ClutchSprag Clutch
-
6420259480 Sprag Clutch HousingSprag Clutch Housing
-
7205081644 Socket Screw M8 x 16Socket Screw M8 x 16
-
8420940485 Screw M8 x 30Screw M8 x 30
-
9420227937 WasherWasher
-
10420650195 GasketGasket
-
11420610650 Ignition CoverIgnition Cover
-
12205063044 Socket Screw M6 x 30Socket Screw M6 x 30
-
13420241236 Socket Screw M6 x 16Socket Screw M6 x 16
-
14205063044 Socket Screw M6 x 30Socket Screw M6 x 30
-
15420296390 Electric StarterElectric Starter
-
15420266300 Brush Kit (Not shown)Brush Kit (Not shown)
-
16420250140 O-RingO-Ring
-
17205062044 Socket Screw M6 x 20Socket Screw M6 x 20
-
18420265634 Electronic BoxElectronic Box
-
19420265418 Ignition Coil Ass'y. Includes 19 - 20.Ignition Coil Ass'y. Includes 19 - 20.
-
20420265242 Spark Plug ConnectorSpark Plug Connector
-
21420660430 Rubber GrommetRubber Grommet
-
22707000306 Spark Plug NGK CR8ESpark Plug NGK CR8E
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413711400 Loctite 648, 10mlLoctite 648, 10ml
-
25293800070 Loctite 767, Antiseize Lubricant, 8ozLoctite 767, Antiseize Lubricant, 8oz
-
26296000309 Sealant Silicone, ClearSealant Silicone, Clear
