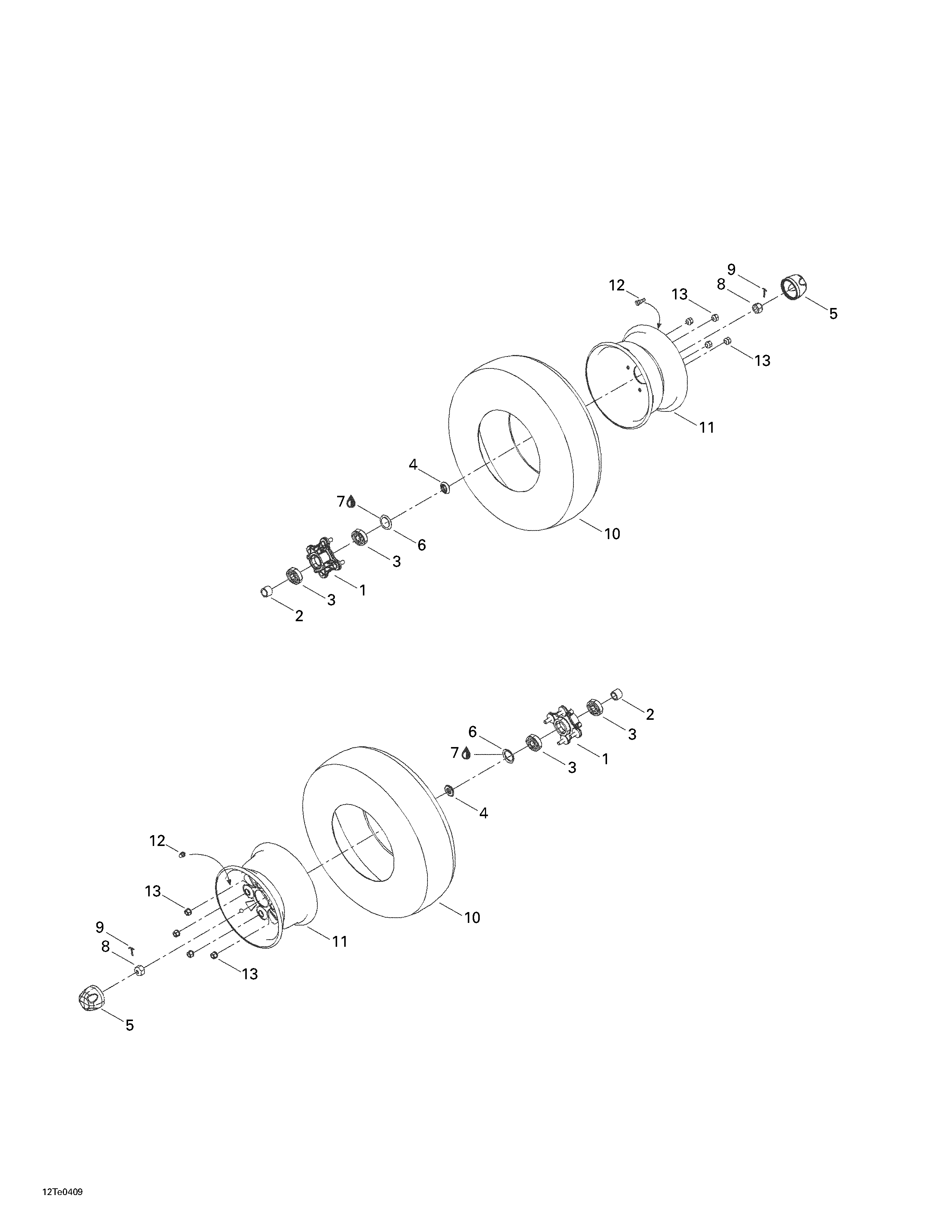

05- Drive System, Front для BRP Rally 175 - 2004
![](/wa-data/public/shop/sheme/bombardier/atv/0a8e2af9-7816-4e2f-b3a8-151067fbed29.png)
-
№АртикулНазвание
-
1705400233 Wheel HubWheel Hub
-
2705400113 Inside BushingInside Bushing
-
3293350049 Ball BearingBall Bearing
-
4705400235 Outside BushingOutside Bushing
-
5705400012 Wheel CapWheel Cap
-
6293250094 Oil SealOil Seal
-
7293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
8232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
9250400016 Cotter PinCotter Pin
-
10705400114 Front TireFront Tire
-
11705400242 Front RimFront Rim
-
12705400193 Rim ValveRim Valve
-
13250100042 Hex. Nut M10Hex. Nut M10
