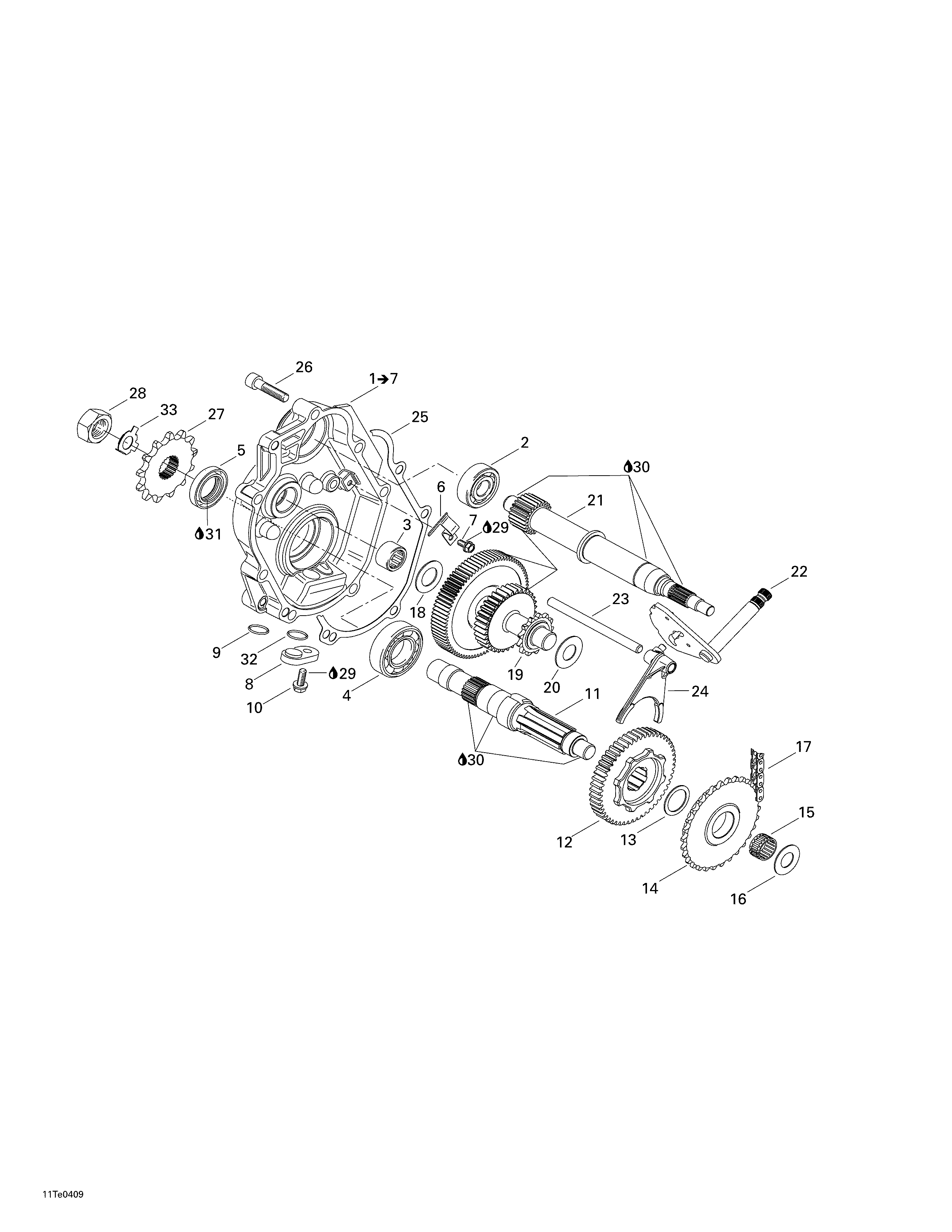

05- Gear Shift для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1420610361 Gear Box Cover Ass'y. Includes 1 - 7.Gear Box Cover Ass'y. Includes 1 - 7.
-
2420232293 Ball BearingBall Bearing
-
3420632960 Needle BushingNeedle Bushing
-
4420232768 Ball BearingBall Bearing
-
5420230395 Oil SealOil Seal
-
6420238265 SpringSpring
-
7420941935 Taptite Screw M5 x 12Taptite Screw M5 x 12
-
8420627805 CoverCover
-
9420630600 O-RingO-Ring
-
10420240385 Taptite Screw M6 x 12Taptite Screw M6 x 12
-
11420220930 Driven ShaftDriven Shaft
-
12420635250 Shift Gear 51TShift Gear 51T
-
13420927470 Thrust WasherThrust Washer
-
14420236550 Sprocket 30TSprocket 30T
-
15420232520 Needle BushingNeedle Bushing
-
16420927055 Thrust WasherThrust Washer
-
17420898070 ChainChain
-
18420627810 Thrust WasherThrust Washer
-
19420220945 Intermediate ShaftIntermediate Shaft
-
20420227725 Thrust WasherThrust Washer
-
21420220920 Drive Pulley Shaft 24TDrive Pulley Shaft 24T
-
22420220955 Shift Shaft Ass'yShift Shaft Ass'y
-
23420258780 Guide PinGuide Pin
-
24420257210 Shift ForkShift Fork
-
25420630141 GasketGasket
-
26420840681 Allen Screw M8 x 40Allen Screw M8 x 40
-
27420236980 Sprocket 13TSprocket 13T
-
28420242651 Hex. Nut M20Hex. Nut M20
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
31293550014 Grease, Super LubeGrease, Super Lube
-
32420430600 O'RingO'Ring
-
33707000215 Tab WasherTab Washer
