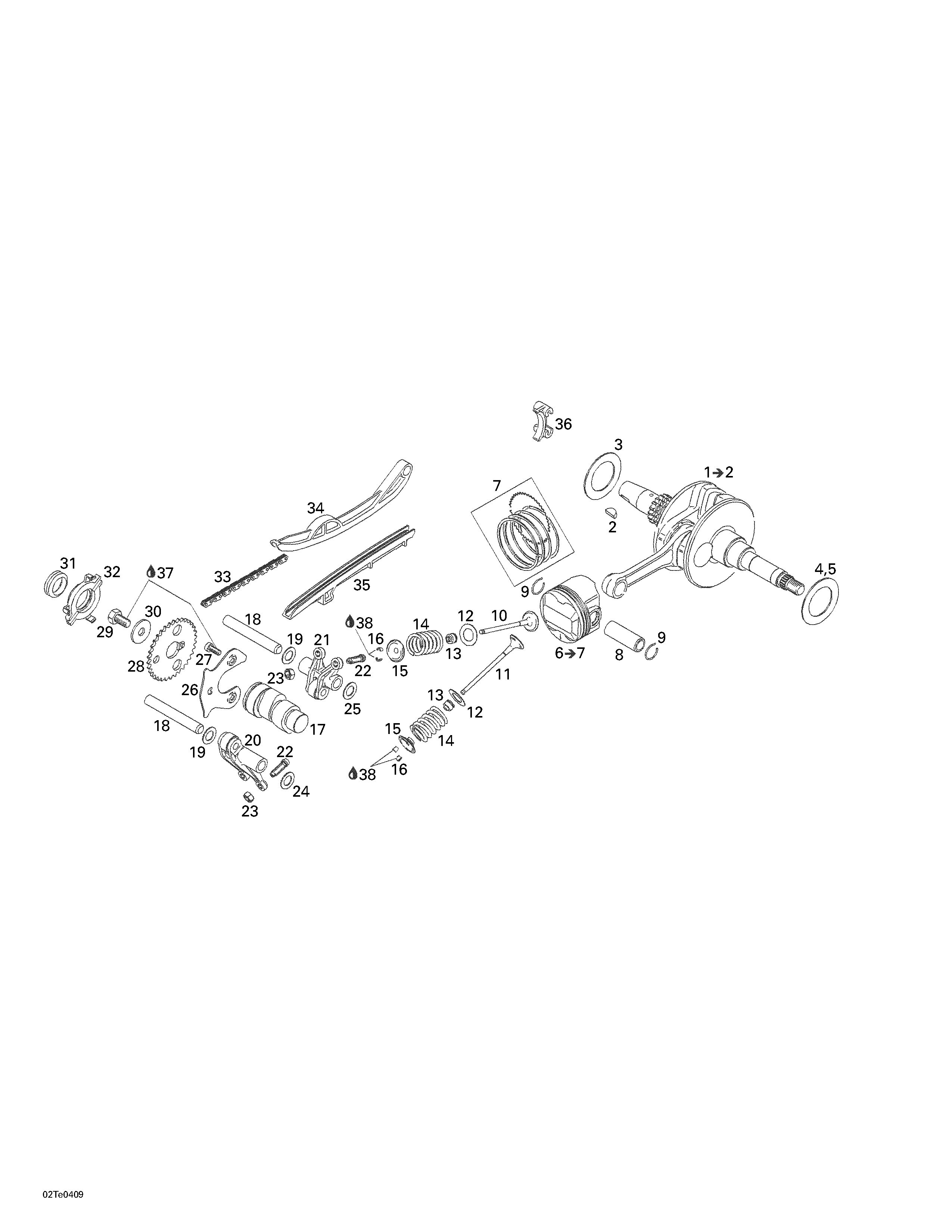

01- Crankshaft And Pistons для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1420296420 Crankshaft Ass'y. Includes 1 - 2.Crankshaft Ass'y. Includes 1 - 2.
-
2420246570 Woodroff KeyWoodroff Key
-
3420627110 Thrust WasherThrust Washer
-
4420627111 Thrust WasherThrust Washer
-
5420627112 Thrust WasherThrust Washer
-
6420296700 Piston Ass'y. Includes 6 - 7.Piston Ass'y. Includes 6 - 7.
-
7420296704 Piston Ring SetPiston Ring Set
-
8420216210 Piston PinPiston Pin
-
9420245805 Circlip PistonCirclip Piston
-
10420253880 Inlet Valve 20 mmInlet Valve 20 mm
-
11420253892 Exhaust Valve 18 mmExhaust Valve 18 mm
-
12420227451 Thrust WasherThrust Washer
-
13420650120 Seal ValveSeal Valve
-
14420239360 Valve SpringValve Spring
-
15420253902 Valve Spring RetainerValve Spring Retainer
-
16420253840 Valve CotterValve Cotter
-
17420220315 CamshaftCamshaft
-
18420229410 PinPin
-
19420627100 Thrust WasherThrust Washer
-
20420253878 Rocket Arm ExhaustRocket Arm Exhaust
-
21420253868 Rocket Arm InletRocket Arm Inlet
-
22420241335 Adjustment ScrewAdjustment Screw
-
23420242910 Hex. Nut M6Hex. Nut M6
-
24420627100 Thrust WasherThrust Washer
-
25420827590 Thrust WasherThrust Washer
-
26420251040 Retaining PlateRetaining Plate
-
27420241841 Socket Screw M5 x 12Socket Screw M5 x 12
-
28420634380 Timing Gear 34TTiming Gear 34T
-
29207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
30420227937 Plain WasherPlain Washer
-
31420630125 V-RingV-Ring
-
32420660180 CoverCover
-
33420297932 Camshaft ChainCamshaft Chain
-
34420236270 Chain Tension GuideChain Tension Guide
-
35420236280 Chain GuideChain Guide
-
36420236350 Chain GuideChain Guide
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38293800070 Loctite 767, Antiseize Lubricant, 8ozLoctite 767, Antiseize Lubricant, 8oz
