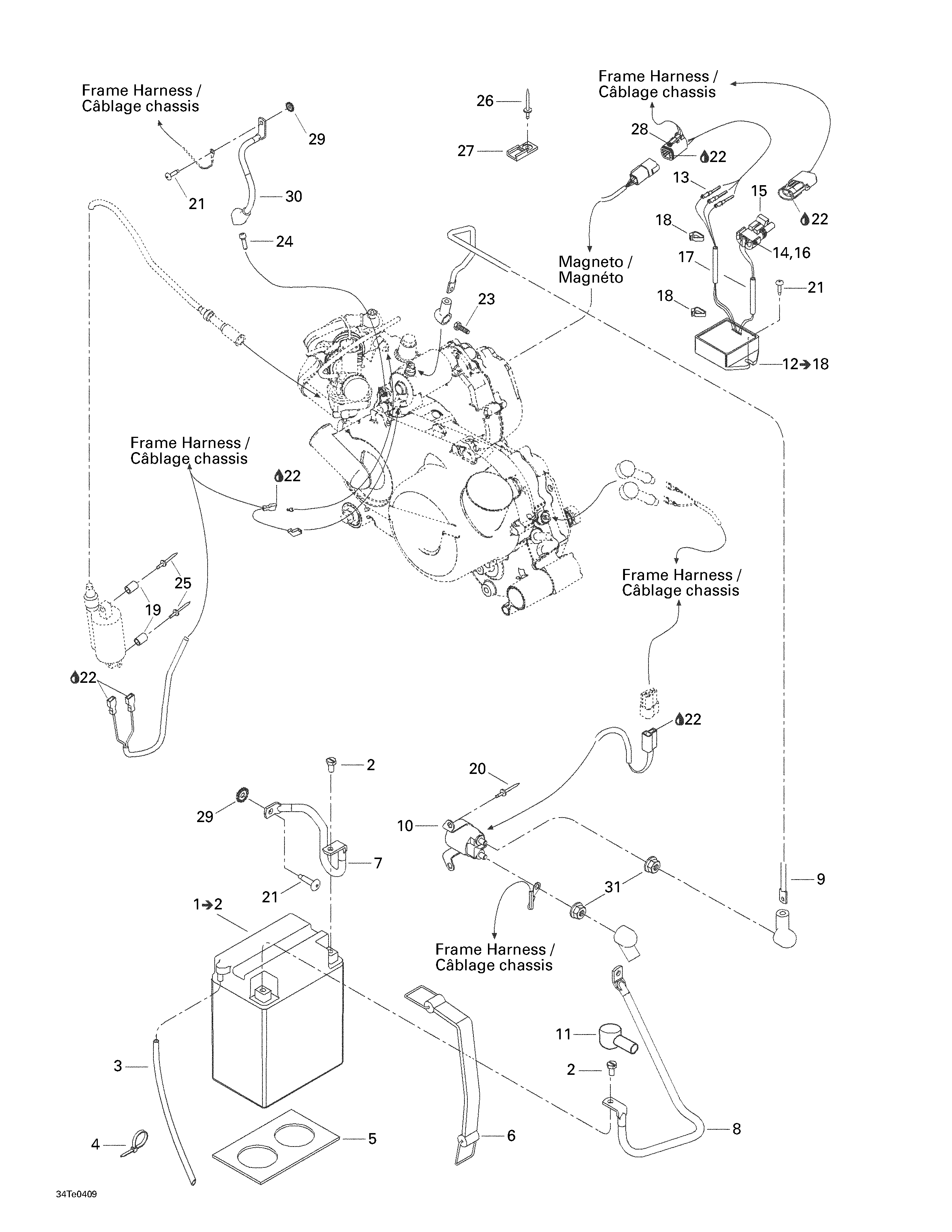

10- Battery And Electrical Accessories для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1710000227 Battery (13 AmpSres). Includes 1 - 2.Battery (13 AmpSres). Includes 1 - 2.
-
2703500179 Battery Fastener KitBattery Fastener Kit
-
3415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
4414115200 Tie RapTie Rap
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
5710000241 Rubber ProtectorRubber Protector
-
6515176044 Battery StrapBattery Strap
-
9710000232 Positive CablePositive Cable
-
10515176011 Starter RelayStarter Relay
-
11710000319 Protector CapProtector Cap
-
12710000234 Voltage regulator. Includes 12 - 18.Voltage regulator. Includes 12 - 18.
-
13278001661 Female terminalFemale terminal
-
14409007300 Female terminalFemale terminal
-
15278000220 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
16278000218 Wire SealWire Seal
-
17409901300 TubingTubing
-
18293750001 Tie RapTie Rap
-
19293900046 SpacerSpacer
-
20390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
21250000081 Torx Screw M6 x 25Torx Screw M6 x 25
-
22293550004 Dielectric Grease, 150gDielectric Grease, 150g
-
23210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
24205062044 Socket Screw M6 x 20Socket Screw M6 x 20
-
25293150093 Pop Rivet 3/16''Pop Rivet 3/16''
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27270000141 ClipClip
-
28278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
29234461608 Serrated Lock Washer M6Serrated Lock Washer M6
-
30710000461 Ground CableGround Cable
-
31232561600 Elastic Stop Nut M6Elastic Stop Nut M6
