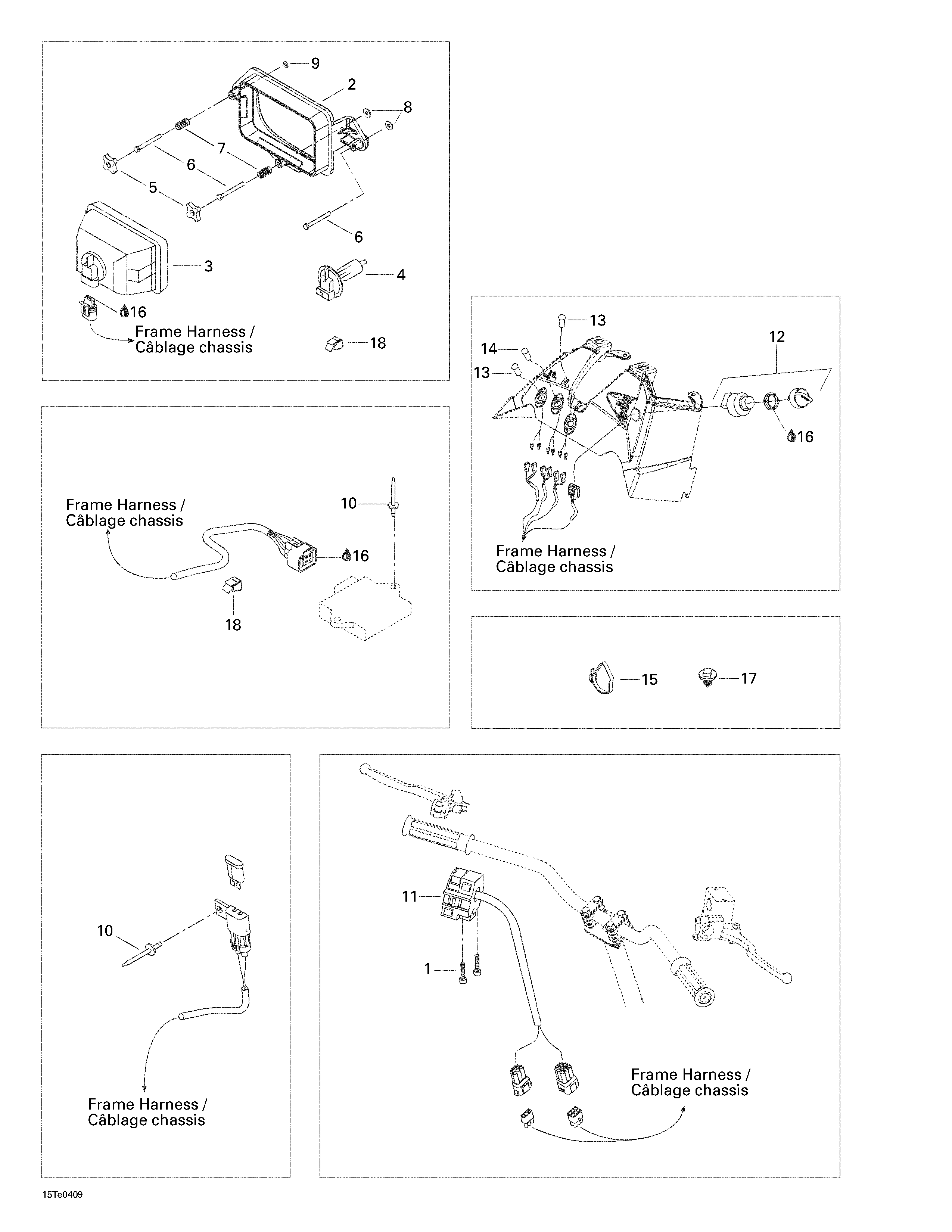

10- Electrical Accessories для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1205453546 Socket Screw M5 x 35Socket Screw M5 x 35
-
2710000236 R.H. SupportR.H. Support
-
710000277 LH SupportLH Support
-
3705000284 Lamp HousingLamp Housing
-
4710000176 BulbBulb
-
5572106600 HandleHandle
-
6250000008 Hex. Screw K40 x 40Hex. Screw K40 x 40
-
7710000285 SpringSpring
-
8234042600 Flat WasherFlat Washer
-
9234040600 Flat WasherFlat Washer
-
10390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
11710000359 HandleHandle
-
12710000238 Ignition SwitchIgnition Switch
-
13710000239 Pilot LampPilot Lamp
-
14710000240 Pilot LampPilot Lamp
-
15414115200 Tie RapTie Rap
-
16293550004 Dielectric Grease, 150gDielectric Grease, 150g
-
17293730018 Mount DartMount Dart
-
18414227300 ClipClip
