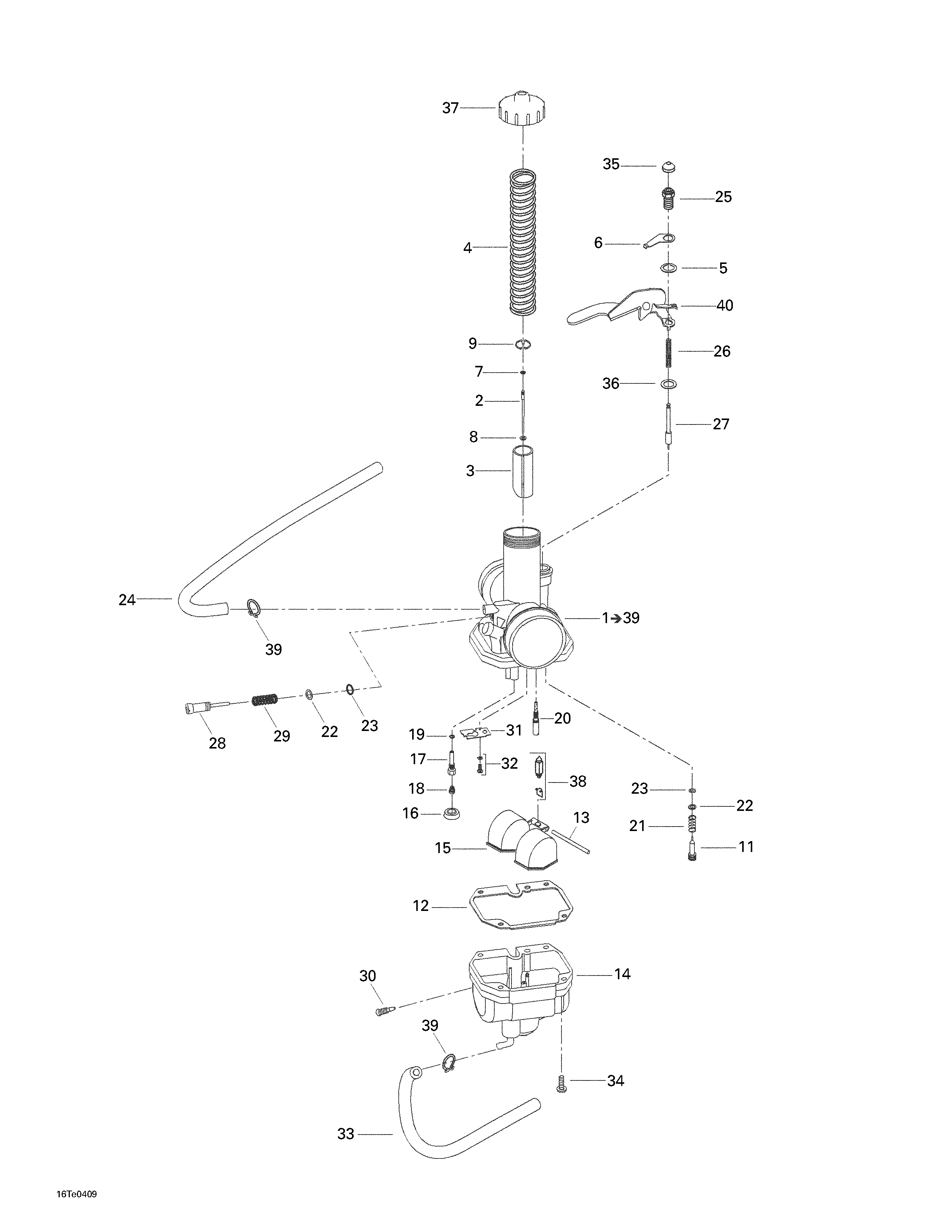

02- Carburetor для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1707200169 Carburator Ass'y VM24-502. Includes 1 - 39.Carburator Ass'y VM24-502. Includes 1 - 39.
-
2707200228 Jet NeedleJet Needle
-
3707200201 Valve PistonValve Piston
-
4707200202 SpringSpring
-
5707200203 WasherWasher
-
6404108800 Spring PlateSpring Plate
-
7404152400 E-RingE-Ring
-
8404117000 PackingPacking
-
9707200204 ClipClip
-
10707200195 Jet Needle (Not shown)Jet Needle (Not shown)
-
11707200205 AdjusterAdjuster
-
12707200206 GasketGasket
-
13404123400 PinPin
-
15707200207 Float Ass'yFloat Ass'y
-
16707200208 HolderHolder
-
17707200225 Jet HolderJet Holder
-
18707200229 Main Jet 105.0Main Jet 105.0
-
19270500119 O-RingO-Ring
-
20707200227 Pilot Jet 22.5Pilot Jet 22.5
-
21707200017 SpringSpring
-
22707200018 WasherWasher
-
23404139900 O-RingO-Ring
-
24707200212 HoseHose
-
25707200213 Retainer GuideRetainer Guide
-
26404103500 SpringSpring
-
27707200214 Plunger Ass'yPlunger Ass'y
-
28707200215 Adjuster ScrewAdjuster Screw
-
29707200216 SpringSpring
-
30707200024 ScrewScrew
-
31707200217 PlatePlate
-
32404121300 Screw with WasherScrew with Washer
-
33707200218 HoseHose
-
34404901400 ScrewScrew
-
35404120100 Rubber CapRubber Cap
-
36707200219 WasherWasher
-
37707200220 Mixing CapMixing Cap
-
38707200221 Needle Valve 1.8Needle Valve 1.8
-
39707200222 ClipClip
-
40707200223 Lever Ass'yLever Ass'y
