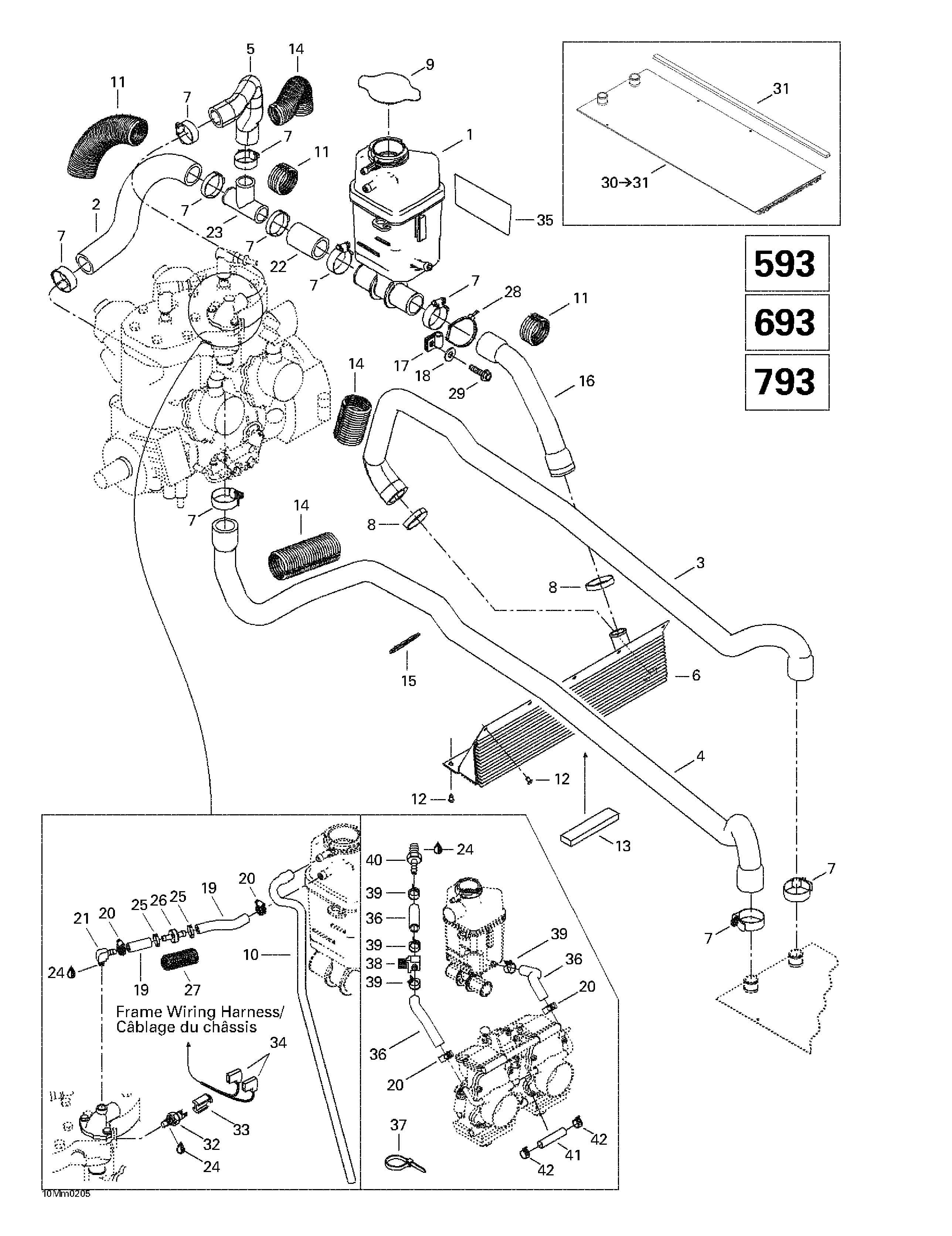

01- Cooling System 600,700,800 для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1509000167 Tank Coolant. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tank Coolant. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
2509000141 Engine Inlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Engine Inlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
3509000003 Radiator Inlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Radiator Inlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
4509000145 Radiator Outlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Radiator Outlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
5509000142 Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
6509000146 Front Radiator. Grand Touring 600. Grand Touring 700. Grand Touring 800.Front Radiator. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
7408800400 Tridon Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tridon Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
8509000045 Oetiker Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.Oetiker Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
9414684700 Pressure Cap. Grand Touring 600. Grand Touring 700. Grand Touring 800.Pressure Cap. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
10415110000 Polyurethane Hose 5.2 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.Polyurethane Hose 5.2 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
11415084700 Protective Shield. Grand Touring 600. Grand Touring 700. Grand Touring 800.Protective Shield. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
12390402200 Pop Rivet 3/16. Grand Touring 600. Grand Touring 700. Grand Touring 800.Pop Rivet 3/16. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
13293200003 Seal. Grand Touring 600. Grand Touring 700. Grand Touring 800.Seal. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
14409902200 Tubing. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tubing. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
15293750008 Tie Rap 350 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tie Rap 350 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
16509000144 Radiator Outlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Radiator Outlet Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
17415052400 Attache. Grand Touring 600. Grand Touring 700. Grand Touring 800.Attache. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
18391301600 Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.Washer. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
19509000093 Hose 8 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.Hose 8 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
20293650128 Tridon Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tridon Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
21293700020 Elbow Fitting 90 Deg. Grand Touring 600. Grand Touring 700. Grand Touring 800.Elbow Fitting 90 Deg. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
22509000143 Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
23414619900 T Fitting. Grand Touring 600. Grand Touring 700. Grand Touring 800.T Fitting. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
24293800018 Loctite 592, Pipe Sealant, 50 ml. Grand Touring 600. Grand Touring 700. Grand Touring 800.Loctite 592, Pipe Sealant, 50 ml. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
25293650053 Crimp Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.Crimp Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
26509000153 Check Valve. Grand Touring 600. Grand Touring 700. Grand Touring 800.Check Valve. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
27415080000 Tubing 16 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tubing 16 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
28509000165 Tie Rap. Grand Touring 600. Grand Touring 700. Grand Touring 800.Tie Rap. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
29210252040 Hex. Flanged Screw M5. Grand Touring 600. Grand Touring 700. Grand Touring 800.Hex. Flanged Screw M5. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
30518322905 Rear Radiator. Includes 30 - 31. Grand Touring 600. Grand Touring 700. Grand Touring 800.Rear Radiator. Includes 30 - 31. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
31518321656 Radiator Protector. Grand Touring 600. Grand Touring 700. Grand Touring 800.Radiator Protector. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
32512047000 Temperature Sensor. GT 600 Sport, GT 700 SportTemperature Sensor. GT 600 Sport, GT 700 Sport
-
414728700 Temperature Sensor. GT 600 SE / GT 600 GS / GT 700 GS / GT 800 SETemperature Sensor. GT 600 SE / GT 600 GS / GT 700 GS / GT 800 SE
-
33515175297 Connector Plug. Grand Touring 600. Grand Touring 700. Grand Touring 800.Connector Plug. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
34409010300 Female Terminal. Grand Touring 600. Grand Touring 700. Grand Touring 800.Female Terminal. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
35514053399 Reflective Sheet. Grand Touring 600. Grand Touring 700. Grand Touring 800.Reflective Sheet. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
36509000093 Hose 8 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.Hose 8 mm. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
37414115200 Tie Rap (With >). Grand Touring 600. Grand Touring 700. Grand Touring 800.Tie Rap (With >). Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
38512059324 Valve 5/16''. Grand Touring 600. Grand Touring 700. Grand Touring 800.Valve 5/16''. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
39414655700 Spring Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.Spring Clamp. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
40293710082 Straight Fitting. Grand Touring 600. Grand Touring 700. Grand Touring 800.Straight Fitting. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
41404161956 Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.Hose. Grand Touring 600. Grand Touring 700. Grand Touring 800.
-
42404161957 Clip. Grand Touring 600. Grand Touring 700. Grand Touring 800.Clip. Grand Touring 600. Grand Touring 700. Grand Touring 800.
