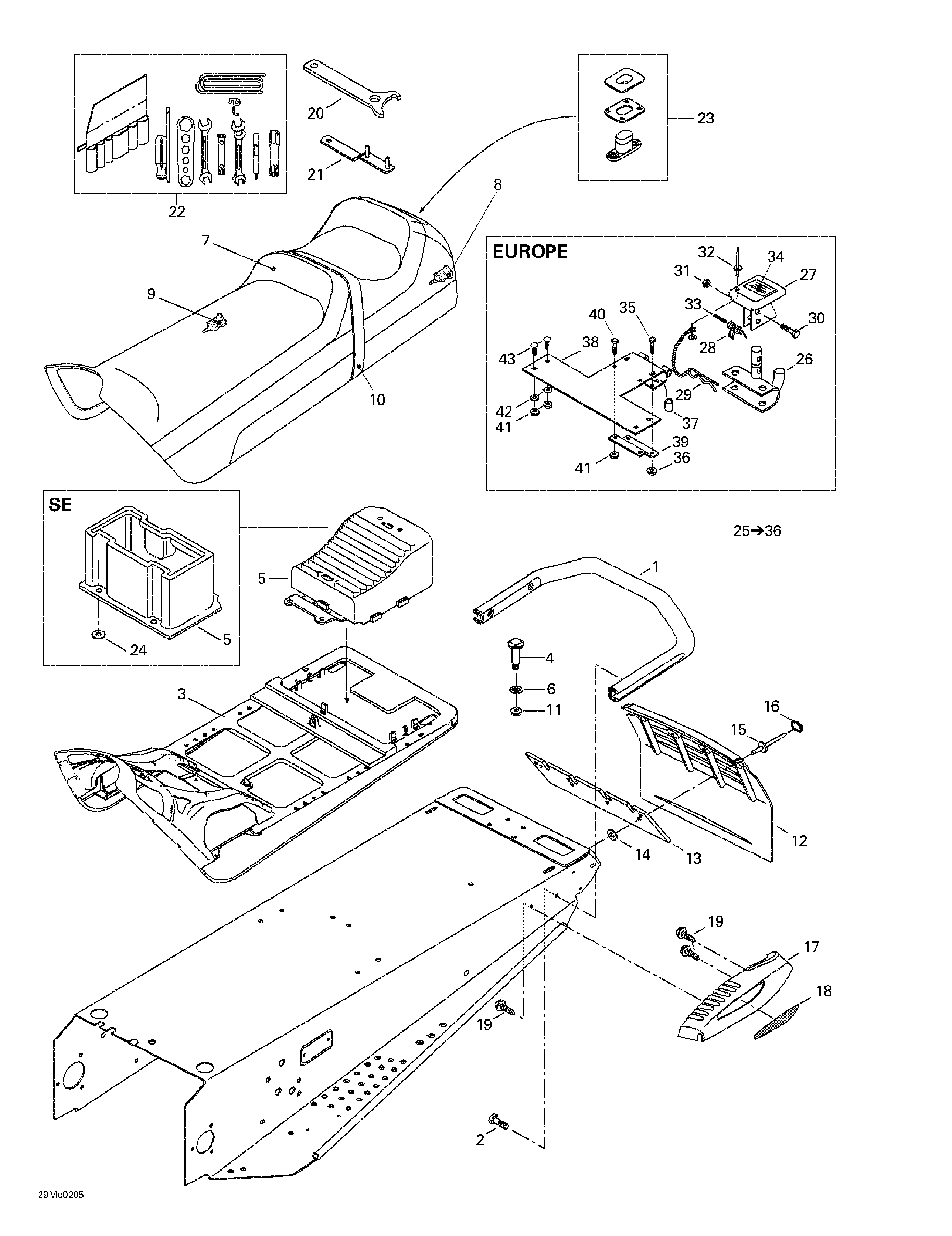

09- Seat, Accessories, Hitch для BRP Ski-Doo Grand Touring 500/600/700/800 - 2002
-
№АртикулНазвание
-
1517272510 Rear BumperRear Bumper
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3510003739 Sub-Seat. Grand Touring 500. Grand Touring 600. Grand Touring 700.Sub-Seat. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
510003972 Sub-Seat (SE). Grand Touring 600. Grand Touring 800.Sub-Seat (SE). Grand Touring 600. Grand Touring 800.
-
4732601221 > Bolt> Bolt
-
5510003751 Rear Trunk. Grand Touring 500. Grand Touring 600. Grand Touring 700.Rear Trunk. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
572106300 Rear Trunk (SE). Grand Touring 600. Grand Touring 800.Rear Trunk (SE). Grand Touring 600. Grand Touring 800.
-
6732610072 Push NutPush Nut
-
7510003965 Seat Cover. Grand Touring 500. Grand Touring 600. Grand Touring 700.Seat Cover. Grand Touring 500. Grand Touring 600. Grand Touring 700.
-
510003969 Seat Cover (SE SB). Grand Touring 600. Grand Touring 800.Seat Cover (SE SB). Grand Touring 600. Grand Touring 800.
-
510003995 Seat Cover (SE). Grand Touring 600. Grand Touring 800.Seat Cover (SE). Grand Touring 600. Grand Touring 800.
-
510004031 Seat Cover (GS Olympic). Grand Touring 700.Seat Cover (GS Olympic). Grand Touring 700.
-
8510003741 Seat Foam (Side)Seat Foam (Side)
-
9510003752 Seat Foam (Top)Seat Foam (Top)
-
510003982 Seat Foam (Top) (SE). Grand Touring 600. Grand Touring 800.Seat Foam (Top) (SE). Grand Touring 600. Grand Touring 800.
-
10510003753 Seat BeltSeat Belt
-
11233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
12520000229 Snow Guard (Full Moon)Snow Guard (Full Moon)
-
520000228 Snow Guard (Full Moon) (Europe). Grand Touring 500. Grand Touring 600. Grand Touring 800.Snow Guard (Full Moon) (Europe). Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
572103804 Snow Guard (Yellow) (Olympic). Grand Touring 700.Snow Guard (Yellow) (Olympic). Grand Touring 700.
-
13572108200 ReinforcementReinforcement
-
14517225900 WasherWasher
-
15293150087 Pop Rivet (Black)Pop Rivet (Black)
-
16415073300 CapCap
-
17861780100 R.H. MouldingR.H. Moulding
-
861780200 L.H. MouldingL.H. Moulding
-
18516000237 R.H. ReflectorR.H. Reflector
-
516000241 R.H. Reflector (Europe)R.H. Reflector (Europe)
-
516000238 LH ReflectorLH Reflector
-
516000242 L.H. Reflector (Europe)L.H. Reflector (Europe)
-
19243141640 Hex. Flanged ScrewHex. Flanged Screw
-
20529032900 Wrench-AdjusterWrench-Adjuster
-
21520000126 Wrench-AdjusterWrench-Adjuster
-
22529035596 Tool KitTool Kit
-
23414728000 Buckle-SeatBuckle-Seat
-
24517297900 Flat Washer (SE). Grand Touring 600. Grand Touring 800.Flat Washer (SE). Grand Touring 600. Grand Touring 800.
-
25861778700 Hitch Ass'y. Includes 25 - 36. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hitch Ass'y. Includes 25 - 36. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
26517199300 Hitch. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hitch. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
27517152700 Hitch Protector. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hitch Protector. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
28517152800 Spring. Grand Touring 500. Grand Touring 600. Grand Touring 800.Spring. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
29114045200 Hair Pin. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hair Pin. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
30207063044 Hex. Screw M6 x 30. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hex. Screw M6 x 30. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
31232561414 Elastic Stop Nut M6. Grand Touring 500. Grand Touring 600. Grand Touring 800.Elastic Stop Nut M6. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
32390409400 Pop Rivet. Grand Touring 500. Grand Touring 600. Grand Touring 800.Pop Rivet. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
33732804000 Pin Spring. Grand Touring 500. Grand Touring 600. Grand Touring 800.Pin Spring. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
34516001243 Security Label. Grand Touring 500. Grand Touring 600. Grand Touring 800.Security Label. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
35207065044 Hex. Screw M6 x 50. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hex. Screw M6 x 50. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
36233261414 Elastic Flanged Stop Nut M6. Grand Touring 500. Grand Touring 600. Grand Touring 800.Elastic Flanged Stop Nut M6. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
37517191700 Spacer. Grand Touring 500. Grand Touring 600. Grand Touring 800.Spacer. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
38511000030 Fixation. Grand Touring 500. Grand Touring 600. Grand Touring 800.Fixation. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
39511000022 Reinforcement. Grand Touring 500. Grand Touring 600. Grand Touring 800.Reinforcement. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
40207162044 Hex. Screw M6 x 18. Grand Touring 500. Grand Touring 600. Grand Touring 800.Hex. Screw M6 x 18. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
41233261414 Elastic Flanged Stop Nut M6. Grand Touring 500. Grand Touring 600. Grand Touring 800.Elastic Flanged Stop Nut M6. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
42224061201 Flat Washer. Grand Touring 500. Grand Touring 600. Grand Touring 800.Flat Washer. Grand Touring 500. Grand Touring 600. Grand Touring 800.
-
43207762044 Carriage Bolt M6 x 20. Grand Touring 500. Grand Touring 600. Grand Touring 800.Carriage Bolt M6 x 20. Grand Touring 500. Grand Touring 600. Grand Touring 800.
